Toyota Sprinter carib AE111 REAR AXLE SHAFT & HUB

Part #	Description	Period	Qty
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02047	AE11#	04/1997 - 07/2002	4
90942-02047	AE11#	08/1995 - 04/1997	4
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02047	AE11#	08/1995 - 04/1997	4
90942-02047	AE11#	04/1997 - 07/2002	4
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-20250	AE111..ROSSO,STOUR,ZTOUR	04/1997 - 07/2002	2
42431-20250	AE111..STOUR,ZTOUR	05/1996 - 04/1997	2
42409C - BOLT (FOR REAR AXLE BEARING RH)
90105-10404	AE111	04/1997 - 07/2002	4
90105-10404	AE111	05/1996 - 04/1997	4
42409D - BOLT (FOR REAR AXLE BEARING LH)
90105-10404	AE111	04/1997 - 07/2002	4
90105-10404	AE111	05/1996 - 04/1997	4
42409E - RING, O (FOR REAR AXLE BEARING RH)
90301-61002	AE111	04/1997 - 07/2002	1
90301-61002	AE111	05/1996 - 04/1997	1
42409F - RING, O (FOR REAR AXLE BEARING LH)
90301-61002	AE111	04/1997 - 07/2002	1
90301-61002	AE111	05/1996 - 04/1997	1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-12030	AE111..STOUR,ZTOUR	05/1996 - 04/1997	1
42450-12030	AE111..ROSSO,STOUR,ZTOUR	04/1997 - 07/2002	1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-12030	AE111..ROSSO,STOUR,ZTOUR	04/1997 - 07/2002	1
42450-12030	AE111..STOUR,ZTOUR	05/1996 - 04/1997	1

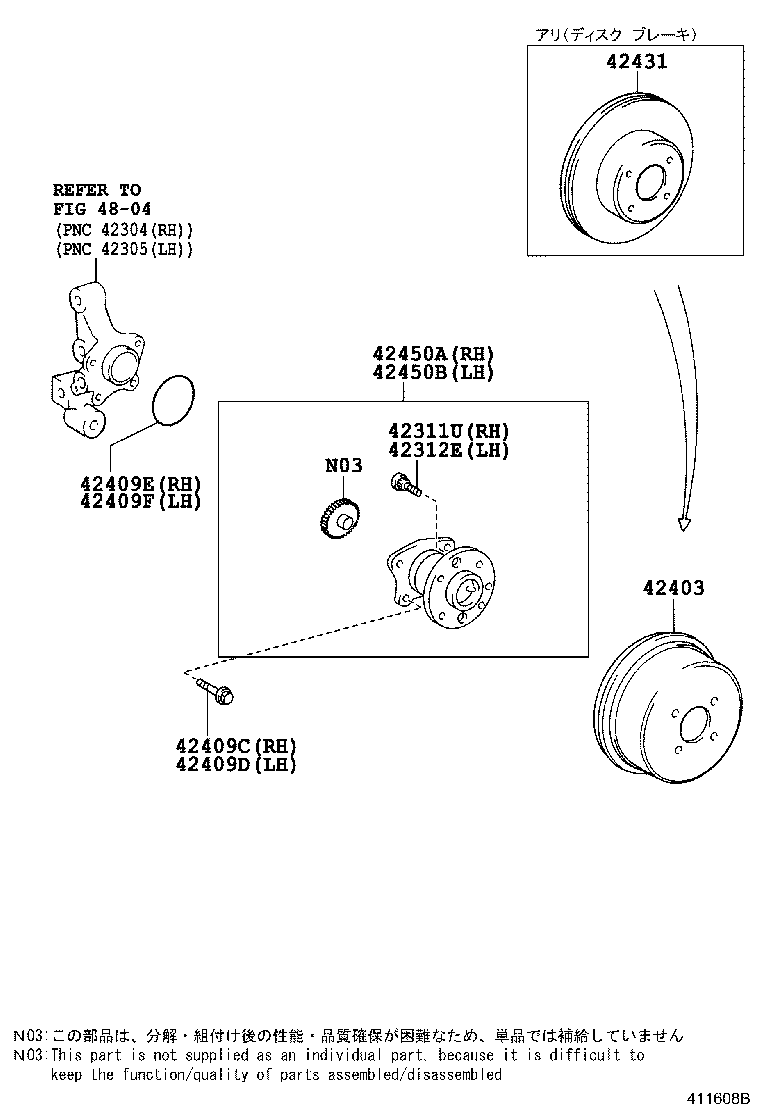

Linked diagrams
4804

AE111G-CWMGK (1996)
