AE111G-CWMDK (1996)
Toyota Sprinter Carib

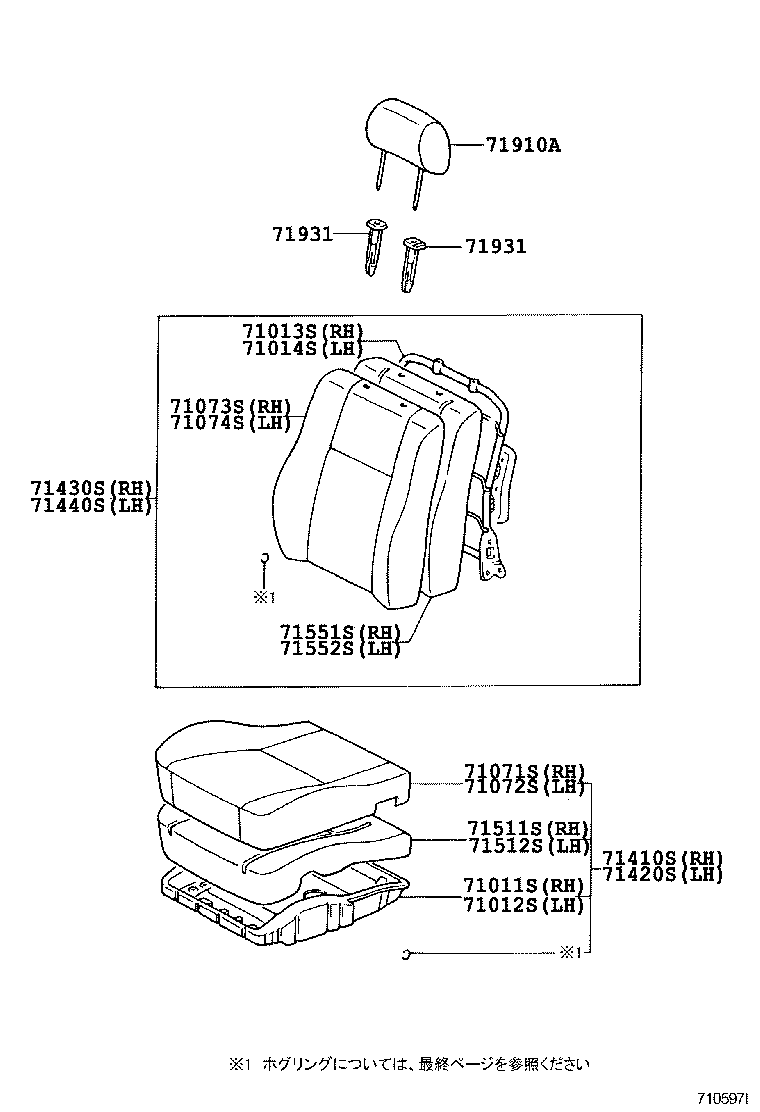

ILLUST NO. 1 OF 2(9705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12440 |
AE11#..STOUR,VTOUR |
1 | ||
| 71011-20440 |
AE111,114..ROSSO,STOUR |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-20440 |
AE11# |
1 | ||
| 71011-12440 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-12630 |
AE11# |
1 | ||
| 71013-12631 |
AE11# |
1 | ||
| 71013-12500 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-12630 |
AE11# |
1 | ||
| 71014-12410 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71013-12631 |
AE11# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-13300B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13301B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13590C0 |
AE111,114..STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71071-13380B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13380B3 |
AE111,114..STOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13580B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13251B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13660B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71072-13340B4 |
AE111,114..STOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13670C0 |
AE115;AE111,114..STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71072-13250B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13340B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-13251B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13620C0 |
AE111..STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71073-13330B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13250B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13331B3 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13590B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13211B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71074-13210B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13450B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13600B0 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71073-13451B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-13380B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13281B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13650C0 |
AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71410-13280B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13640B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71410-13380B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-13230B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13231B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13750C0 |
AE115;AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71420-13341B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13740B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71420-13340B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-13251B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13250B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13610C0 |
AE115;AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71430-13600B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71430-13351B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13350B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-13230B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13231B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13350B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13590C0 |
AE115;AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71440-13351B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13580B0 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12890 |
AE11#..ROSSO,STOUR,VTOUR |
1 | ||
| 71511-12880 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12880 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71511-12890 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71511-12890 |
AE111,114..STOUR |
1 | ||
| 71052-12040 |
AE11#..ROSSO,STOUR,ZTOUR ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12580 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71551-12610 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12610 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 71552-12150 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-13260B0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71910-13120B0 |
AE111,114..STOUR SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A550B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
2 | ||
| 71910-13250C0 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ付,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71931-32020C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ無,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71930-44010C0 |
AE111,114..STOUR ﾛｯｸ付,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020C0 |
AE111,114..STOUR ﾛｯｸ無,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ付,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71931-32020C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ無,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71930-44010C0 |
AE111,114..STOUR ﾛｯｸ付,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020C0 |
AE111,114..STOUR ﾛｯｸ無,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
ILLUST NO. 1 OF 2(9508-9705)STOUR,VTOUR,ZTOUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12440 |
AE11#..STOUR,VTOUR |
1 | ||
| 71011-20440 |
AE111,114..ROSSO,STOUR |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-20440 |
AE11# |
1 | ||
| 71011-12440 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-12630 |
AE11# |
1 | ||
| 71013-12631 |
AE11# |
1 | ||
| 71013-12500 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-12630 |
AE11# |
1 | ||
| 71014-12410 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71013-12631 |
AE11# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-13300B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13301B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13590C0 |
AE111,114..STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71071-13380B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13380B3 |
AE111,114..STOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71071-13580B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-13251B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13660B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71072-13340B4 |
AE111,114..STOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13670C0 |
AE115;AE111,114..STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71072-13250B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71072-13340B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-13251B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13620C0 |
AE111..STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71073-13330B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13250B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13331B3 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13590B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-13211B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71074-13210B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13450B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71073-13600B0 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71073-13451B1 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-13380B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13281B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13650C0 |
AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71410-13280B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-13640B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71410-13380B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-13230B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13231B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13750C0 |
AE115;AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71420-13341B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-13740B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71420-13340B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-13251B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13250B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13610C0 |
AE115;AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71430-13600B1 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71430-13351B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-13350B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-13230B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13231B0 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13350B1 |
AE11#..STOUR,VTOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13590C0 |
AE115;AE111,114..STOUR ***,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
1 | ||
| 71440-13351B2 |
AE111,114..STOUR ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-13580B0 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12890 |
AE11#..ROSSO,STOUR,VTOUR |
1 | ||
| 71511-12880 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-12880 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71511-12890 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71511-12890 |
AE111,114..STOUR |
1 | ||
| 71052-12040 |
AE11#..ROSSO,STOUR,ZTOUR ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾖｳ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12580 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71551-12610 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-12610 |
AE11#..ROSSO,STOUR,VTOUR,ZTOUR |
1 | ||
| 71552-12150 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
AE11# |
1 | ||
| 71831-16010 |
AE11#..4FC,5F |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
AE11#..4FC,5F |
1 | ||
| 71831-16010 |
AE11# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-13260B0 |
AE115;AE111,114..BZT,STOUR ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71910-13120B0 |
AE111,114..STOUR SHADOW GRAY,TRIM1# |
2 | ||
| 71910-1A550B0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
2 | ||
| 71910-13250C0 |
AE111,114..STOUR ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ付,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71931-32020C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ無,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71930-44010C0 |
AE111,114..STOUR ﾛｯｸ付,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020C0 |
AE111,114..STOUR ﾛｯｸ無,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
AE11#..STOUR,VTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ付,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71931-32020C0 |
AE115;AE111,114..BZT,STOUR ﾛｯｸ無,ﾓﾃﾞﾘｽﾀ-C99 ｼﾖｳ,BLACK,TRIM1# |
2 | ||
| 71930-44010C0 |
AE111,114..STOUR ﾛｯｸ付,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
| 71931-32020B0 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-44010B1 |
AE11#..BZT,STOUR,ZTOUR ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020C0 |
AE111,114..STOUR ﾛｯｸ無,ｴｱﾛｽﾎﾟ-ﾂﾘﾐﾃﾂﾄﾞ *(H),BLACK,TRIM1# |
2 | ||
ILLUST NO. 2 OF 2(9508-9705)4FC,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16230B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16230B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71811-12260P0 |
AE11#..STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16190B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12220P0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-12220P0 |
AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220P0 |
AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220P0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12220P0 |
AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71861-12220P0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20130B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-12210P0 |
AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12620 |
AE11#..STOUR,VTOUR |
1 | ||
| 72011-12250 |
AE11#..ROSSO,STOUR,VTOUR |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-12620 |
AE11#..STOUR,VTOUR |
1 | ||
| 72011-12250 |
AE11#..ROSSO,STOUR,VTOUR |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12210 |
AE11# |
1 | ||
| 72020-12570 |
AE11#..STOUR,VTOUR,ZTOUR |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE11# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..4FC,5F BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE11# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..4FC,5F BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE11# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..4FC,5F BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-12010C0 |
AE11# BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..4FC,5F BLACK,TRIM1# |
4 | ||
| 72127-12010C0 |
AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12670 |
AE111..STOUR |
1 | ||
| 72130-12670 |
AE111..STOUR |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-12670 |
AE111..STOUR |
1 | ||
| 72130-12670 |
AE111..STOUR |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
AE11# BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE11#..BZT,ROSSO,STOUR,ZTOUR BLACK,TRIM1# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-12030C0 |
AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
1 | ||
| 72137-12030C0 |
AE11# BLACK,TRIM1# |
1 | ||
| 72137-12070C0 |
AE11#..BZT,ROSSO,STOUR,ZTOUR BLACK,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-12040C0 |
AE11# BLACK,TRIM1# |
1 | ||
| 72138-12080C0 |
AE11#..BZT,ROSSO,STOUR,ZTOUR BLACK,TRIM1# |
1 | ||
| 72138-12040C0 |
AE11#..BZT,STOUR,VTOUR BLACK,TRIM1# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-12490 |
AE111..STOUR,ZTOUR |
1 | ||
| 72140-12490 |
AE111..STOUR,ZTOUR |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12060C0 |
AE11# BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
AE111..BZT,STOUR BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
AE111 BLACK,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12060C0 |
AE11# BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
AE111..BZT,STOUR BLACK,TRIM1# |
1 | ||
| 72157-12030C0 |
AE111 BLACK,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-12060C0 |
AE11# BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
AE111 BLACK,TRIM1# |
1 | ||
| 72158-12030C0 |
AE111..BZT,STOUR BLACK,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AE11#..STOUR,VTOUR |
1 | ||
| 72301-12160 |
AE11#..STOUR,VTOUR |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
AE11#..STOUR,VTOUR |
1 | ||
| 72301-12160 |
AE11#..STOUR,VTOUR |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
AE11#..4FC,5F |
1 | ||
| 72301-12160 |
AE11# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100P0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100P0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040P0 |
AE11#..BZT,STOUR,VTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
AE11#..BZT,STOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90119-10229 | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90386-12046 | ||||
| 91511-60814 | ||||
| 91511-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
