AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9508- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907065 9009907114 9331915008
Part # Description Qty Price
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A040

AE11#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AE11#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-1A010

AE11#

 1
Common parts
90099-04349
90099-07065
90099-07114
93319-15008

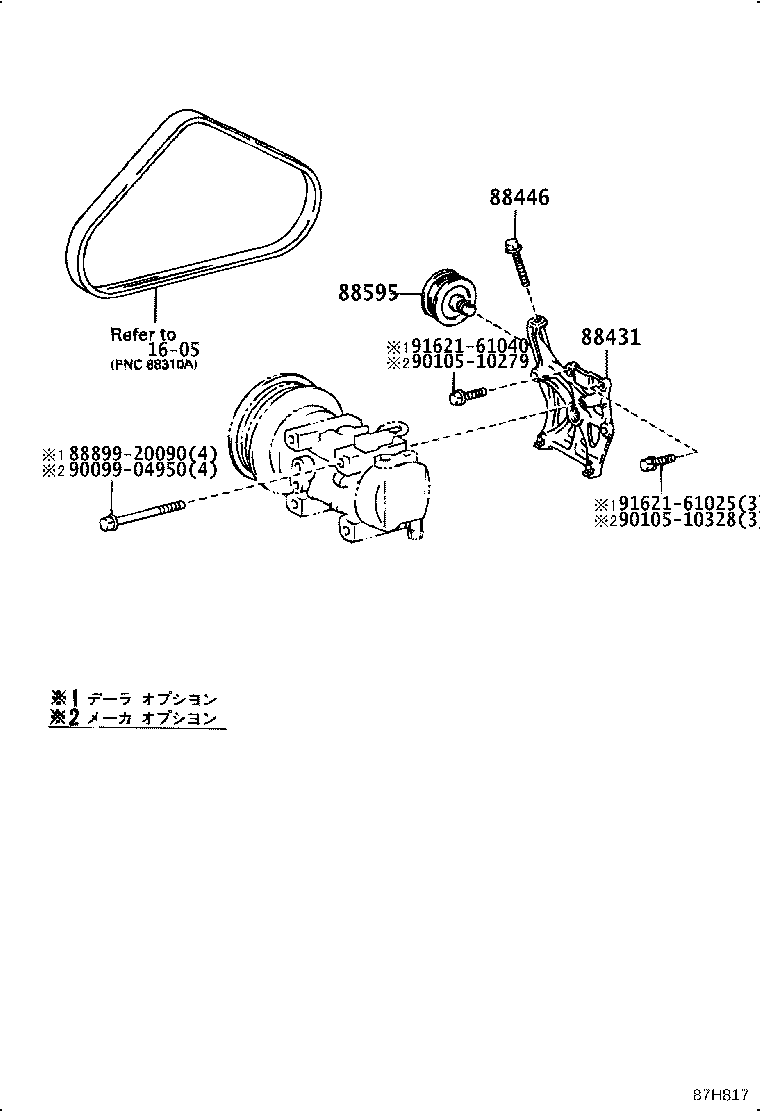

ILLUST NO. 1 OF 2(9508- )ROSSO,STOUR,VTOUR,ZTOUR

Click highlighted areas on diagram

diagram 1605 88431 88446 88595 8889920090 9009904950 9010510279 9010510328 9162161025 9162161040
Part # Description Qty Price
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-20170

AE11#..ROSSO,ZTOUR

ﾒ-ｶ- ｵﾌﾟｼﾖﾝ

 1
Common parts
88899-20090
90099-04950
90105-10279
90105-10328
91621-61025
91621-61040
Linked diagrams
1605
