AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )ROSSO,STOUR,VTOUR,ZTOUR

Click highlighted areas on diagram

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

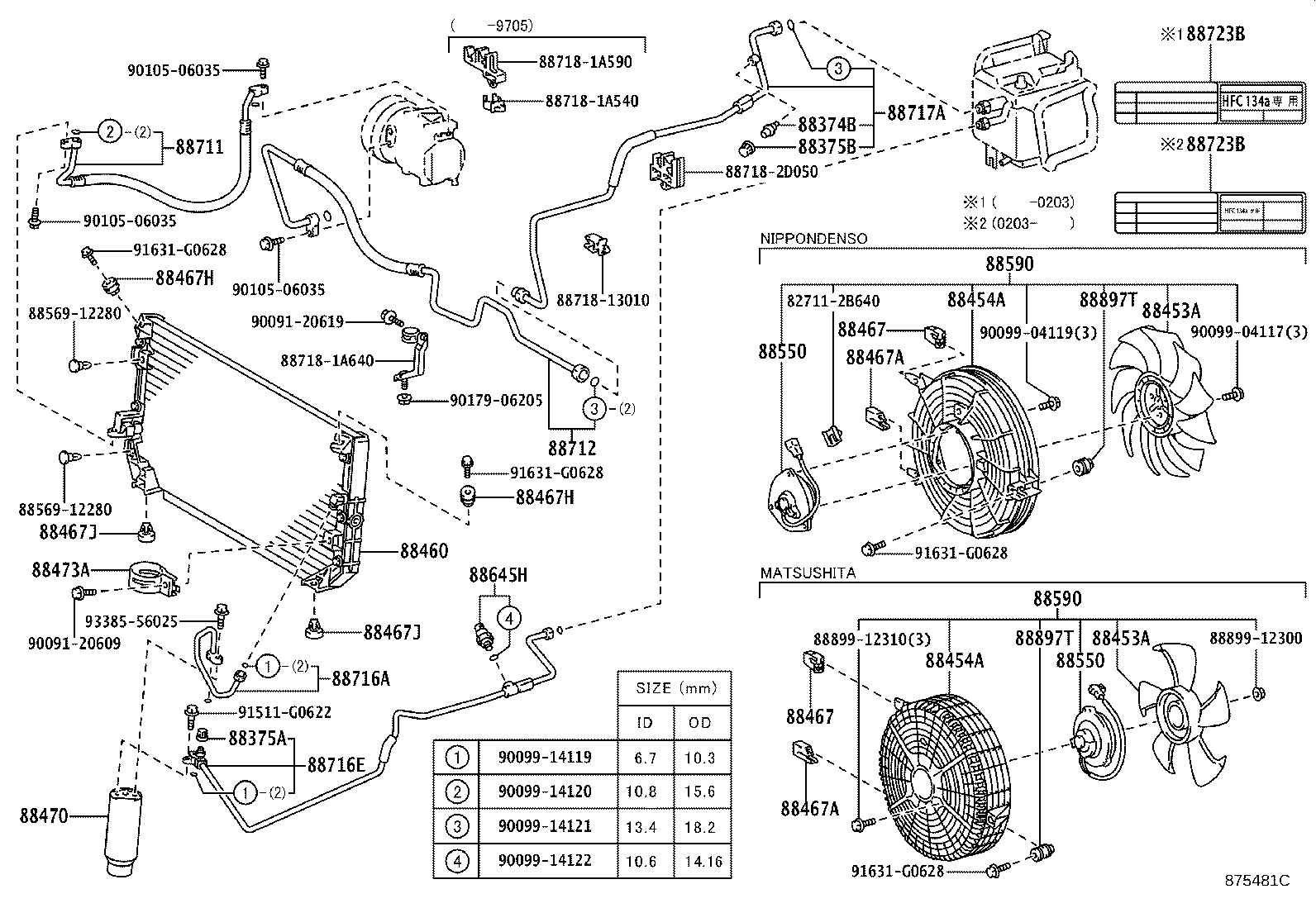

diagram 827112B640 88374B 88375A 88375B 88453A 88453A 88454A 88454A 88460 88467 88467 88467A 88467A 88467H 88467H 88467J 88467J 88470 88473A 88550 88550 8856912280 8856912280 88590 88590 88645H 88711 88712 88716A 88716E 88717A 8871813010 887181A540 887181A590 887181A640 887182D050 88723B 88723B 88897T 88897T 8889912300 8889912310 9009120609 9009120619 9009904117 9009904119 9009914119 9009914120 9009914121 9009914122 9010506035 9010506035 9010506035 9017906205 91511G0622 91631G0628 91631G0628 91631G0628 91631G0628 9338556025
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

AE11#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AE11#

 1
88460 - CONDENSER ASSY, COOLER
88460-12480

AE11#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12130

AE11#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12130

AE11#

 1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12140

AE11#

 1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12140

AE11#

 1
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250

AE11#

 2
88467H - CUSHION, CONDENSER BRACKET, NO.1
88897-12250

AE11#

 2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100

AE11#

 2
88467J - CUSHION, CONDENSER BRACKET, NO.2
88467-12100

AE11#

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-60010

AE11#

 1
88473A - HOLDER, RECEIVER
88473-20070

AE11#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AE11#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-1A440

AE111,114

 1
88711-1A491

AE111,114..ROSSO,ZTOUR

 1
88711-1A491

AE111,114..ROSSO,STOUR,ZTOUR

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-12470

AE11#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-1A020

AE11#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110

AE11#

 1
88733-12020

AE11#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12110

AE11#

 1
88733-12020

AE11#

 1
Common parts
82711-2B640
88569-12280
88718-13010
88718-1A540
88718-1A590
88718-1A640
88718-2D050
88899-12300
88899-12310
90091-20609
90091-20619
90099-04117
90099-04119
90099-14119
90099-14120
90099-14121
90099-14122
90105-06035
90179-06205
91511-G0622
91631-G0628
93385-56025
