AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

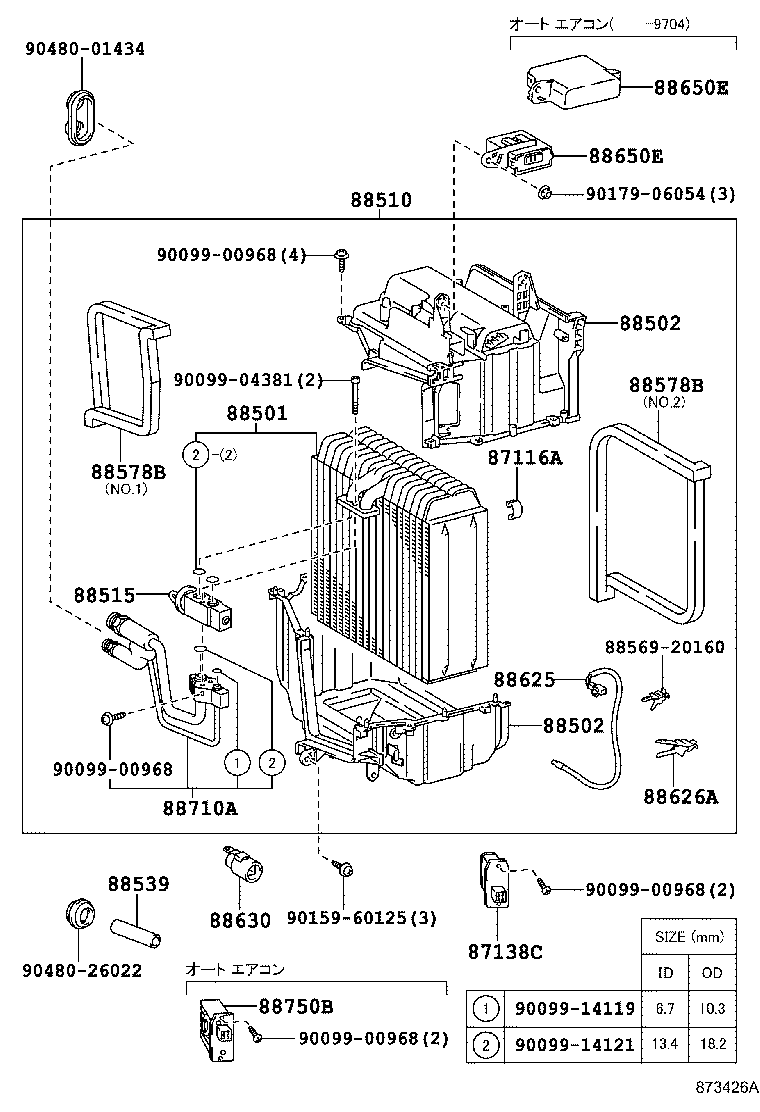

Click highlighted areas on diagram

ﾒ-ｶ ｵﾌﾟｼﾖﾝ

diagram 87116A 87138C 88501 88502 88502 88510 88515 88539 8856920160 88578B 88578B 88625 88626A 88630 88650E 88650E 88710A 88750B 9009900968 9009900968 9009900968 9009900968 9009904381 9009914119 9009914121 9015960125 9017906054 9048001434 9048026022
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-12140

AE11#

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AE11#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12120

AE11#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-12280

AE11#

 1
88626A - HOLDER, THERMISTOR
88626-28010

AE11#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12330

AE11#

 1
Common parts
88569-20160
90099-00968
90099-04381
90099-14119
90099-14121
90159-60125
90179-06054
90480-01434
90480-26022
