AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

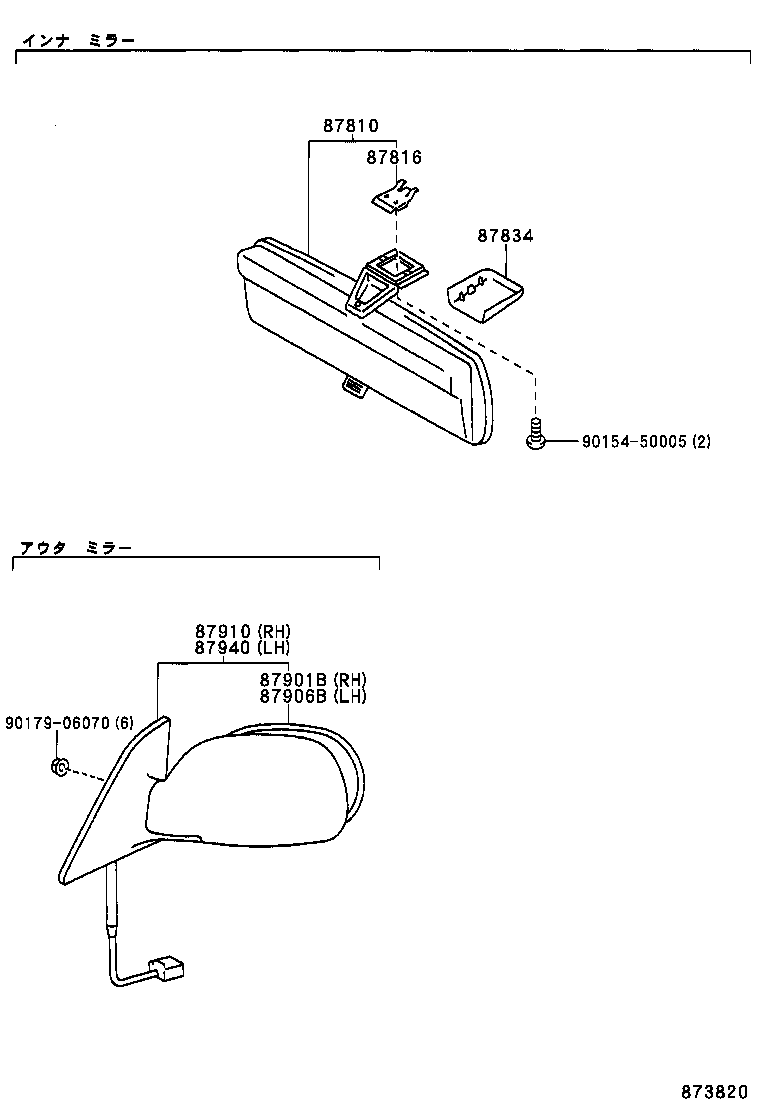

Click highlighted areas on diagram

diagram 87810 87816 87834 87901B 87906B 87910 87940 9015450005 9017906070
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-12280B2

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

AE11#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-12030B4

AE11#

ｱﾘ(ﾎﾞｳｹﾞﾝ),LT.GRAY,TRIM1#

 1
87834-12030B6

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-1E550

AE11#

 1
87931-1E690

AE11#

ｶﾗ-ﾄﾞﾐﾗ-

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-1E230

AE11#

ｶﾗ-ﾄﾞﾐﾗ-

 1
87961-1E550

AE11#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-1E690D1

AE111,114..ROSSO

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,RED,3M7

 1
87910-1E710D2

AE111,114..ROSSO

RED,3M7

 1
87910-1E690J1

AE11#..ROSSO,STOUR,ZTOUR

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,BLUE M.M.,8L5

 1
87910-1E710J1

AE11#..ROSSO,STOUR,ZTOUR

BLUE M.M.,8L5

 1
87910-1E690D2

AE111,114..ROSSO

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,SUPER RED 2,3E5

 1
87910-1E710C0

AE111,114..ROSSO

BLACK ME,205

 1
87910-1E710D3

AE111,114..ROSSO

SUPER RED II,3E5

 1
87910-1E690C0

AE111,114..ROSSO

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,BLACK ME.,205

 1
87910-1E690B3

AE11#

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,SILVER ME,199

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-1E230D1

AE111,114..ROSSO

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,RED,3M7

 1
87940-1H040J1

AE11#..ROSSO,STOUR,ZTOUR

BLUE M.M.,8L5

 1
87940-1E230J1

AE11#..ROSSO,STOUR,ZTOUR

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,BLUE M.M.,8L5

 1
87940-1H040D2

AE111,114..ROSSO

RED,3M7

 1
87940-1E230B3

AE11#

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,SILVER ME,199

 1
87940-1E230D2

AE111,114..ROSSO

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,SUPER RED 2,3E5

 1
87940-1H040D3

AE111,114..ROSSO

SUPER RED II,3E5

 1
87940-1E230C0

AE111,114..ROSSO

ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ,BLACK ME.,205

 1
87940-1H040C0

AE111,114..ROSSO

BLACK ME,205

 1
Common parts
90154-50005
90179-06070
