AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

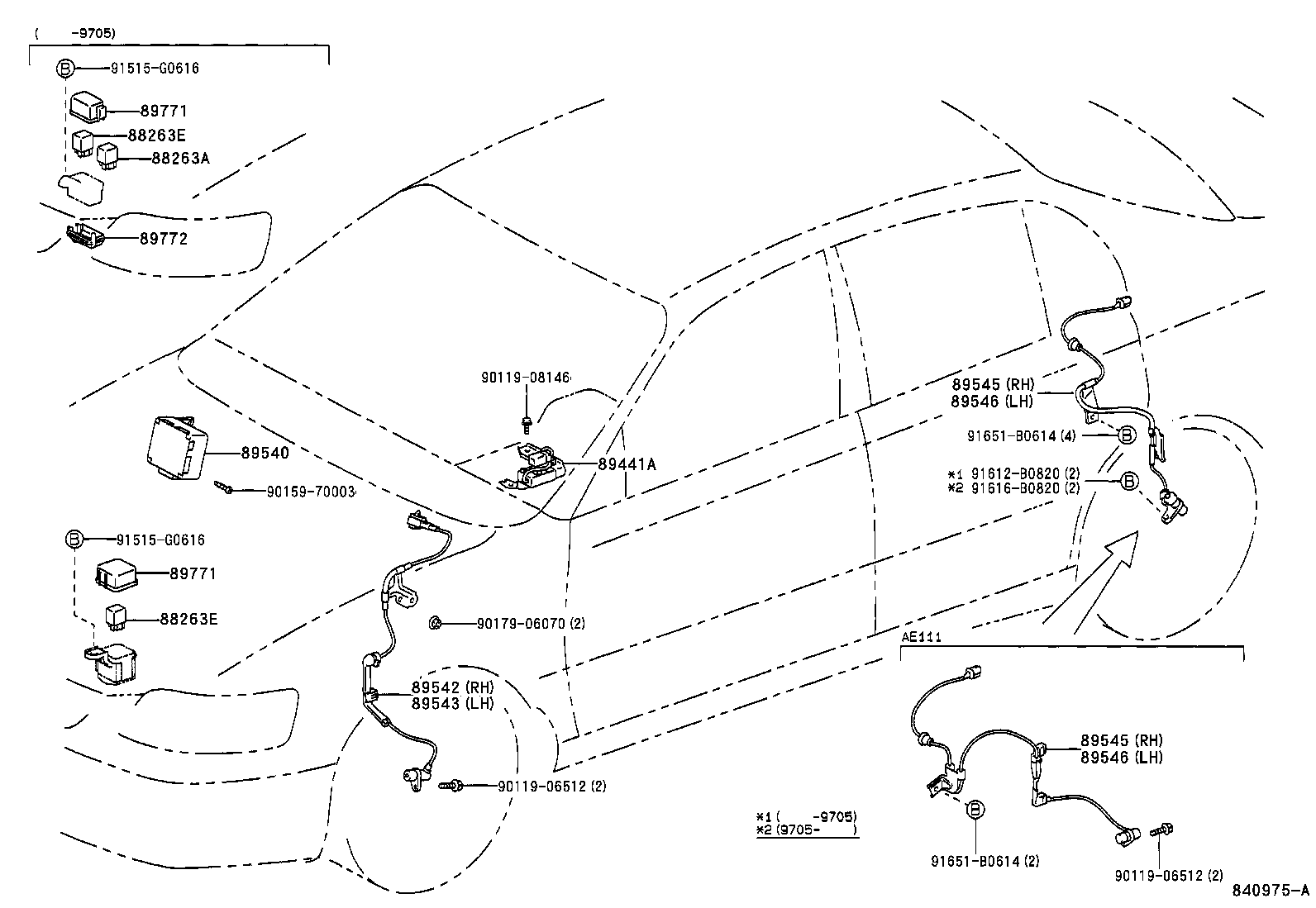

Click highlighted areas on diagram

diagram 88263A 88263E 88263E 89441A 89540 89542 89543 89545 89545 89546 89546 89771 89771 89772 9011906512 9011906512 9011908146 9015970003 9017906070 91515G0616 91515G0616 91612B0820 91616B0820 91651B0614 91651B0614
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

AE11#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

AE11#

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

AE11#

 1
89441A - SENSOR, DECELERATION
89440-12050

AE11#

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-12220

AE11#

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12040

AE11#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12040

AE11#

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-12010

AE11#

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-12010

AE11#

 1
89772 - COVER, ABS RELAY BLOCK, LOWER
89772-12010

AE11#

 1
Common parts
90119-06512
90119-08146
90159-70003
90179-06070
91515-G0616
91612-B0820
91616-B0820
91651-B0614
