AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )ROSSO,STOUR,VTOUR,ZTOUR

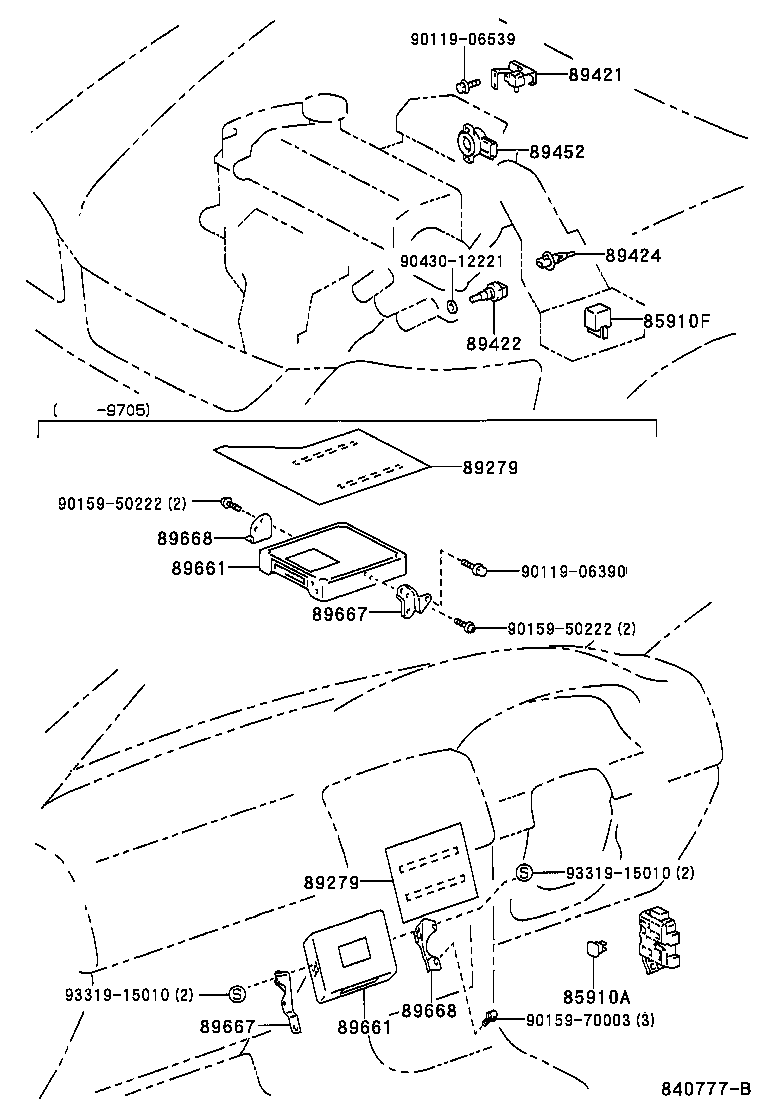

Click highlighted areas on diagram

diagram 85910A 85910F 89279 89279 89421 89422 89424 89452 89661 89661 89667 89667 89668 89668 9011906390 9011906539 9015950222 9015950222 9015970003 9043012221 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02009

AE11#

 1
85910F - RELAY, COMPUTER (FOR EFI)
85915-26010

AE11#

DENSO

 1
90987-02009

AE11#

MARUKO

 1
90987-02009

AE11#

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-12190

AE11#..ROSSO,STOUR,ZTOUR

品番ﾗﾍﾞﾙ=89420−12190

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AE11#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AE11#

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12120

AE11#

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12120

AE11#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12050

AE11#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12050

AE11#

 1
Common parts
90119-06390
90119-06539
90159-50222
90159-70003
90430-12221
93319-15010
