Toyota Sprinter carib AE111 METER

Part #	Description	Period	Qty
83133 - PLATE, COMBINATION METER, NO.1
83133-1H370	AE11#..5F	08/1995 - 04/1997	1
83138G - GLASS, COMBINATION METER
83138-1A210	AE11#	08/1995 - 04/1997	1
83242 - TACHOMETER ASSY, ENGINE
83242-1H410	AE11#	08/1995 - 05/1996	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-1A830	AE11#..5F	08/1995 - 05/1996	1
83882-12772	AE11#..ROSSO,STOUR,ZTOUR	04/1998 - 07/2002	1
83247 - PLATE, METER CIRCUIT
83861-12800	AE111..5F	04/1998 - 07/2002	1
83290D - METER ASSY, ACCESSORY
83290-12010	AE11#	08/1995 - 04/1997	1
83290E - BULB, ACCESSORY METER
90077-01001	AE11#	08/1995 - 04/1997	2
83910 - CLOCK ASSY
83910-12520	AE11#	08/1995 - 04/1997	1
Common parts
90099-00211
90099-00225
90099-00248
90099-00917
90099-00929
90301-18018
93567-55016
93568-15012
96711-24030

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE11# 12V 1.2W ｿｹｯﾄ無し	08/1995 - 04/1997	1
83109-24020	AE11# 12V 3.4W ｷｬｯﾌﾟ付き	08/1995 - 04/1997	4
83119-32010	AE11# 14V 3.0W,ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ	08/1995 - 04/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE11# 12V 1.2W ｿｹｯﾄ無し	08/1995 - 04/1997	1
83109-24020	AE11# 12V 3.4W ｷｬｯﾌﾟ付き	08/1995 - 04/1997	4
83119-32010	AE11# 14V 3.0W,ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ	08/1995 - 04/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE11# 12V 1.2W ｿｹｯﾄ無し	08/1995 - 04/1997	1
83109-24020	AE11# 12V 3.4W ｷｬｯﾌﾟ付き	08/1995 - 04/1997	4
83119-32010	AE11# 14V 3.0W,ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ	08/1995 - 04/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE11# 12V 1.2W ｿｹｯﾄ無し	08/1995 - 04/1997	1
83109-24020	AE11# 12V 3.4W ｷｬｯﾌﾟ付き	08/1995 - 04/1997	4
83119-32010	AE11# 14V 3.0W,ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ	08/1995 - 04/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE11# 12V 1.2W ｿｹｯﾄ無し	08/1995 - 04/1997	1
83109-24020	AE11# 12V 3.4W ｷｬｯﾌﾟ付き	08/1995 - 04/1997	4
83119-32010	AE11# 14V 3.0W,ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ	08/1995 - 04/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	AE11# 12V 1.2W ｿｹｯﾄ無し	08/1995 - 04/1997	1
83109-24020	AE11# 12V 3.4W ｷｬｯﾌﾟ付き	08/1995 - 04/1997	4
83119-32010	AE11# 14V 3.0W,ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ	08/1995 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	AE11# 12V 1.4W	08/1995 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	AE11# 12V 1.4W	08/1995 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	AE11# 12V 1.4W	08/1995 - 04/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040	AE11# 12V 1.4W	08/1995 - 04/1997	1

AE111G-CWMBK (1998)

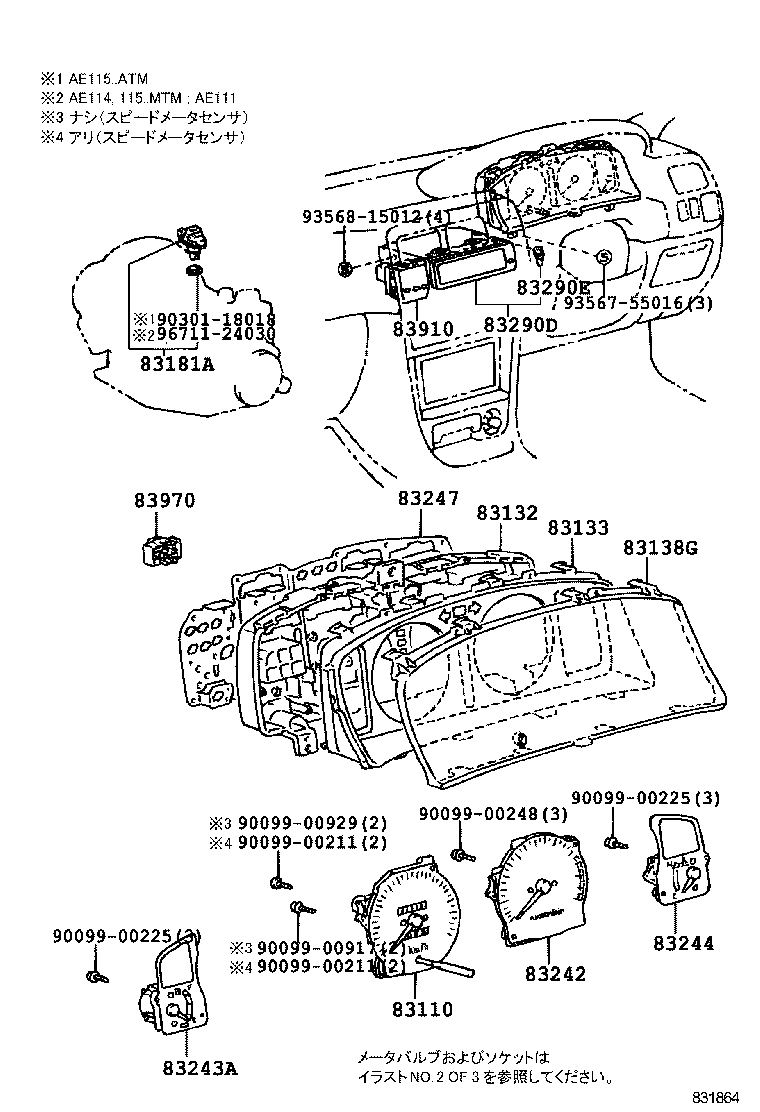

ILLUST NO. 1 OF 3(9508- )

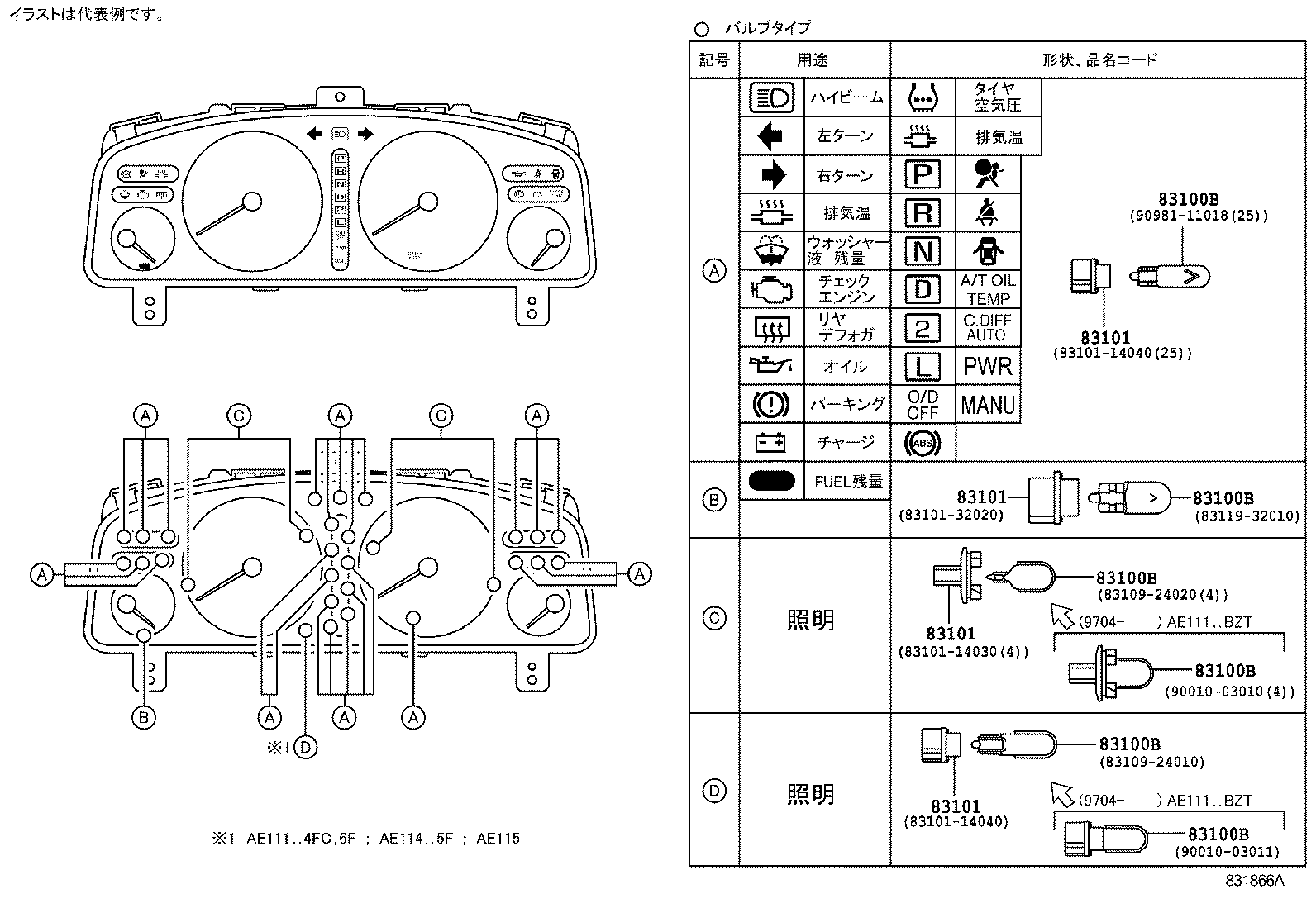

ILLUST NO. 2 OF 3(9508- )

ILLUST NO. 3 OF 3(9508- )
