AE111G-CWMBK (1998)
Toyota Sprinter Carib
ILLUST NO. 7 OF 8(9508- )
ﾋﾕ-ｼﾞﾌﾞﾙﾘﾝｸ ﾘﾍﾟｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12070 |
AE11# |
1 | ||

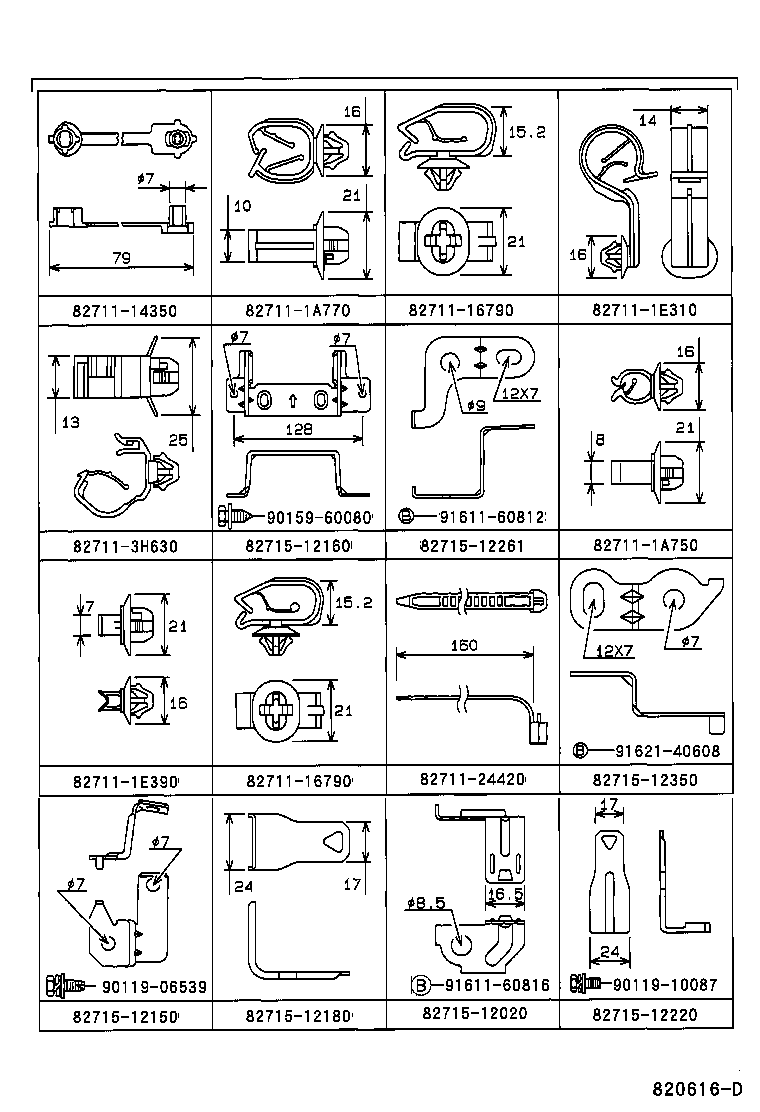

ILLUST NO. 5 OF 8(9508- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14350 | ||||
| 82711-16790 | ||||
| 82711-1A750 | ||||
| 82711-1A770 | ||||
| 82711-1E310 | ||||
| 82711-1E390 | ||||
| 82711-24420 | ||||
| 82711-3H630 | ||||
| 82715-12020 | ||||
| 82715-12150 | ||||
| 82715-12160 | ||||
| 82715-12180 | ||||
| 82715-12220 | ||||
| 82715-12261 | ||||
| 82715-12350 | ||||
| 90119-06539 | ||||
| 90119-10087 | ||||
| 90159-60080 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91621-40608 | ||||

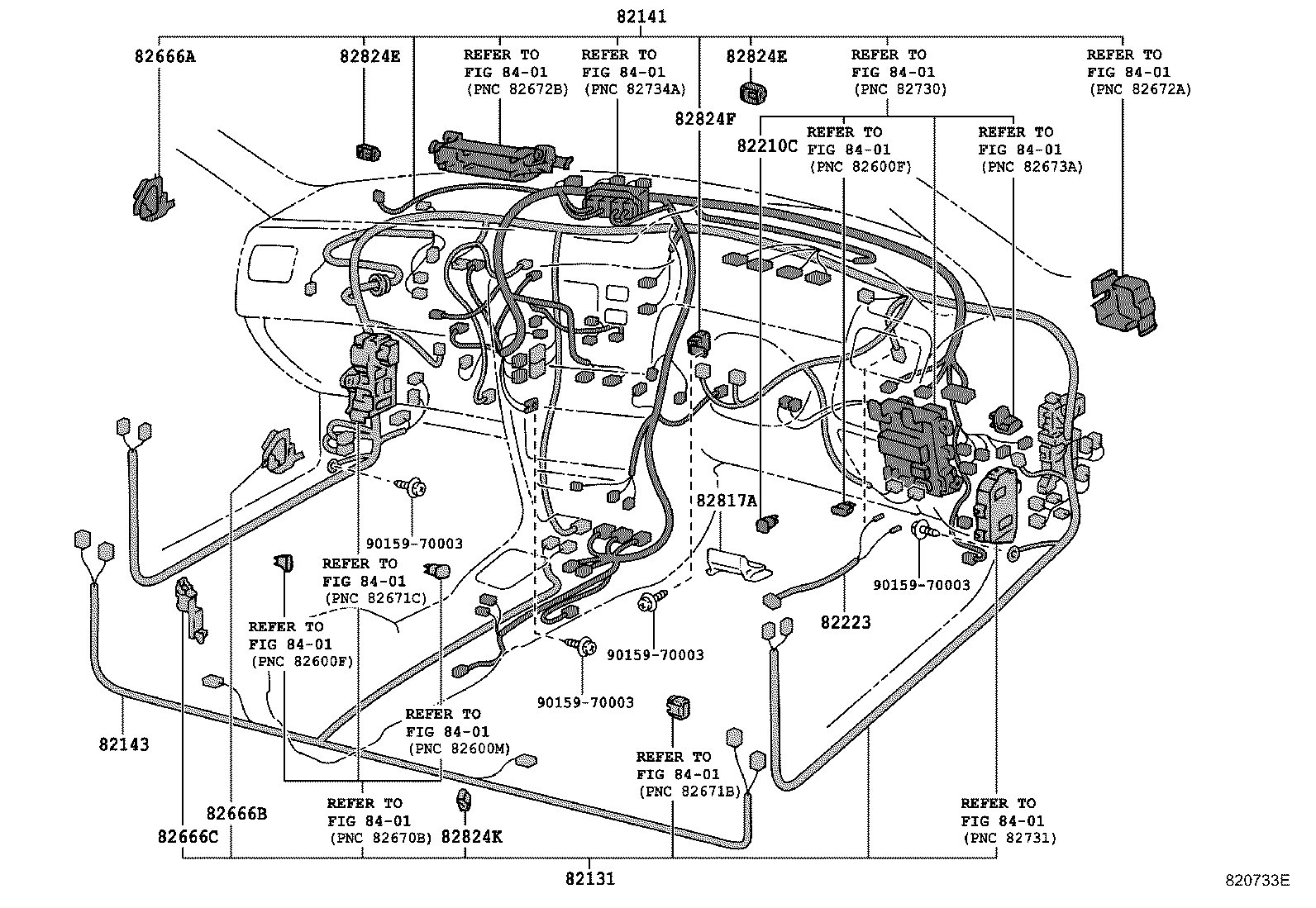

ILLUST NO. 3 OF 8(9508- )
ｶｳﾙ,ｲﾝｽﾄﾙﾒﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1L511 |
AE11# |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1N062 |
AE111..ROSSO,STOUR |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
AE11# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08257 |
AE11# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08282 |
AE11# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08228 |
AE11# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08280 |
AE11# 30A,ﾒｽ端子,桃 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12220 |
AE11# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE11# |
1 | ||
| 82824-12210 |
AE111,114..ROSSO |
3 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE11# |
1 | ||
| 82824-12210 |
AE111,114..ROSSO |
3 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE111,114;AE115..VTOUR;AE115..ZTOUR..5F |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
AE11# |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||

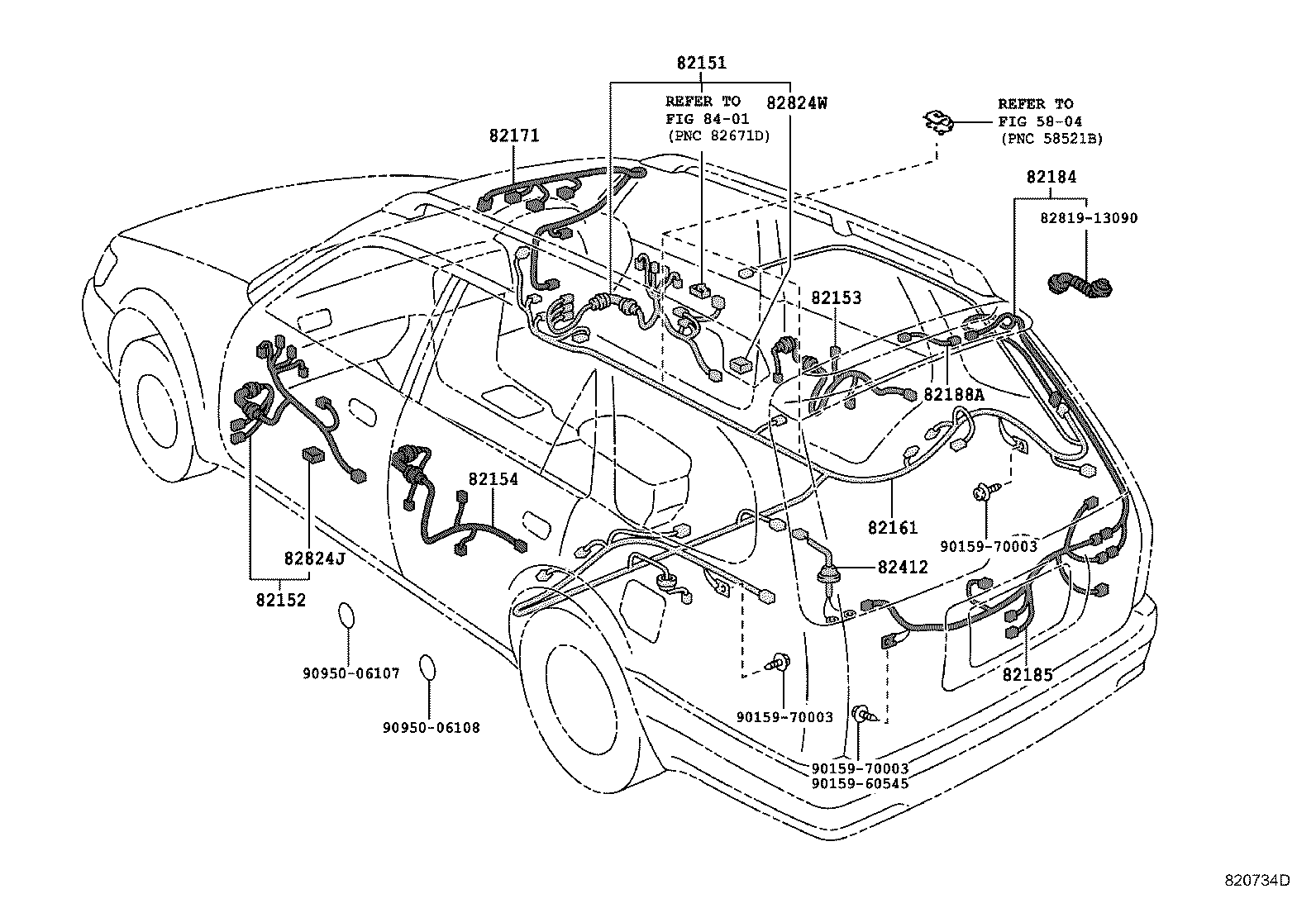

ILLUST NO. 4 OF 8(9508- )
ﾙ-ﾌ,ﾄﾞｱ,ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1A620 |
AE111,114..ROSSO |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1A270 |
AE111,114..ROSSO |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-13790 |
AE11# ｱﾘ(*66) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-13150 |
AE11# ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 82171-13140 |
AE11# |
1 | ||
| 82171-13160 |
AE11# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-13210 |
AE11# |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13270 |
AE11# |
1 | ||
| Common parts | ||||
| 82819-13090 | ||||
| 90159-60545 | ||||
| 90159-70003 | ||||
| 90950-06107 | ||||
| 90950-06108 | ||||
| Linked diagrams | ||||
| 5804 | ||||
| 8401 | ||||

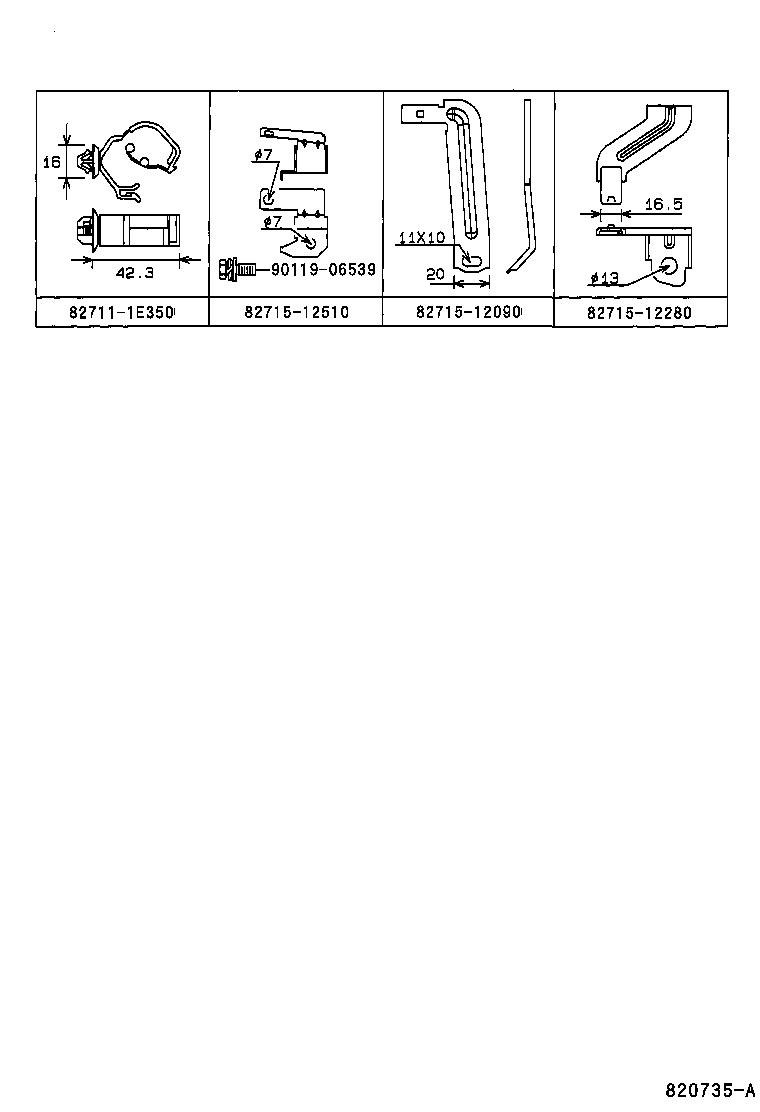

ILLUST NO. 5 OF 8(9508- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-12090 | ||||
| 82715-12280 | ||||
| 82715-12510 | ||||
| 90119-06539 | ||||

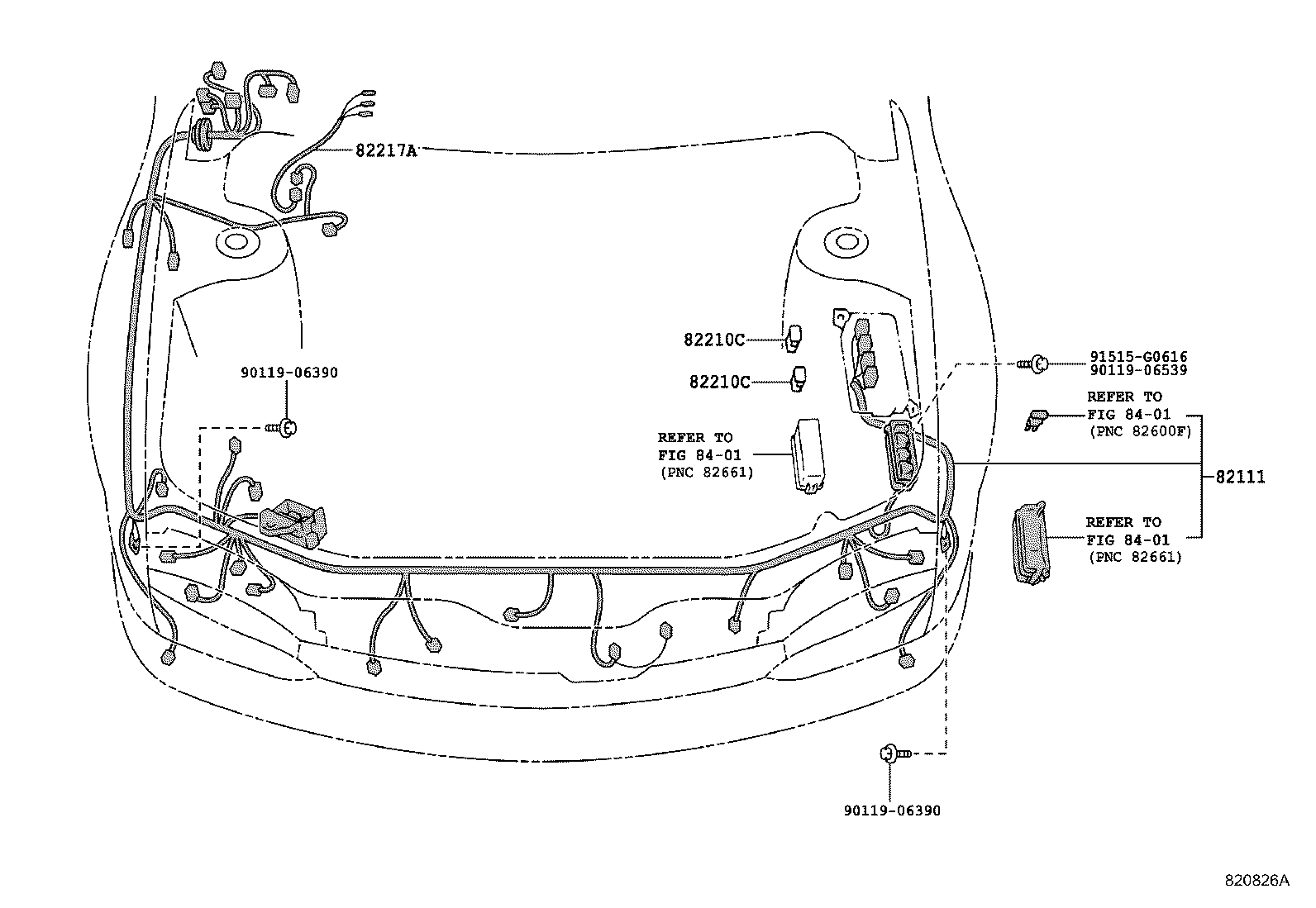

ILLUST NO. 1 OF 8(9508- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1H270 |
AE11# ｱﾘ(ABS) OR ｱﾘ(ABS & ｵ-ﾄｴｱｺﾝ) OR ｱﾘ(ABS & ﾌｲ-ﾙﾄﾞ ﾓﾆﾀ-) OR ｱﾘ(ABS & ﾌﾛﾝﾄ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82111-1H250 |
AE11# |
1 | ||
| 82111-1K340 |
AE111,114..ROSSO |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
AE11# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08257 |
AE11# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08282 |
AE11# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08228 |
AE11# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08280 |
AE11# 30A,ﾒｽ端子,桃 |
2 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
AE11# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08257 |
AE11# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08282 |
AE11# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08228 |
AE11# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08280 |
AE11# 30A,ﾒｽ端子,桃 |
2 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-12020 |
AE11# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 91515-G0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

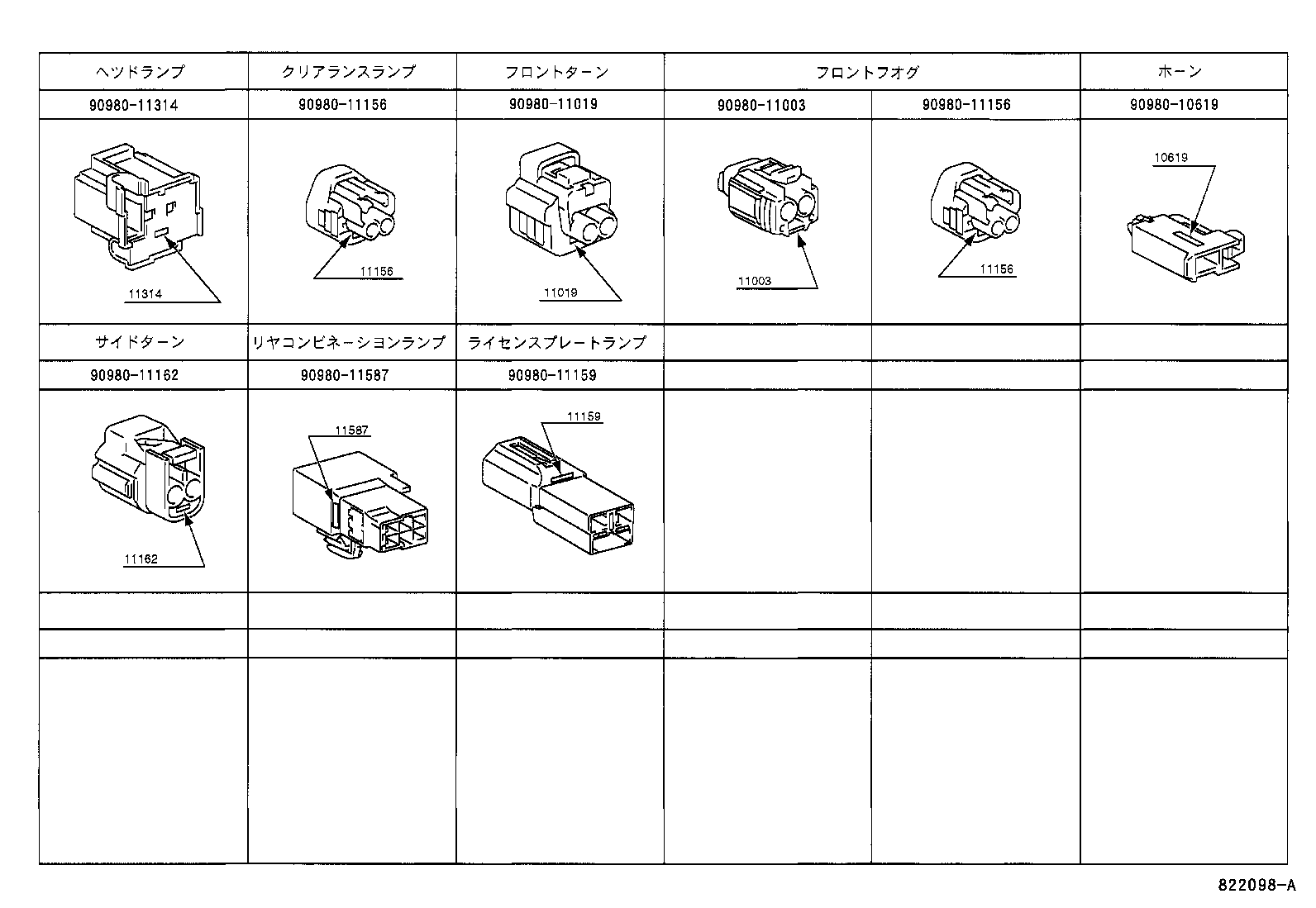

ILLUST NO. 8 OF 8(9508- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
| 90980-11587 | ||||
ILLUST NO. 2 OF 8(9508- )ROSSO,STOUR,VTOUR,ZTOUR
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1N511 |
AE111..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12290 |
AE11# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
AE11# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08257 |
AE11# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08282 |
AE11# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08228 |
AE11# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08280 |
AE11# 30A,ﾒｽ端子,桃 |
2 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12240 |
AE11#..5F |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
AE11# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
AE11# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
AE11# NO.2 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-24010 |
AE11# NO.2 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
AE11# |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06052 | ||||
| 90119-06390 | ||||
| 90179-06143 | ||||
| 90950-01813 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8401 | ||||

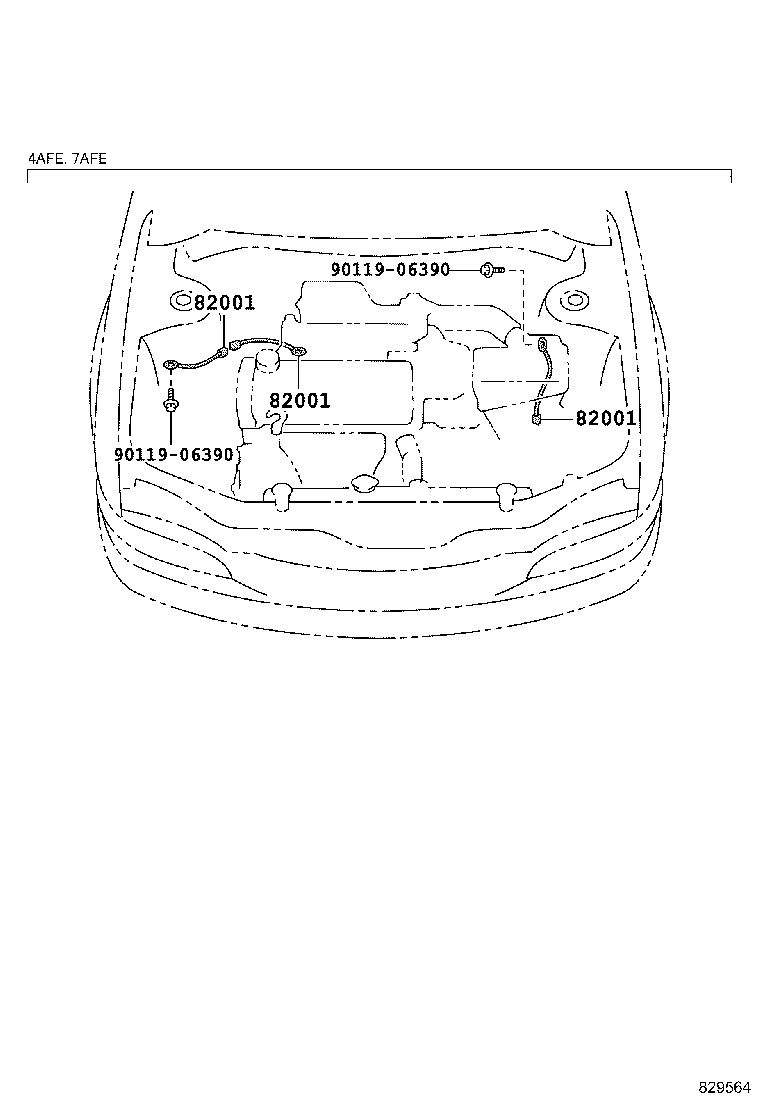

ILLUST NO. 6 OF 8(9508- )ROSSO,STOUR,VTOUR,ZTOUR
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07384 |
AE11# FENDER,PLANT NO.M12 |
1 | ||
| 90980-07206 |
AE11# FENDER,A31,A32,B11 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07384 |
AE11# FENDER,PLANT NO.M12 |
1 | ||
| 90980-07206 |
AE11# FENDER,A31,A32,B11 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07384 |
AE11# FENDER,PLANT NO.M12 |
1 | ||
| 90980-07206 |
AE11# FENDER,A31,A32,B11 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
