AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

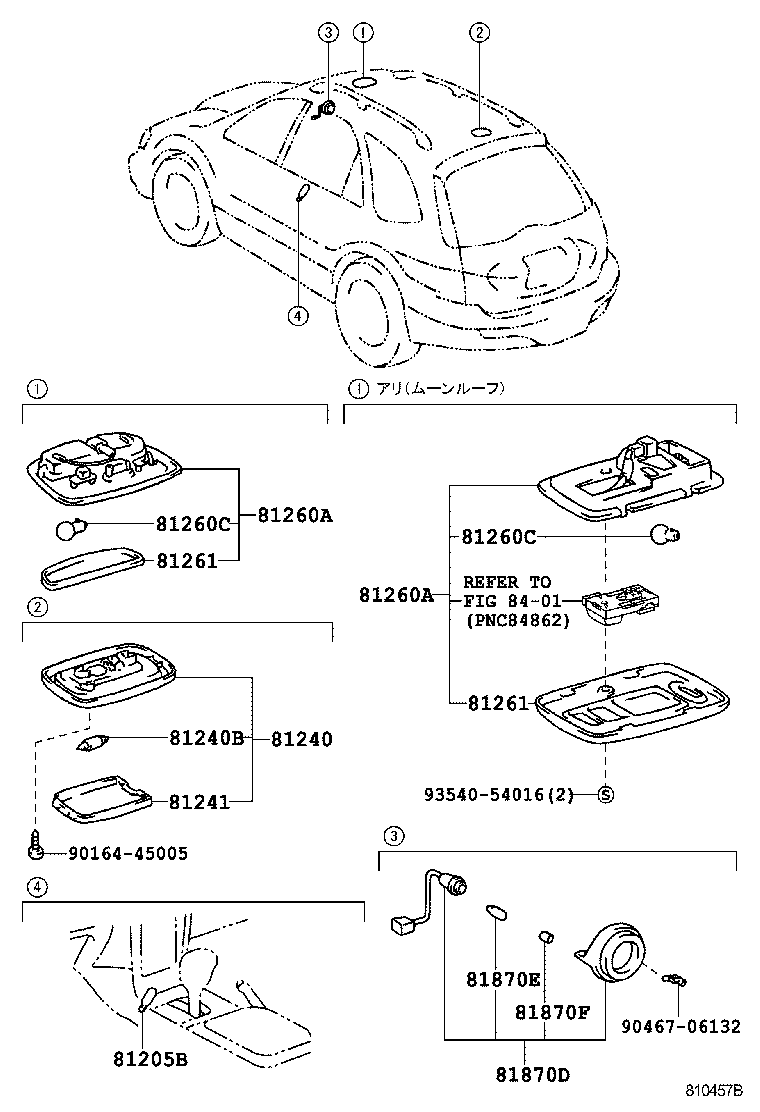

Click highlighted areas on diagram

diagram 81205B 81240 81240B 81241 81260A 81260A 81260C 81260C 81261 81261 81870D 81870E 81870F 9016445005 9046706132 9354054016
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

AE11#

12V 1.2W ｿｹｯﾄ無し

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12060B6

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
81240-12080B0

AE11#

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AE11#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

AE11#

 1
81260A - LAMP ASSY, MAP
81260-13010B2

AE111,114..ROSSO

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 1
81260-16060B0

AE11#

LT.GRAY,TRIM1#

 1
81260-13020B1

AE111,114..ROSSO

MD. CHARCOAL,TRIM1#

 1
81260-13010B1

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81260A - LAMP ASSY, MAP
81260-13010B2

AE111,114..ROSSO

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM1#

 1
81260-16060B0

AE11#

LT.GRAY,TRIM1#

 1
81260-13020B1

AE111,114..ROSSO

MD. CHARCOAL,TRIM1#

 1
81260-13010B1

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE11#

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
90981-12005

AE11#

12V 8W

 2
90981-12014

AE111,114..ROSSO

12V 10W

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AE11#

12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
90981-12005

AE11#

12V 8W

 2
90981-12014

AE111,114..ROSSO

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-16060

AE11#

 1
81261-13010B1

AE111,114..ROSSO

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD. CHARCOAL,TRIM1#

 1
81261-13010B0

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
81261 - LENS AND COVER, MAP LAMP
81261-16060

AE11#

 1
81261-13010B1

AE111,114..ROSSO

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MD. CHARCOAL,TRIM1#

 1
81261-13010B0

AE11#

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LT.GRAY,TRIM1#

 1
Common parts
90164-45005
90467-06132
93540-54016
