AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

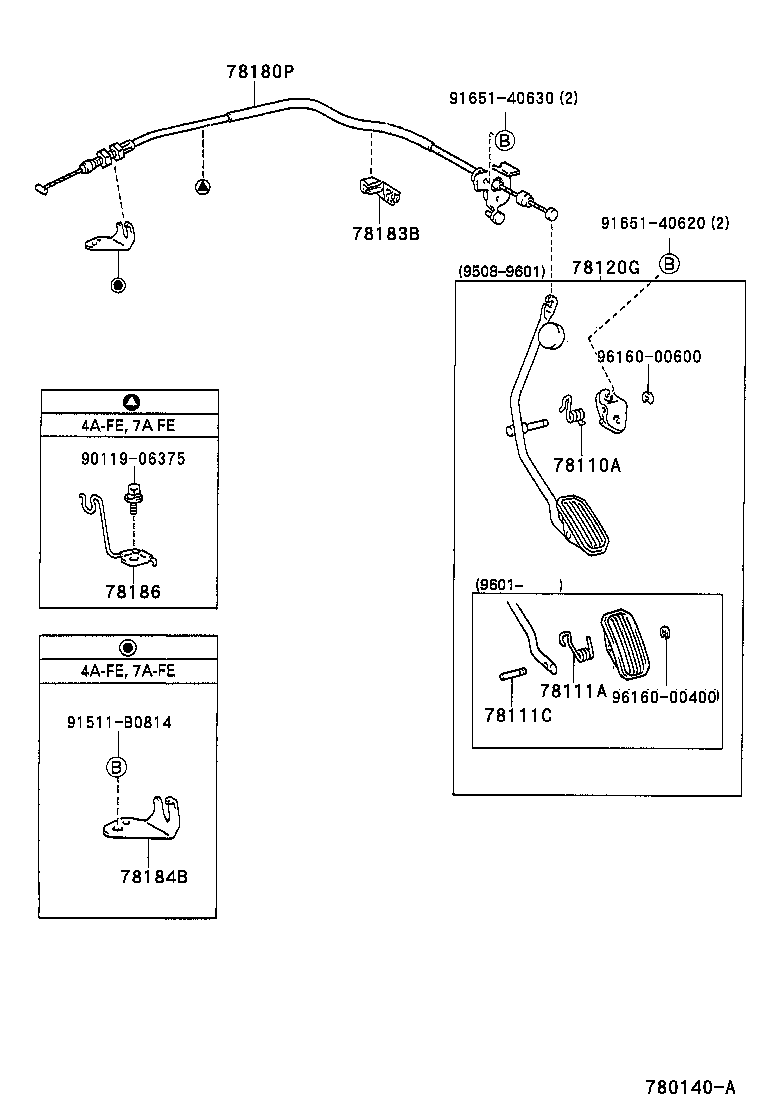

Click highlighted areas on diagram

diagram 78110A 78111A 78111C 78120G 78180P 78183B 78184B 78186 9011906375 91511B0814 9165140620 9165140630 9616000400 9616000600
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12161

AE11#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-12160

AE11#

 1
Common parts
90119-06375
91511-B0814
91651-40620
91651-40630
96160-00400
96160-00600
