AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

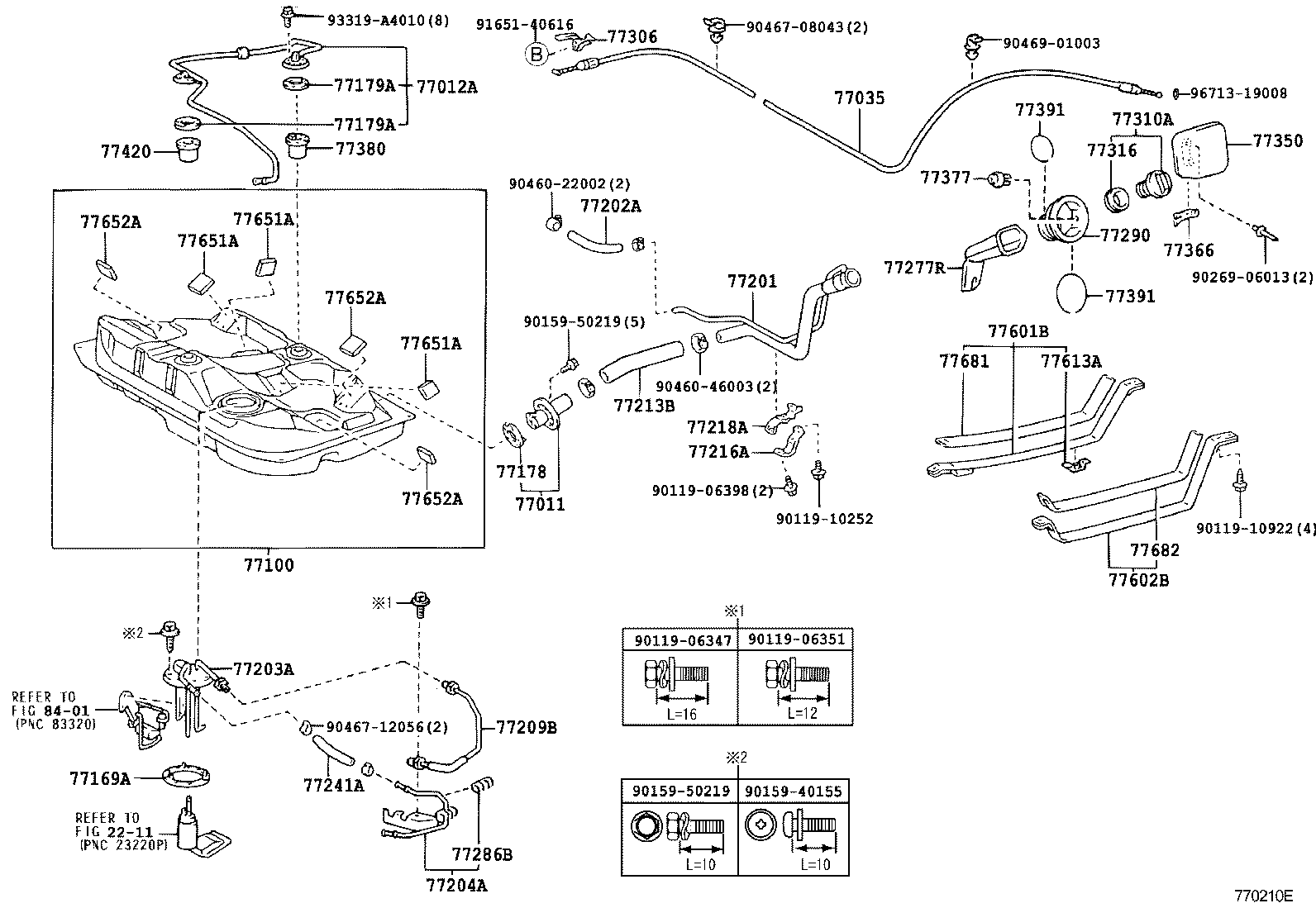

ILLUST NO. 1 OF 2(9508- )AE111

Click highlighted areas on diagram

diagram 2211 77011 77012A 77035 77100 77169A 77178 77179A 77179A 77201 77202A 77203A 77204A 77209B 77213B 77216A 77218A 77241A 77277R 77286B 77290 77306 77310A 77316 77350 77366 77377 77380 77391 77391 77420 77601B 77602B 77613A 77651A 77651A 77651A 77652A 77652A 77652A 77681 77682 8401 9011906347 9011906351 9011906398 9011910252 9011910922 9015940155 9015950219 9015950219 9026906013 9046022002 9046046003 9046708043 9046712056 9046901003 9165140616 93319A4010 9671319008
Part # Description Qty Price
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-12090

AE11#

 1
77012-12100

AE11#

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12220

AE11#

 1
77100 - TANK ASSY, FUEL
77001-12933

AE11#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

AE11#

 1
77204A - TUBE, FUEL TANK RETURN
23204-16550

AE11#

 1
77209B - TUBE SUB-ASSY, FUEL PUMP
77209-12100

AE11#

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-12160

AE11#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-12110

AE11#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-13060

AE11#

 1
77310A - CAP ASSY, FUEL TANK
77310-16011

AE11#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

AE11#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12360

AE11#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-12080

AE11#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12050

AE11#

 1
77391 - RING, FUEL INLET BOX
77391-12020

AE11#

内側

 1
77391-12010

AE11#

外側

 1
77391 - RING, FUEL INLET BOX
77391-12020

AE11#

内側

 1
77391-12010

AE11#

外側

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-20090

AE11#

 3
77651A - CUSHION, FUEL TANK, NO.1
77651-20090

AE11#

 3
77651A - CUSHION, FUEL TANK, NO.1
77651-20090

AE11#

 3
77681 - SEAT, FUEL TANK BAND, RH
77681-32060

AE11#

 1
77682 - SEAT, FUEL TANK BAND, LH
77681-32060

AE11#

 1
Common parts
90119-06347
90119-06351
90119-06398
90119-10252
90119-10922
90159-40155
90159-50219
90269-06013
90460-22002
90460-46003
90467-08043
90467-12056
90469-01003
91651-40616
93319-A4010
96713-19008
Linked diagrams
2211
8401

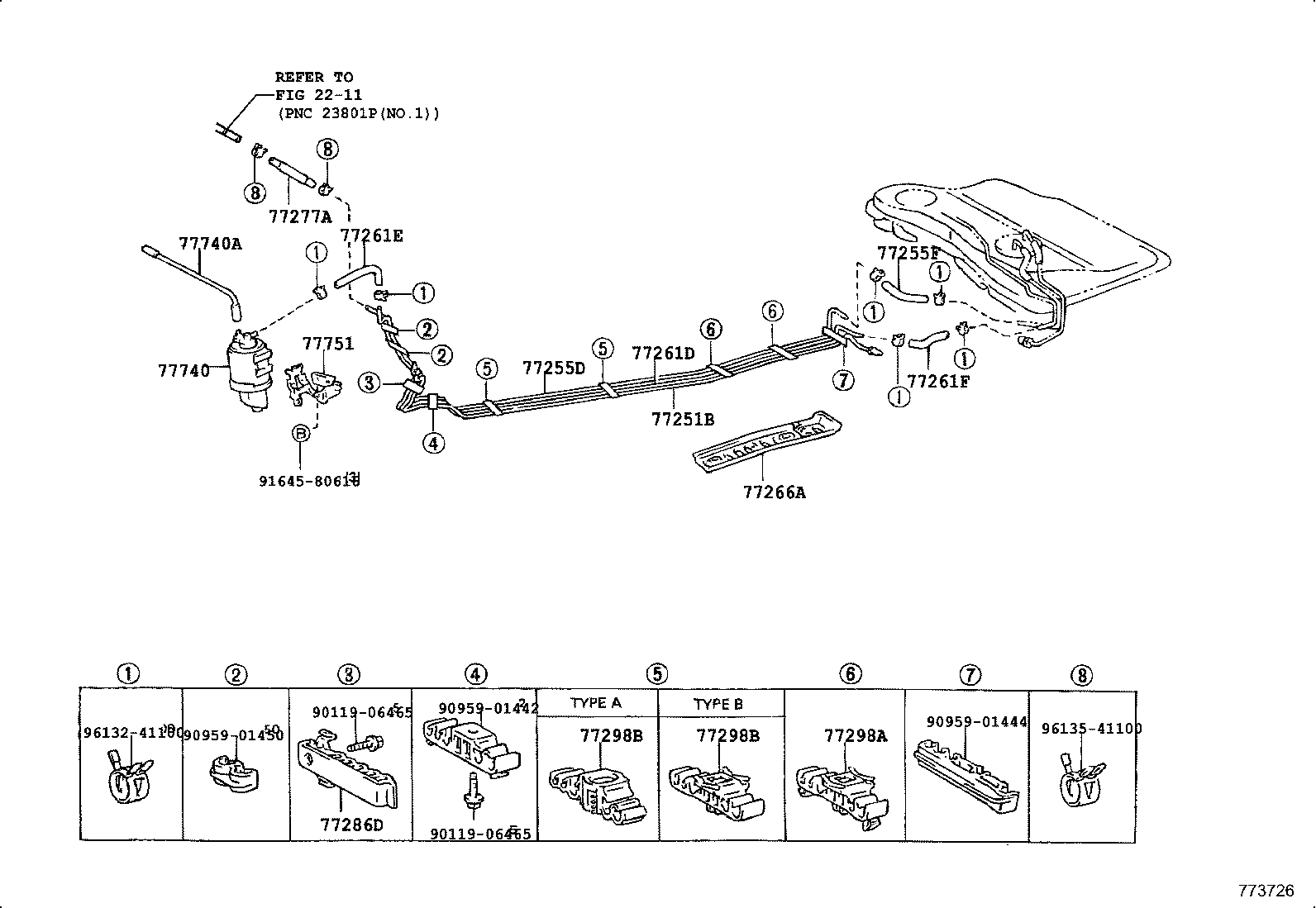

ILLUST NO. 2 OF 2(9508- )AE111

Click highlighted areas on diagram

diagram 2211 77251B 77255D 77255F 77261D 77261E 77261F 77266A 77277A 77286D 77298A 77298B 77298B 77740 77740A 77751 9011906465 9011906465 9095901442 9095901444 9095901450 9164580616 9613241100 9613541100
Part # Description Qty Price
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

AE11#

*H,L=130

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

AE11#

*H,L=160

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77267-12130

AE11#

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-12040

AE11#

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-12030

AE11#

 2
77298B - CLAMP, FUEL TUBE, NO.4
77298-12050

AE11#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
77298-12040

AE11#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
77298B - CLAMP, FUEL TUBE, NO.4
77298-12050

AE11#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 2
77298-12040

AE11#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
77751 - BRACKET, CHARCOAL CANISTER BASE
77750-12080

AE11#

 1
Common parts
90119-06465
90959-01442
90959-01444
90959-01450
91645-80616
96132-41100
96135-41100
Linked diagrams
2211
