AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

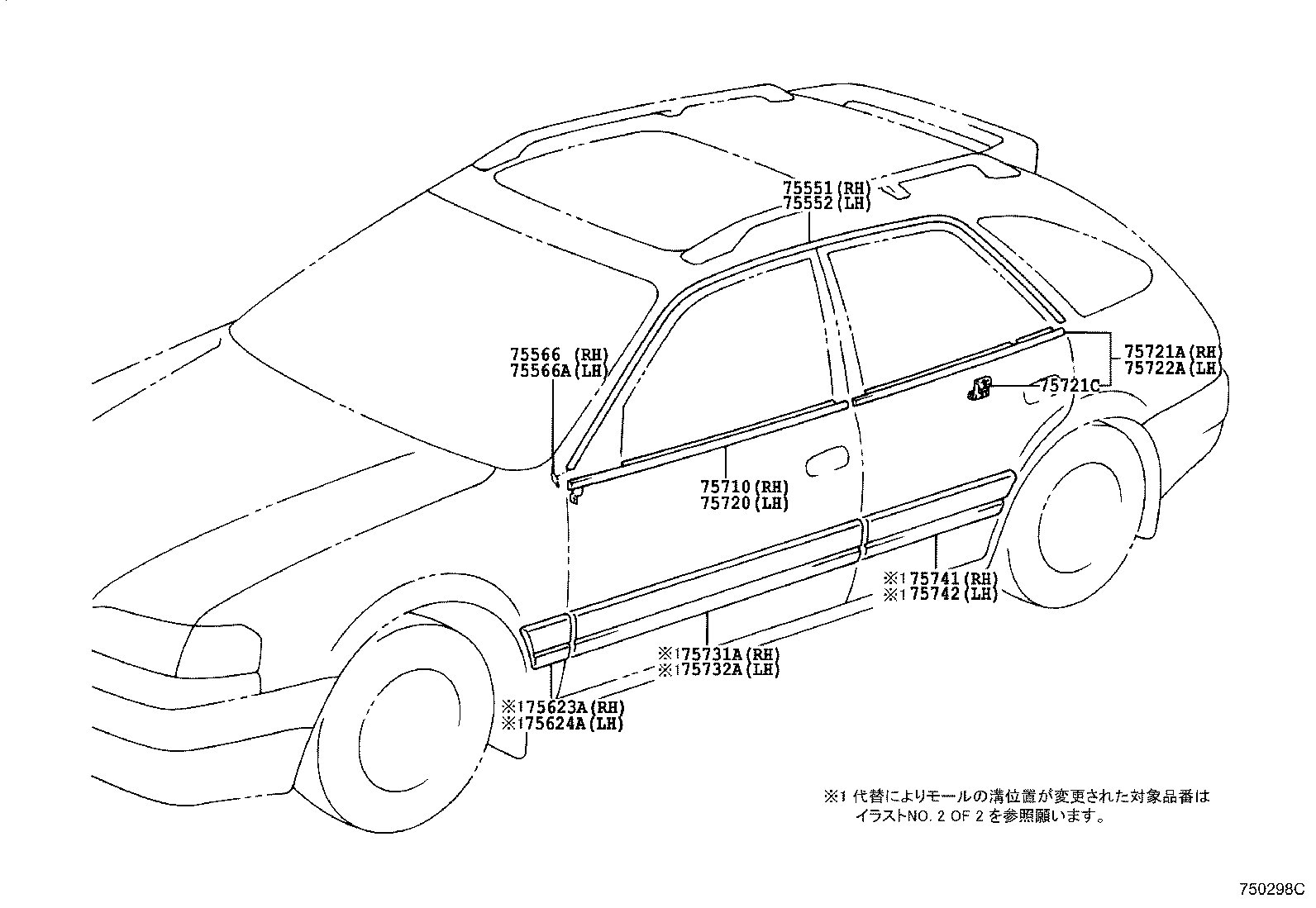

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

diagram 75551 75552 75566 75566A 75623A 75624A 75710 75720 75721A 75721C 75722A 75731A 75732A 75741 75742
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-13130

AE11#

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-13130

AE11#

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12720

AE111,114..ROSSO

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12720

AE111,114..ROSSO

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-12650

AE11#

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-12650

AE11#

 1
75721A - MOULDING, REAR DOOR BELT, RH
75721-12400

AE11#

 1
75722A - MOULDING, REAR DOOR BELT, LH
75722-12400

AE11#

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-1A430

AE111,114..ROSSO

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-1A270

AE111,114..ROSSO

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-1A020

AE111,114..ROSSO

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-1A010

AE111,114..ROSSO

 1

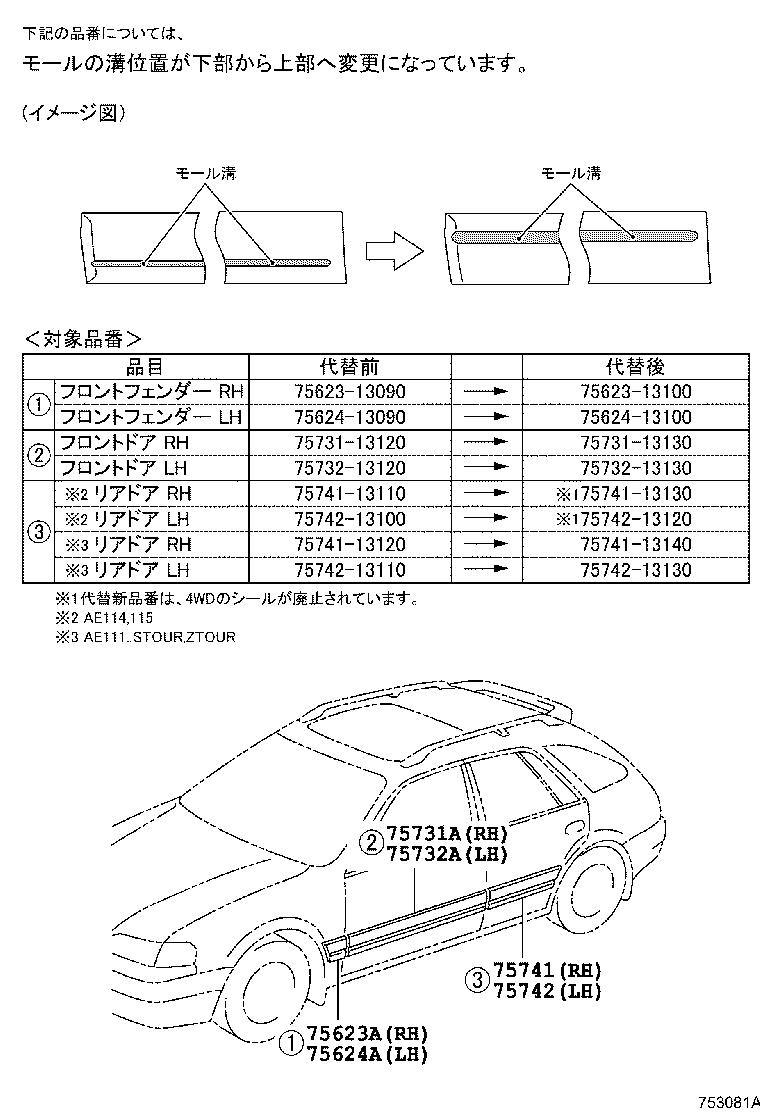

ILLUST NO. 2 OF 2(9508- )

Click highlighted areas on diagram

diagram 75623A 75624A 75731A 75732A 75741 75742
Part # Description Qty Price
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12720

AE111,114..ROSSO

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12720

AE111,114..ROSSO

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-1A430

AE111,114..ROSSO

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-1A270

AE111,114..ROSSO

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-1A020

AE111,114..ROSSO

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-1A010

AE111,114..ROSSO

 1
