AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

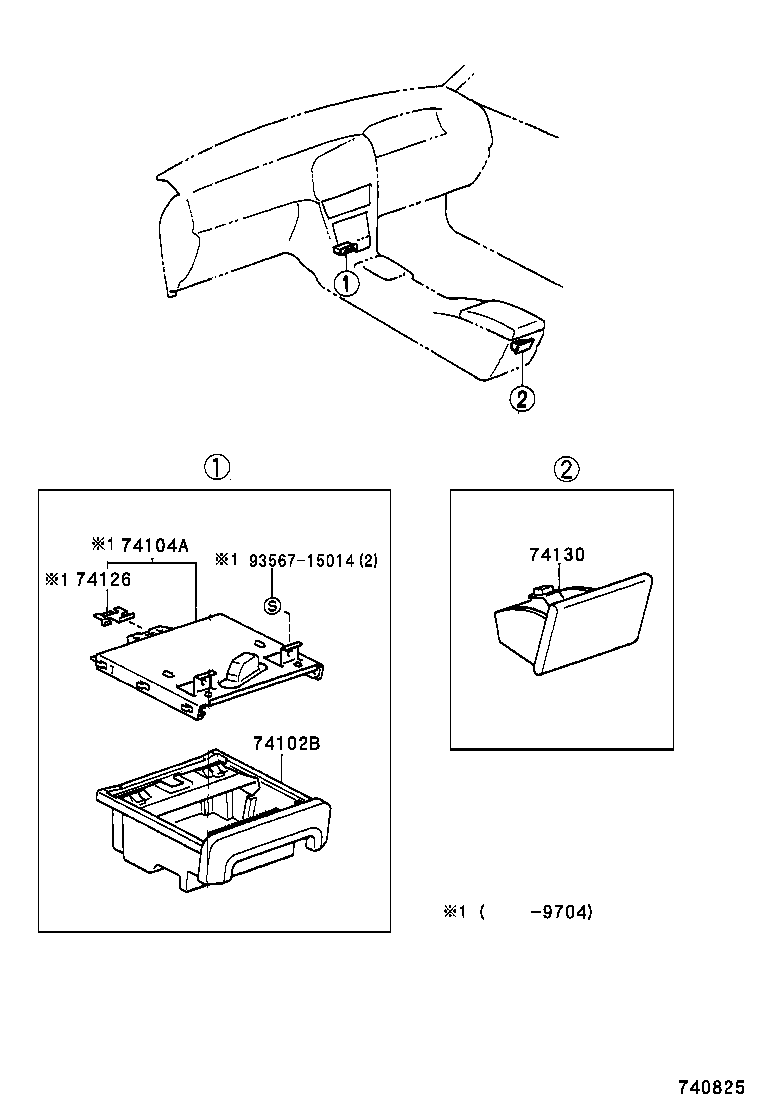

Click highlighted areas on diagram

diagram 74102B 74104A 74126 74130 9356715014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-12220

AE11#

 1
74102-12270B2

AE111,114..ROSSO

GRAY,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-12230

AE11#

 1
74126 - SUPPORT, FRONT ASH RECEPTACLE RET, NO.3
74126-32010

AE11#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-12020B3

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
74109-12020P0

AE11#

SHADOW GRAY,TRIM1#

 1
Common parts
93567-15014
