AE111G-CWMBK (1998)
Toyota Sprinter Carib

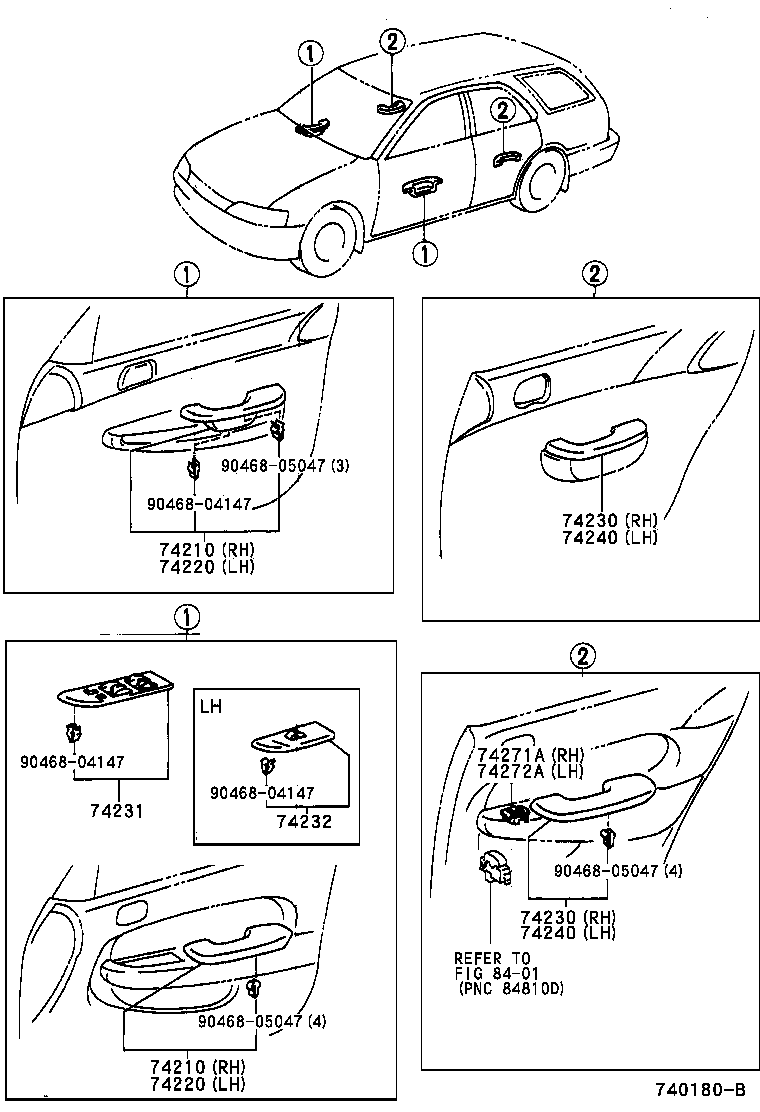

ILLUST NO. 1 OF 2(9508- )
ｱ-ﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12180B2 |
AE111,114..ROSSO ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12180B2 |
AE111,114..ROSSO ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12160B2 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12160B2 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12180B2 |
AE111,114..ROSSO ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12180B2 |
AE111,114..ROSSO ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),MD.CHARCOAL,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-12140B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 74231-12350B0 |
AE111,114..ROSSO GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-12120B0 |
AE11# SHADOW GRAY,TRIM1# |
1 | ||
| 74232-12260B0 |
AE111,114..ROSSO ﾓｸﾒ,GRAY,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12160B2 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12160B2 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 84656-32020B2 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 84656-32020B2 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90468-04147 | ||||
| 90468-05047 | ||||
| Linked diagrams | ||||
| 8401 | ||||

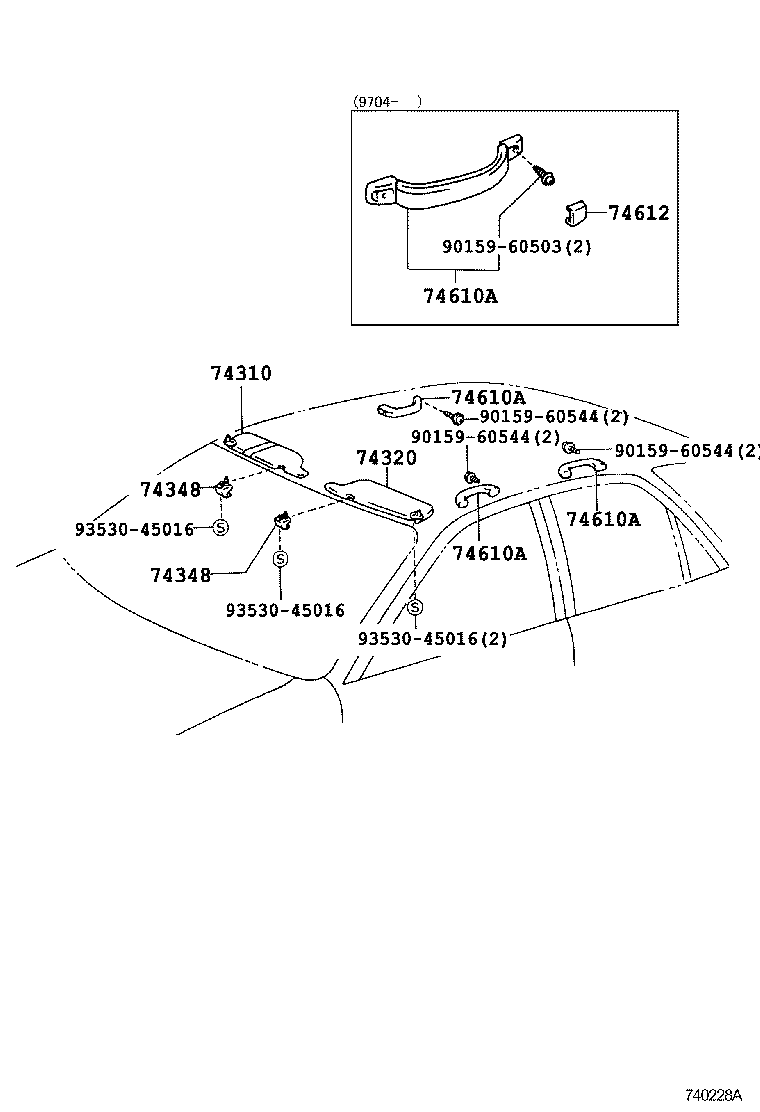

ILLUST NO. 2 OF 2(9508- )
ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1A640B1 |
AE11# LT. GRAY,TRIM1# |
1 | ||
| 74310-1E110B2 |
AE111,114..ROSSO MEDIUM CHARCOAL.,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1E060B2 |
AE111,114..ROSSO ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020B6 |
AE11# LT.GRAY,TRIM1# |
2 | ||
| 74348-12030B1 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-22020B6 |
AE11# LT.GRAY,TRIM1# |
2 | ||
| 74348-12030B1 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-20030B3 |
AE11# LT.GRAY,TRIM1# |
3 | ||
| 74610-22050B3 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
4 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-20030B3 |
AE11# LT.GRAY,TRIM1# |
3 | ||
| 74610-22050B3 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
4 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-20030B3 |
AE11# LT.GRAY,TRIM1# |
3 | ||
| 74610-22050B3 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
4 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-20030B3 |
AE11# LT.GRAY,TRIM1# |
3 | ||
| 74610-22050B3 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-22050B7 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
8 | ||
| Common parts | ||||
| 90159-60503 | ||||
| 90159-60544 | ||||
| 93530-45016 | ||||
