AE111G-CWMBK (1998)
Toyota Sprinter Carib
Production
Apr 1998
-
Jul 2002
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

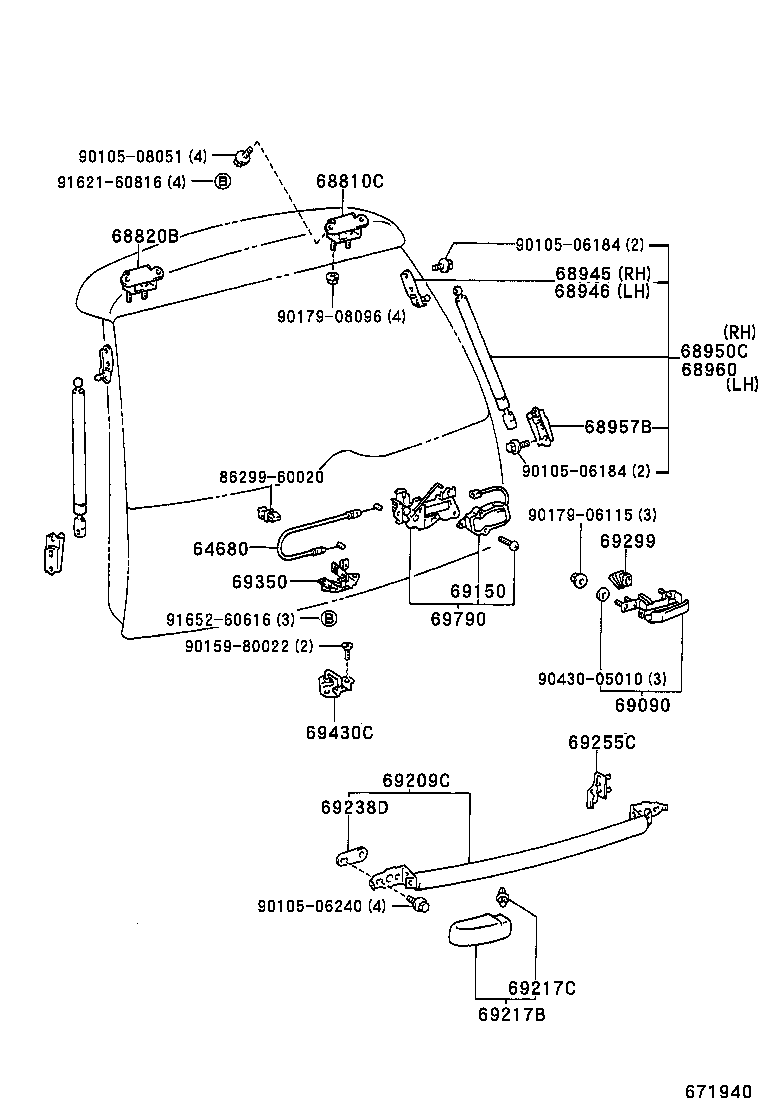

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64680 - CABLE ASSY, BACK DOOR LOCK CONTROL | ||||
| 64680-13020 |
AE11# |
1 | ||
| 64680-13021 |
AE11# |
1 | ||
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-21040 |
AE11# |
1 | ||
| 68820B - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-21040 |
AE11# |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-13010 |
AE11# |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-13010 |
AE11# |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-80044 |
AE11# ｱﾘ(ﾃ-ﾙ ｹﾞ-ﾄ ｸﾞﾘﾂﾌﾟ) |
1 | ||
| 68950-80044 |
AE111,114..ROSSO ｱﾘ(ﾃ-ﾙ ｹﾞ-ﾄ ｸﾞﾘﾂﾌﾟ) |
1 | ||
| 68950-80043 |
AE11# |
1 | ||
| 68957B - BRACKET, BACK DOOR STAY, LOWER | ||||
| 68957-13030 |
AE11# |
2 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-19595 |
AE11# |
1 | ||
| 68960-19605 |
AE111,114..ROSSO ｱﾘ(ﾃ-ﾙ ｹﾞ-ﾄ ｸﾞﾘﾂﾌﾟ) |
1 | ||
| 68960-19605 |
AE11# ｱﾘ(ﾃ-ﾙ ｹﾞ-ﾄ ｸﾞﾘﾂﾌﾟ) |
1 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-13010B0 |
AE11# LT.GRAY PEARL ME.,1A7 |
1 | ||
| 69090-13010J0 |
AE11# DK.BLUE MC.,2AL |
1 | ||
| 69090-13010D2 |
AE111,114..ROSSO RED,3M7 |
1 | ||
| 69090-13010C0 |
AE111,114..BZT,ROSSO BLACK ME,205 |
1 | ||
| 69090-13010J1 |
AE11#..ROSSO,STOUR,ZTOUR BLUE M.M,8L5 |
1 | ||
| 69090-13010D3 |
AE111,114..ROSSO SUPER RED II,3E5 |
1 | ||
| 69150 - ACTUATOR ASSY, BACK DOOR LOCK | ||||
| 69150-13010 |
AE11# |
1 | ||
| 69209C - HANDLE SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 69209-13010 |
AE11# |
1 | ||
| 69217B - COVER, BACK DOOR OUTSIDE HANDLE | ||||
| 69217-13010 |
AE11# |
2 | ||
| 69217C - RETAINER, BACK DOOR OUTSIDE HANDLE COVER | ||||
| 90467-08179 |
AE11# |
2 | ||
| 69238D - CUSHION, BACK DOOR OUTSIDE HANDLE | ||||
| 69238-13010 |
AE11# |
2 | ||
| 69255C - PROTECTOR, DOOR OUTSIDE HANDLE | ||||
| 69255-13010 |
AE11# |
2 | ||
| 69299 - GROMMET, BACK DOOR HANDLE | ||||
| 69299-13030 |
AE11# |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69301-13010 |
AE11# |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-12250 |
AE11# |
1 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69790-13020 |
AE11# |
1 | ||
| Common parts | ||||
| 86299-60020 | ||||
| 90105-06184 | ||||
| 90105-06240 | ||||
| 90105-08051 | ||||
| 90159-80022 | ||||
| 90179-06115 | ||||
| 90179-08096 | ||||
| 90430-05010 | ||||
| 91621-60816 | ||||
| 91652-60616 | ||||
