AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

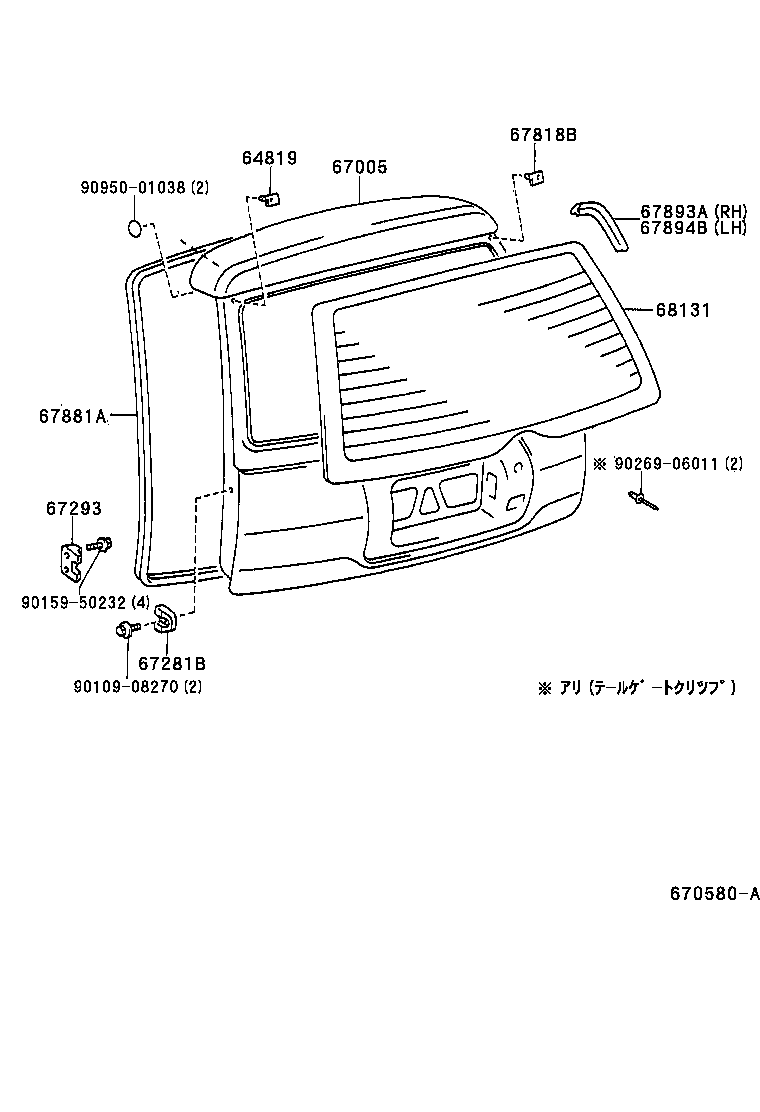

ILLUST NO. 2 OF 2(9508- )

Click highlighted areas on diagram

diagram 64819 67005 67281B 67293 67818B 67881A 67893A 67894B 68131 9010908270 9015950232 9026906011 9095001038
Part # Description Qty Price
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-13010

AE11#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1F401

AE111,114..ROSSO

ｱﾘ(ﾃ-ﾙ ｹﾞ-ﾄ ｸﾞﾘﾂﾌﾟ & ﾘﾔ ｽﾎﾟｲﾗ)

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-12061

AE11#

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-12050

AE11#

 2
67818B - SPACER, BACK WINDOW GLASS
64818-13030

AE11#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-13200

AE11#

 1
67893A - PROTECTOR, BACK DOOR PANEL, NO.1
67893-12010

AE11#

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
67894-12010

AE11#

 1
Common parts
90109-08270
90159-50232
90269-06011
90950-01038

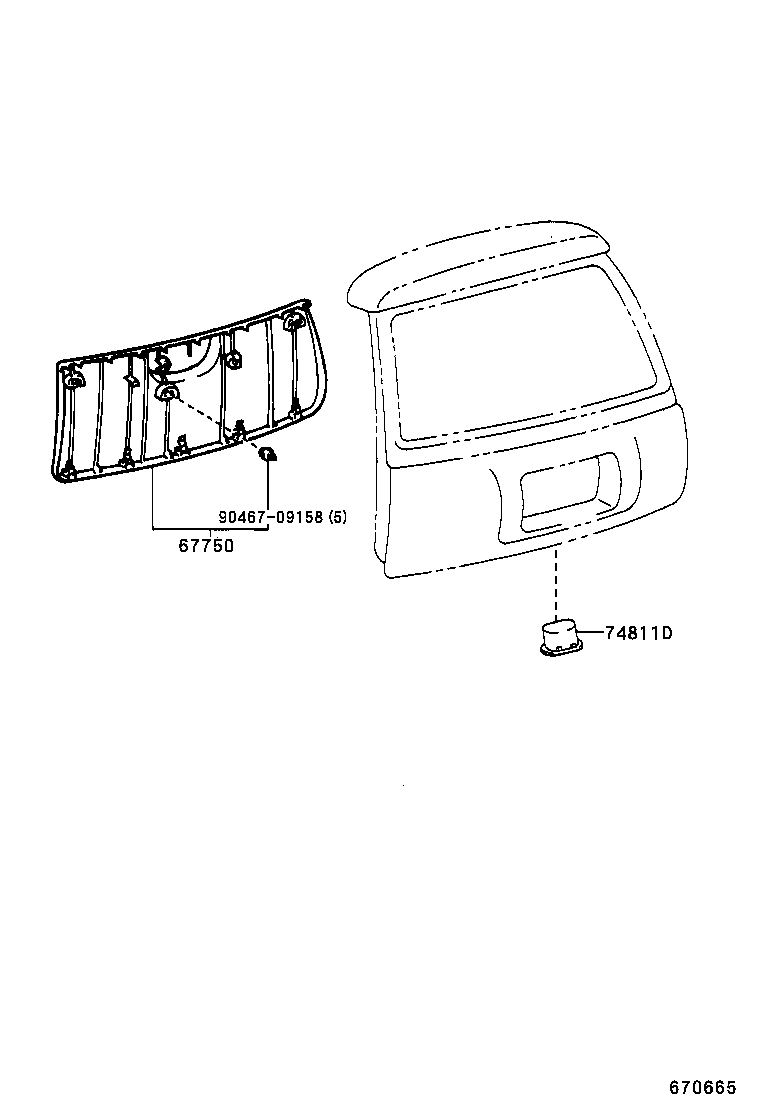

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

diagram 67750 74811D 9046709158
Part # Description Qty Price
67750 - BOARD ASSY, BACK DOOR TRIM
67750-13060B0

AE11#

SHADOW GRAY,TRIM1#

 1
67750-13070B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67750-13060B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
74811D - HANDLE, DOOR PULL
74811-13010C0

AE11#

BLACK,TRIM1#

 1
Common parts
90467-09158
