AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

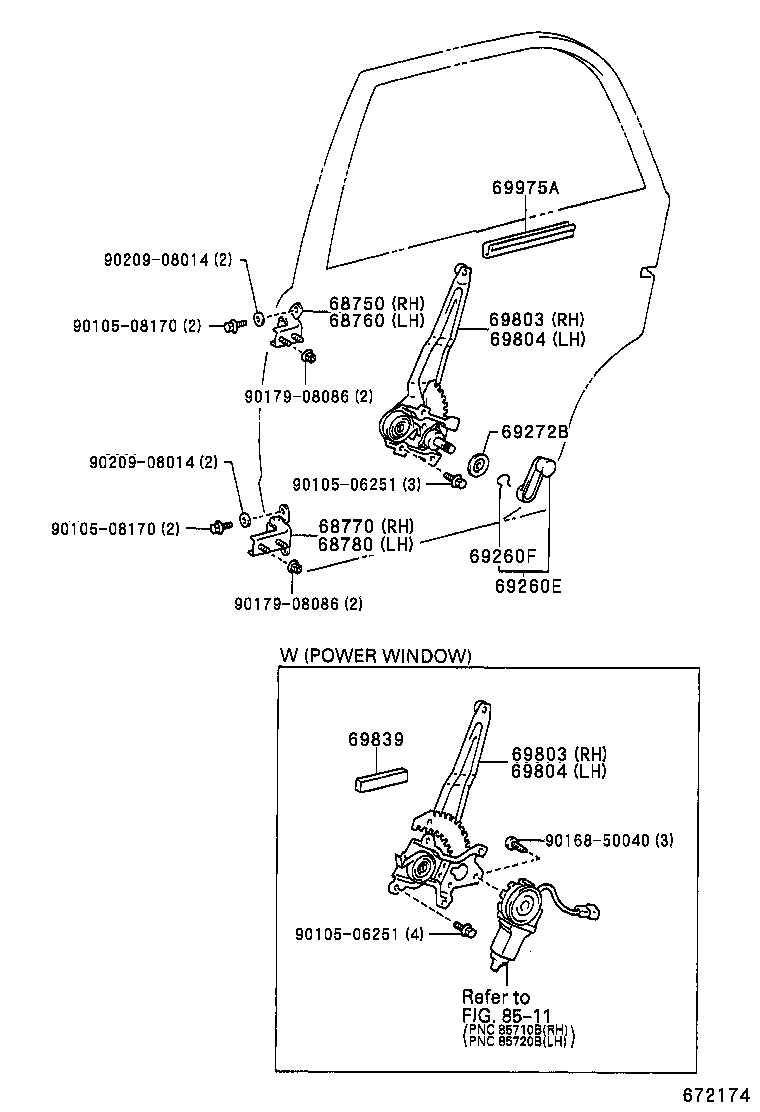

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69839 69975A 9010506251 9010506251 9010508170 9010508170 9016850040 9017908086 9017908086 9020908014 9020908014
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32060

AE11#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32060

AE11#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12100

AE11#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12090

AE11#

 1
69839 - PAD, REAR DOOR WINDOW REGULATOR
69839-12020

AE11#

 4
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-12010

AE111,114..ROSSO

 2
Common parts
90105-06251
90105-08170
90168-50040
90179-08086
90209-08014
