AE111G-CWMBK (1998)
Toyota Sprinter Carib

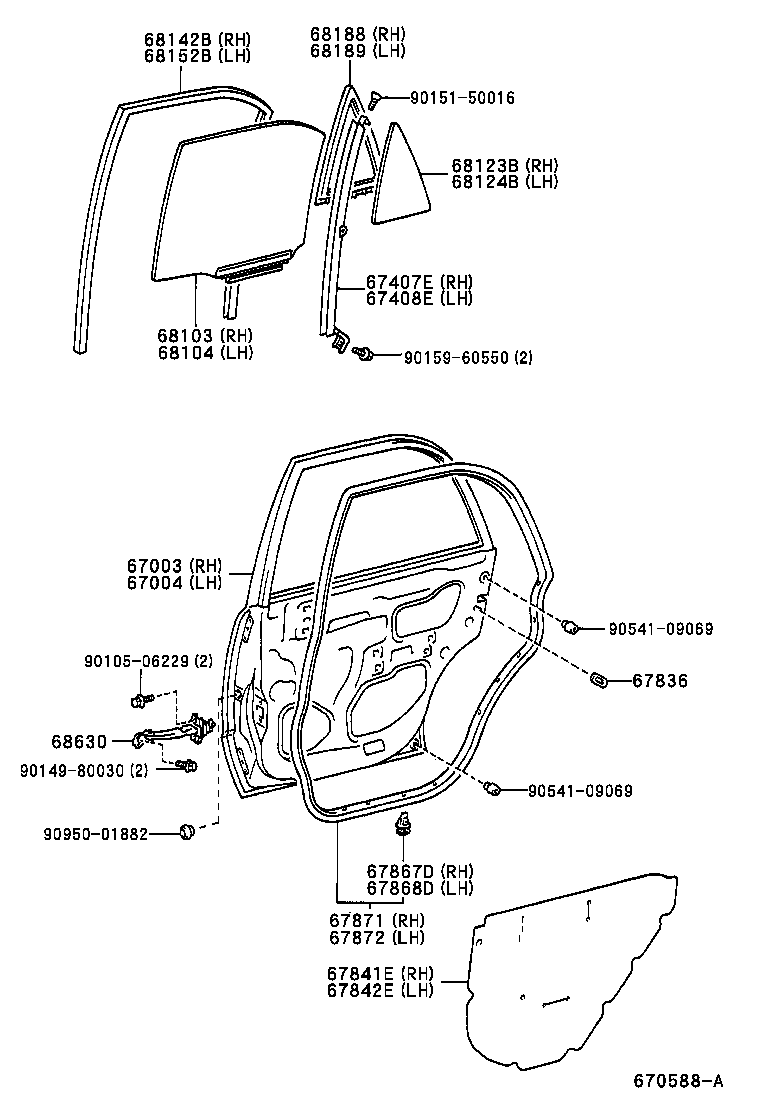

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12740 |
AE11# |
1 | ||
| 67003-12780 |
AE111,114..ROSSO |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12780 |
AE111,114..ROSSO |
1 | ||
| 67004-12740 |
AE11# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12230 |
AE11# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12230 |
AE11# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
AE11# |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12290 |
AE11# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12120 |
AE11# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AE11# |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AE11# |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12420 |
AE11# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12420 |
AE11# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12530 |
AE11# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12540 |
AE11# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12510 |
AE11# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12510 |
AE11# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-12210 |
AE11# |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-12120 |
AE11# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12270 |
AE11# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12270 |
AE11# |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68640-12030 |
AE11# (J),左側 |
1 | ||
| 68640-02040 |
AE11# (L),左側 |
1 | ||
| 68630-02040 |
AE11# (L),右側 |
1 | ||
| 68630-12080 |
AE11# (J),右側 |
1 | ||
| Common parts | ||||
| 90105-06229 | ||||
| 90149-80030 | ||||
| 90151-50016 | ||||
| 90159-60550 | ||||
| 90541-09069 | ||||
| 90950-01882 | ||||
ILLUST NO. 1 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-13550B0 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-13550B0 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-06133B4 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-13550B0 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-13550B0 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68174-12080 |
AE11# 左側 |
1 | ||
| 68173-12220 |
AE11# 右側 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68174-12080 |
AE11# 左側 |
1 | ||
| 68173-12220 |
AE11# 右側 |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B1 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12070B0 |
AE11# SHADOW GRAY,TRIM1# |
2 | ||
| 69751-12070B1 |
AE111,114..ROSSO MD.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90901-89022 | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 8401 | ||||
