AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

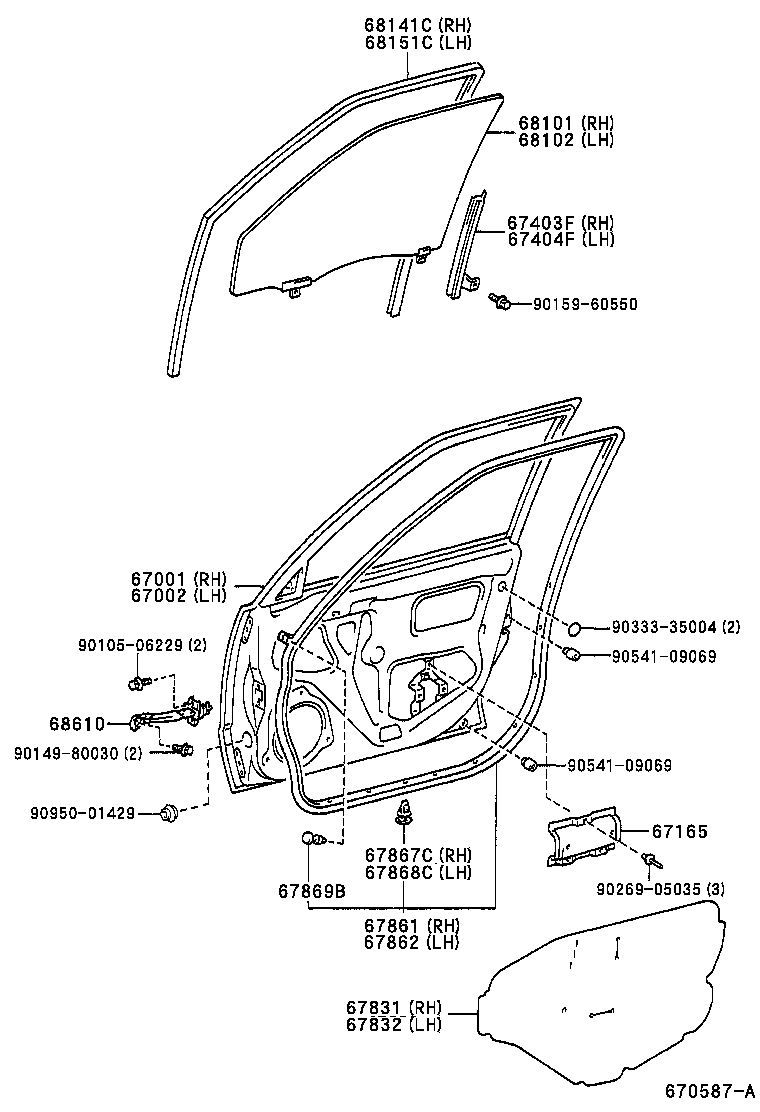

ILLUST NO. 2 OF 2(9508- )

Click highlighted areas on diagram

diagram 67001 67002 67165 67403F 67404F 67831 67832 67861 67862 67867C 67868C 67869B 68101 68102 68141C 68151C 68610 9010506229 9014980030 9015960550 9026905035 9033335004 9054109069 9054109069 9095001429
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A460

AE11#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A440

AE11#

 1
67165 - EXTENSION,FRONT DOOR INSIDE PANEL REINFORCEMENT, FRONT
67165-12010

AE11#

 2
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12210

AE11#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12210

AE11#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12550

AE11#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-12350

AE11#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-12850

AE11#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12810

AE11#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

AE11#

 14
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

AE11#

 14
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12050

AE11#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-12820

AE11#

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68101-1A370

AE11#

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-12820

AE11#

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68102-1A370

AE11#

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12470

AE11#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-12180

AE11#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-12150

AE11#

(J),右側

 1
68620-02040

AE11#

(L),左側

 1
68620-12060

AE11#

(J),左側

 1
68610-02040

AE11#

(L),右側

 1
Common parts
90105-06229
90149-80030
90159-60550
90269-05035
90333-35004
90541-09069
90950-01429

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

diagram 67491A 67491A 67492A 67492A 67499 67499 67601 67601 67601B 67601B 67601H 67601H 67602 67602 67602A 67602A 67651H 67652C 68170 68170 69751E 69751E 9016460018 9016460018 9090189022 9090189022 9095006105 9095006105
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12270

AE11#

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12270

AE11#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12350

AE11#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12350

AE11#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-30070

AE11#

 2
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-30070

AE11#

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-13640B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-13640B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-06133B4

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 4
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-06133B4

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-13570B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-13570B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12170

AE11#

左側

 1
68171-12250

AE11#

右側

 1
68171-12270

AE111,114..ROSSO

右側

 1
68172-12190

AE111,114..ROSSO

左側

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-12170

AE11#

左側

 1
68171-12250

AE11#

右側

 1
68171-12270

AE111,114..ROSSO

右側

 1
68172-12190

AE111,114..ROSSO

左側

 1
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-12070B0

AE11#

SHADOW GRAY,TRIM1#

 2
69751-12070B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-12070B0

AE11#

SHADOW GRAY,TRIM1#

 2
69751-12070B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 2
Common parts
90164-60018
90901-89022
90950-06105
