AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

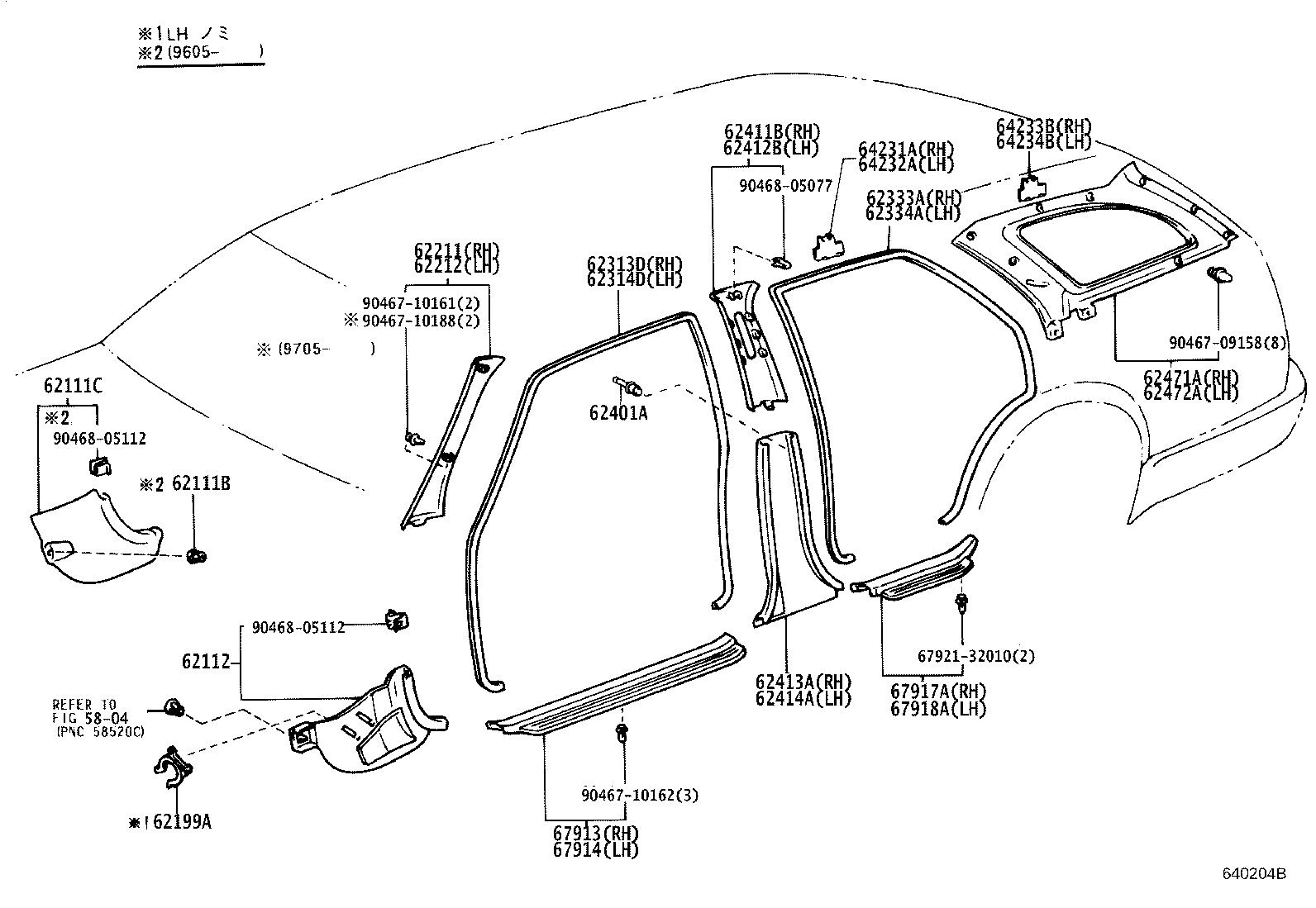

Click highlighted areas on diagram

diagram 5804 62111B 62111C 62112 62199A 62211 62212 62313D 62314D 62333A 62334A 62401A 62411B 62412B 62413A 62414A 62471A 62472A 64231A 64232A 64233B 64234B 67913 67914 67917A 67918A 6792132010 9046709158 9046710161 9046710162 9046710188 9046805077 9046805112 9046805112
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-12231B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62111-12230B0

AE11#

SHADOW GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-12230B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62112-12230B0

AE11#

SHADOW GRAY,TRIM1#

 1
62199A - HOLDER, FUSEE
90468-25003

AE11#

 2
62211 - GARNISH, FRONT PILLAR, RH
62211-12300B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62211-12280B0

AE11#

LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-12280B0

AE11#

LT.GRAY,TRIM1#

 1
62212-12300B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-12150B0

AE11#

SHADOW GRAY,TRIM1#

 1
62313-12180B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-12060B0

AE11#

SHADOW GRAY,TRIM1#

 1
62314-12080B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-12120B0

AE11#

SHADOW GRAY,TRIM1#

 1
62333-12140B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62334-12040B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62334-12020B0

AE11#

SHADOW GRAY,TRIM1#

 1
62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
90467-07071B6

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 2
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-12490B0

AE11#

LT.GRAY,TRIM1#

 1
62411-12500B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-12500B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62412-12490B0

AE11#

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-12210B0

AE11#

SHADOW GRAY,TRIM1#

 1
62413-12220B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-12210B0

AE11#

SHADOW GRAY,TRIM1#

 1
62414-12220B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62405-13040B1

AE11#

LT.GRAY,TRIM1#

 1
62405-13050B0

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62406-13050B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
62406-13040B1

AE11#

LT.GRAY,TRIM1#

 1
64231A - HOOK, ROOM PARTITION NET, FRONT RH
64231-13010B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
64232A - HOOK, ROOM PARTITION NET, FRONT LH
64232-13010B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
64233B - HOOK, ROOM PARTITION NET, REAR RH
64233-13010B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
64234B - HOOK, ROOM PARTITION NET, REAR LH
64233-13010B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-12240B0

AE11#

SHADOW GRAY,TRIM1#

 1
67913-12240B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-12210B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67914-12210B0

AE11#

SHADOW GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-12110B0

AE11#

SHADOW GRAY,TRIM1#

 1
67917-12110B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-12100B0

AE11#

SHADOW GRAY,TRIM1#

 1
67918-12100B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
Common parts
67921-32010
90467-09158
90467-10161
90467-10162
90467-10188
90468-05077
90468-05112
Linked diagrams
5804
