AE111G-CWMBK (1998)
Toyota Sprinter Carib
Production
Apr 1998
-
Jul 2002
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

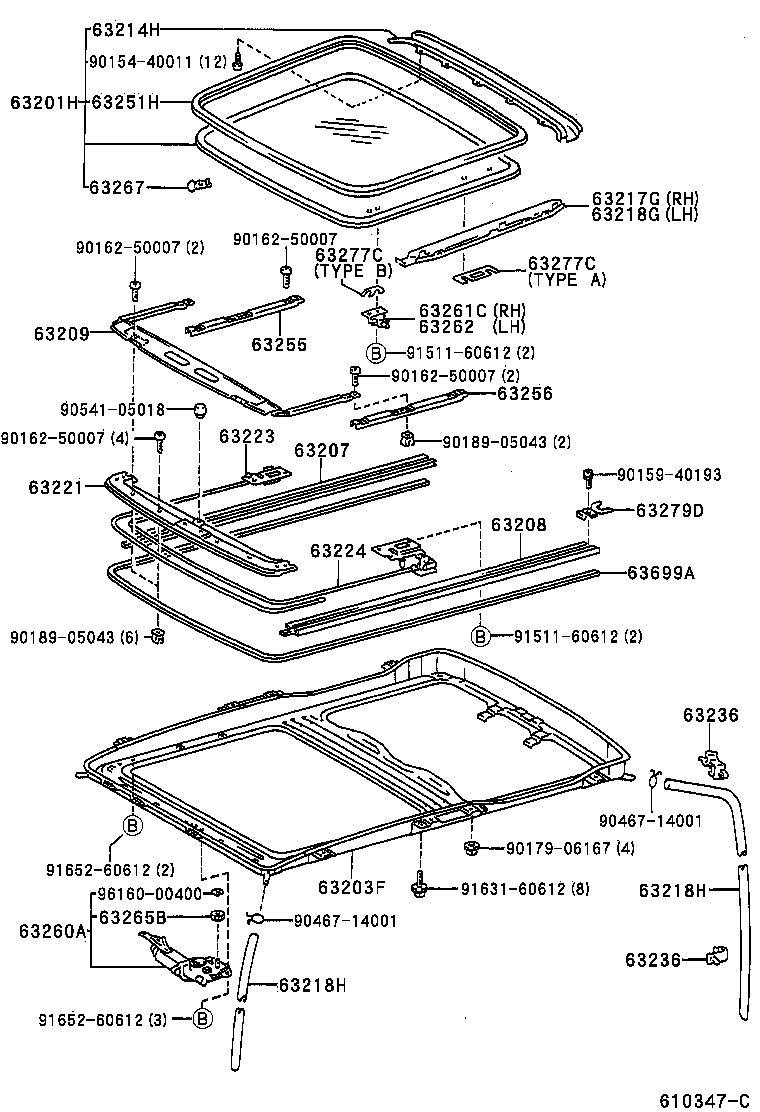

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-13010 |
AE11# |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-13010 |
AE11# |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-13010 |
AE11# |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-13010 |
AE11# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-13010 |
AE11# |
1 | ||
| 63214H - PANEL, SLIDING ROOF, REAR | ||||
| 63214-13010 |
AE11# |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-13010 |
AE11# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-13010 |
AE11# |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13020 |
AE11# MARKING WHITE |
2 | ||
| 63249-12210 |
AE11# |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13020 |
AE11# MARKING WHITE |
2 | ||
| 63249-12210 |
AE11# |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-13010 |
AE11# |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-13010 |
AE11# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-13010 |
AE11# |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-13020 |
AE11# 下側 |
2 | ||
| 63236-13010 |
AE11# 上側 |
2 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-13020 |
AE11# 下側 |
2 | ||
| 63236-13010 |
AE11# 上側 |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-13010 |
AE11# |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-13010 |
AE11# |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-13010 |
AE11# |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-13010 |
AE11# |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-10030 |
AE11# |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-10020 |
AE11# |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
AE11# |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-12020 |
AE11# |
2 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
AE11# 厚さ=1.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63277-30020 |
AE11# 厚さ=1.0,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63277-32010 |
AE11# 厚さ=2.0,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63277-32020 |
AE11# 厚さ=2.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
AE11# 厚さ=1.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63277-30020 |
AE11# 厚さ=1.0,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63277-32010 |
AE11# 厚さ=2.0,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63277-32020 |
AE11# 厚さ=2.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-13010 |
AE11# |
2 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12040 |
AE11# |
1 | ||
| Common parts | ||||
| 90154-40011 | ||||
| 90159-40193 | ||||
| 90162-50007 | ||||
| 90179-06167 | ||||
| 90189-05043 | ||||
| 90467-14001 | ||||
| 90541-05018 | ||||
| 91511-60612 | ||||
| 91631-60612 | ||||
| 91652-60612 | ||||
| 96160-00400 | ||||
(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-13030 |
AE11# |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-13030 |
AE11# |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13030 |
AE11# |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13030 |
AE11# |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13030 |
AE11# |
2 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-13020 |
AE11# |
2 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-13020 |
AE11# |
2 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-13040 |
AE11# |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-13040 |
AE11# |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-13030 |
AE11# |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-13030 |
AE11# |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-13040 |
AE11# |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-13040 |
AE11# |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-13020 |
AE11# |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-13020 |
AE11# |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-13030 |
AE11# |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-13030 |
AE11# |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-13030 |
AE11# |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-13030 |
AE11# |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-13040 |
AE11# |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-13040 |
AE11# |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13030 |
AE11# |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13030 |
AE11# |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13030 |
AE11# |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13030 |
AE11# |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-13040 |
AE11# |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-13040 |
AE11# |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-13030 |
AE11# |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-13030 |
AE11# |
1 | ||
| Common parts | ||||
| 90105-06240 | ||||
| 90110-06026 | ||||
| 90152-50024 | ||||
| 90467-11094 | ||||
| 91631-60612 | ||||
(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13140 |
AE11# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13140 |
AE11# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13180 |
AE11# ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13180 |
AE11# ｱﾘ(ﾙ-ﾌ ﾚ-ﾙ) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-13040 |
AE11# |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-13040 |
AE11# |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-13030 |
AE11# |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-13070 |
AE11# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63127-13010 |
AE11# |
1 | ||
| 63143-13040 |
AE11# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63127-13010 |
AE11# |
1 | ||
| 63143-13040 |
AE11# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-13010 |
AE11# |
1 | ||
| Common parts | ||||
| 90269-03067 | ||||
| 91631-60612 | ||||
