AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

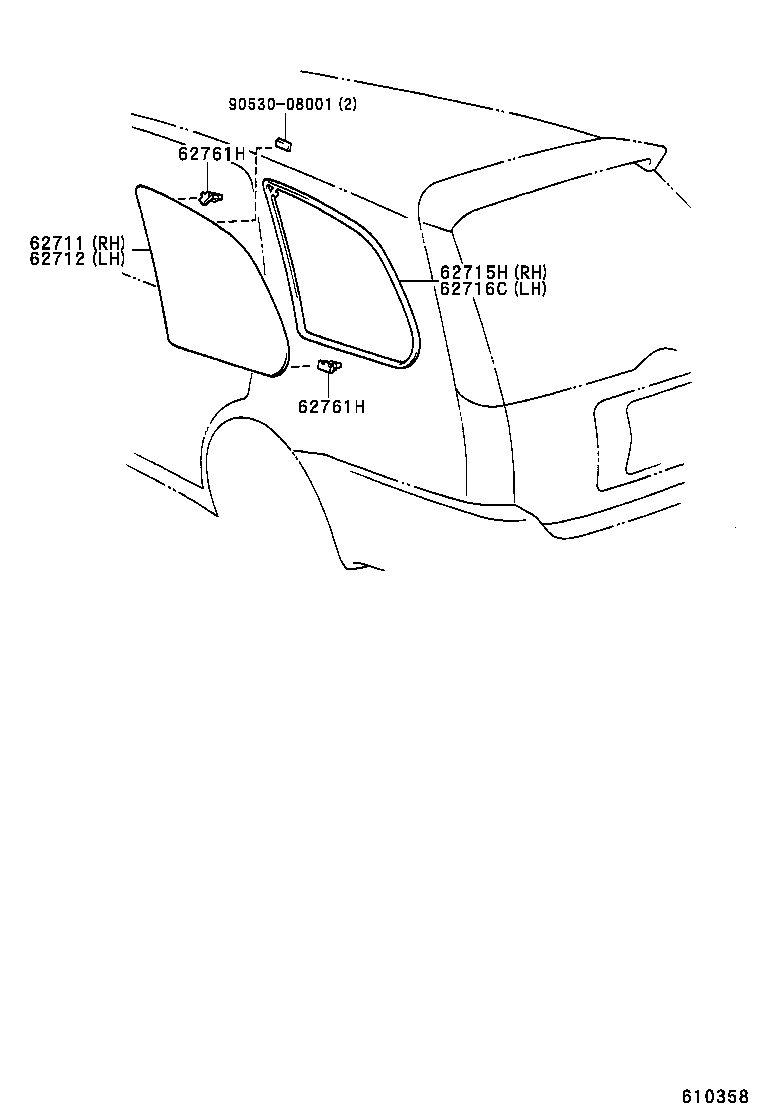

Click highlighted areas on diagram

diagram 62711 62712 62715H 62716C 62761H 62761H 9053008001
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-13210

AE111,114..ROSSO

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾌﾟﾗｲﾊﾞｼ- ｶﾞﾗｽ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62711-13160

AE111,114..ROSSO

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-13160

AE111,114..ROSSO

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62712-13210

AE111,114..ROSSO

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾌﾟﾗｲﾊﾞｼ- ｶﾞﾗｽ & ﾃﾚﾋﾞ ｱﾝﾃﾅ)

 1
62715H - DAM, QUARTER WINDOW GLASS ADHESIVE, RH
62715-13010

AE11#

 1
62716C - DAM, QUARTER WINDOW GLASS ADHESIVE, LH
62716-13010

AE11#

 1
62761H - RETAINER, QUARTER WINDOW GLASS, FRONT
62761-13010

AE11#

 4
62761H - RETAINER, QUARTER WINDOW GLASS, FRONT
62761-13010

AE11#

 4
Common parts
90530-08001
