AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

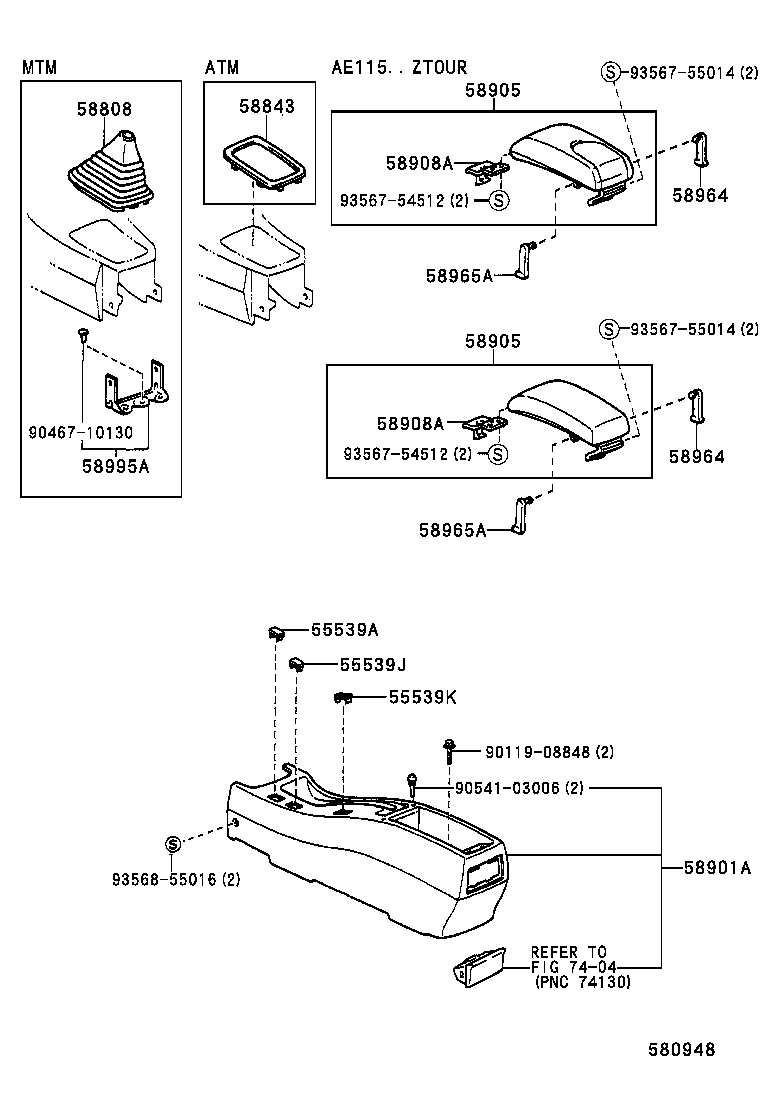

Click highlighted areas on diagram

diagram 55539A 55539J 55539K 58808 58843 58901A 58905 58905 58908A 58908A 58964 58964 58965A 58965A 58995A 7404 9011908848 9046710130 9054103006 9356754512 9356754512 9356755014 9356755014 9356855016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-20020B4

AE114..ROSSO;AE111..ROSSO..5F

MD.CHARCOAL,TRIM1#

 1
55539J - COVER, SPARE SWITCH HOLE
55539-12120B2

AE114..ROSSO;AE111..ROSSO..5F

MD.CHARCOAL,TRIM1#

 1
55539K - COVER, SPARE SWITCH HOLE
55539-12120B2

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
55539-12120B0

AE11#

SHADOW GRAY,TRIM1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-12112P0

AE11#..5F

SHADOW GRAY,TRIM1#

 1
58808-12112B1

AE111,114..ROSSO..5F

DK.CHARCOAL,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12220B1

AE111..ROSSO

MD.CHARCOAL,TRIM1#

 1
58901-12250B0

AE11#

SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12160B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12160B1

AE111,114..ROSSO

MD.CHARCOAL,TRIM1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32040

AE11#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32040

AE11#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12040

AE11#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12040

AE11#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12040

AE11#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12040

AE11#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12080

AE11#..5F

 1
Common parts
90119-08848
90467-10130
90541-03006
93567-54512
93567-55014
93568-55016
Linked diagrams
7404
