AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

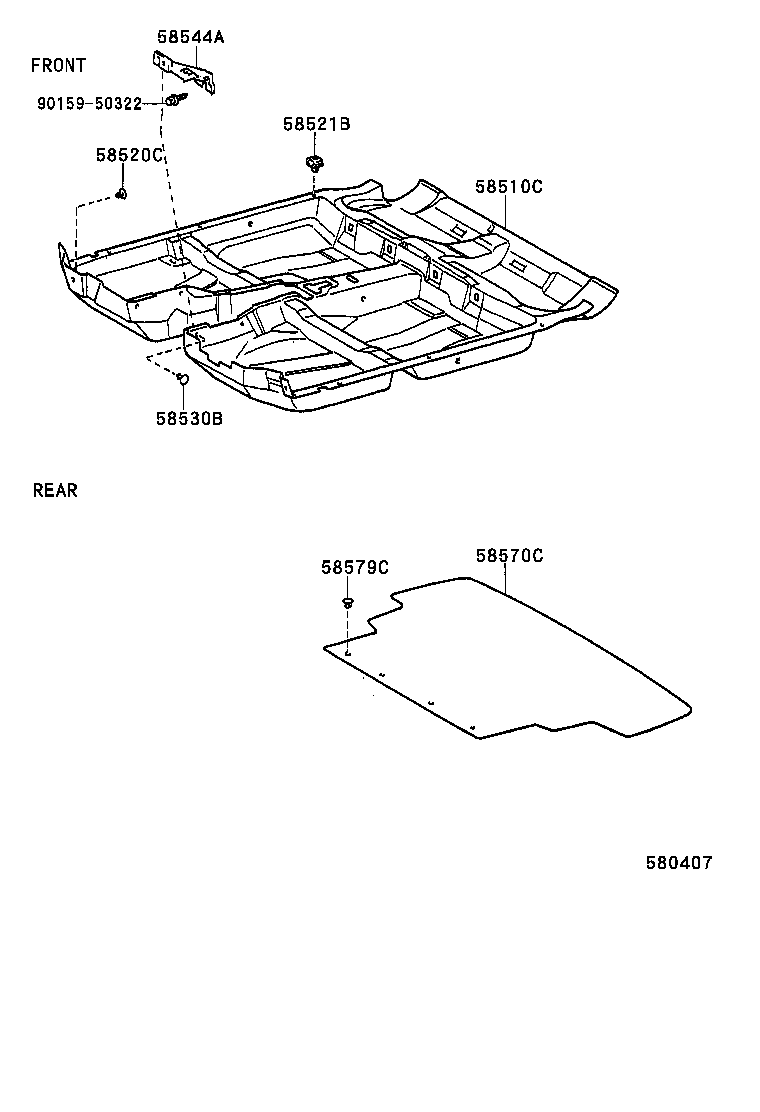

Click highlighted areas on diagram

diagram 58510C 58520C 58521B 58530B 58544A 58570C 58579C 9015950322
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-13420B0

AE11#

ｶﾝﾚｲﾁ ｼﾖｳ,SHADOW GRAY,TRIM1#

 1
58510-13430B0

AE11#

SHADOW GRAY,TRIM1#

 1
58510-1F120B1

AE111..ROSSO

ｶﾝﾚｲﾁ ｼﾖｳ,DARK CHARCOAL,TRIM1#

 1
58510-1F130B1

AE111..ROSSO

DARK CHARCOAL,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906822

AE11#

BLACK,TRIM1#

 1
90467-09068B4

AE111,114..ROSSO

DK.CHARCOAL,TRIM1#

 1
58521B - HOOK, FLOOR CARPET
58521-12120

AE11#

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09118

AE11#

 4
58570C - CARPET ASSY, REAR FLOOR
58571-13150B0

AE111,114..ROSSO

MEDIUM CHARCOAL,TRIM1#

 1
58571-13120B1

AE11#

SHADOW GRAY,TRIM1#

 1
58579C - CLIP, REAR FLOOR CARPET SET
90467-09160C0

AE11#

BLACK,TRIM1#

 4
90467-06089B1

AE111,114..ROSSO

DK.CHARCOAL,TRIM1#

 4
Common parts
90159-50322
