AE111G-CWMBK (1998)
Toyota Sprinter Carib
Production
Apr 1998
-
Jul 2002
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

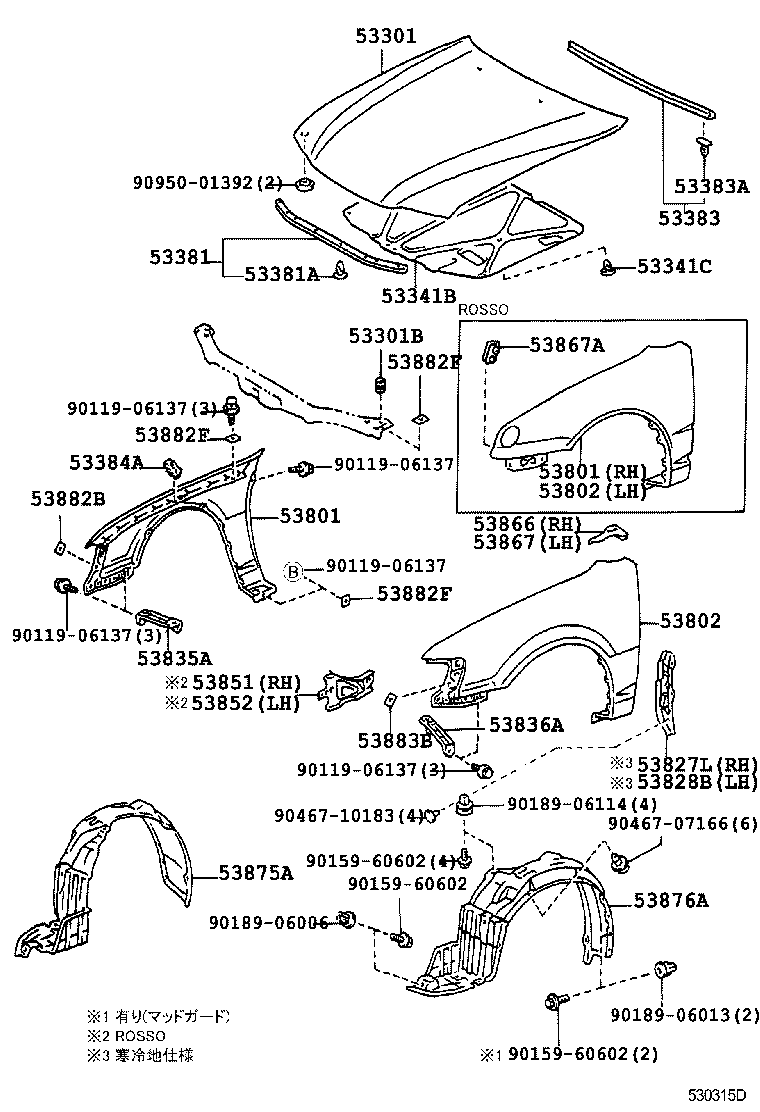

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12820 |
AE111,114..ROSSO |
1 | ||
| 53301-13030 |
AE11# |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15021 |
AE11# |
2 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-12170 |
AE11# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
AE11# |
8 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-12110 |
AE11# |
1 | ||
| 53383A - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08108 |
AE11# |
8 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-20060 |
AE111,114..ROSSO |
2 | ||
| 53384-12090 |
AE11# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-1H070 |
AE11# |
1 | ||
| 53811-1H080 |
AE111,114..ROSSO |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-1H070 |
AE11# |
1 | ||
| 53811-1H080 |
AE111,114..ROSSO |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-1E840 |
AE11# |
1 | ||
| 53812-1E850 |
AE111,114..ROSSO |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-1E840 |
AE11# |
1 | ||
| 53812-1E850 |
AE111,114..ROSSO |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-12110 |
AE11# |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53836-12070 |
AE11# |
1 | ||
| 53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH | ||||
| 53851-12050 |
AE111,114..ROSSO |
1 | ||
| 53852 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH | ||||
| 53852-12050 |
AE111,114..ROSSO |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-12010 |
AE11# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-12010 |
AE11# |
1 | ||
| 53867A - RETAINER, FRONT FENDER | ||||
| 53867-12030 |
AE111,114..ROSSO |
2 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-12260 |
AE111,114..ROSSO |
1 | ||
| 53875-12240 |
AE11# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-12230 |
AE11# |
1 | ||
| 53876-12250 |
AE111,114..ROSSO |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
AE11# |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
AE11# |
8 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
AE11# |
8 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
AE11# |
8 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
AE11# |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90189-06013 | ||||
| 90189-06114 | ||||
| 90467-07166 | ||||
| 90467-10183 | ||||
| 90950-01392 | ||||
