AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )ROSSO

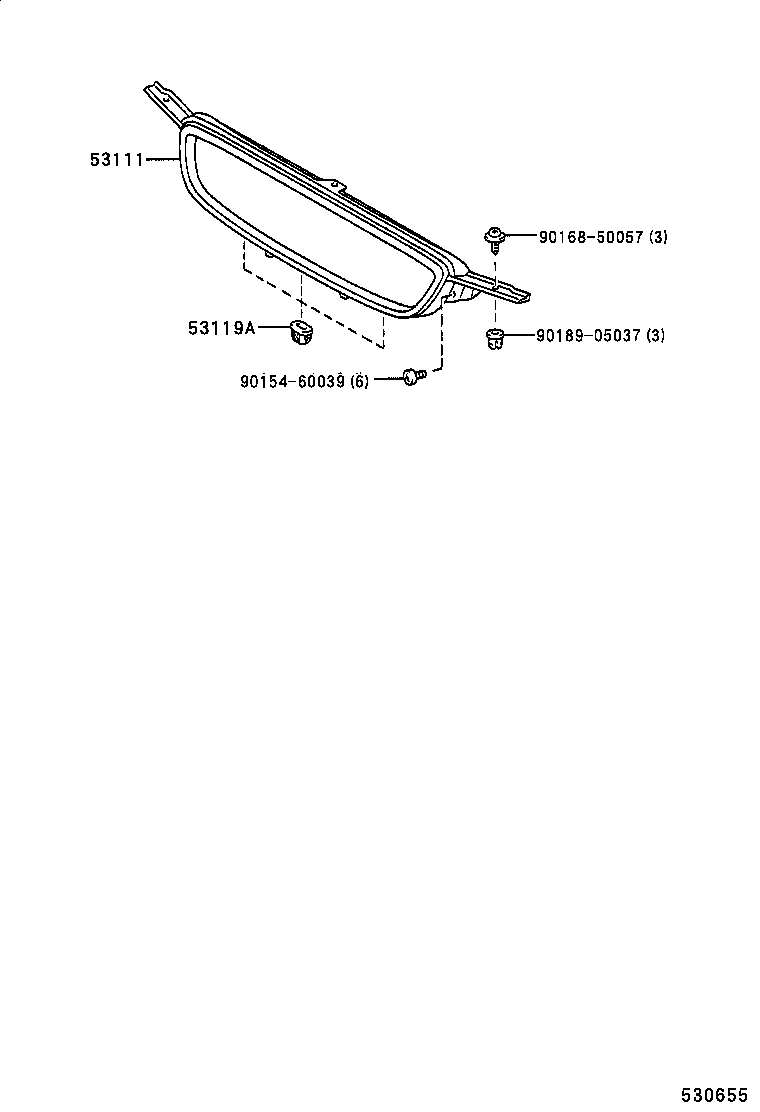

Click highlighted areas on diagram

diagram 53111 53119A 9015460039 9016850057 9018905037
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-13120B0

AE11#

LT.GRAY PEARL ME.,1A7

 1
53111-13120J0

AE11#

DK.BLUE MC.,2AL

 1
53101-1A140

AE111,114..ROSSO

 1
53119A - CUSHION, RADIATOR GRILLE TO FRONT VALANCE PANEL
53119-12110

AE111,114..ROSSO

 3
Common parts
90154-60039
90168-50057
90189-05037
