AE111G-CWMBK (1998)
Toyota Sprinter Carib
Production
Apr 1998
-
Jul 2002
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

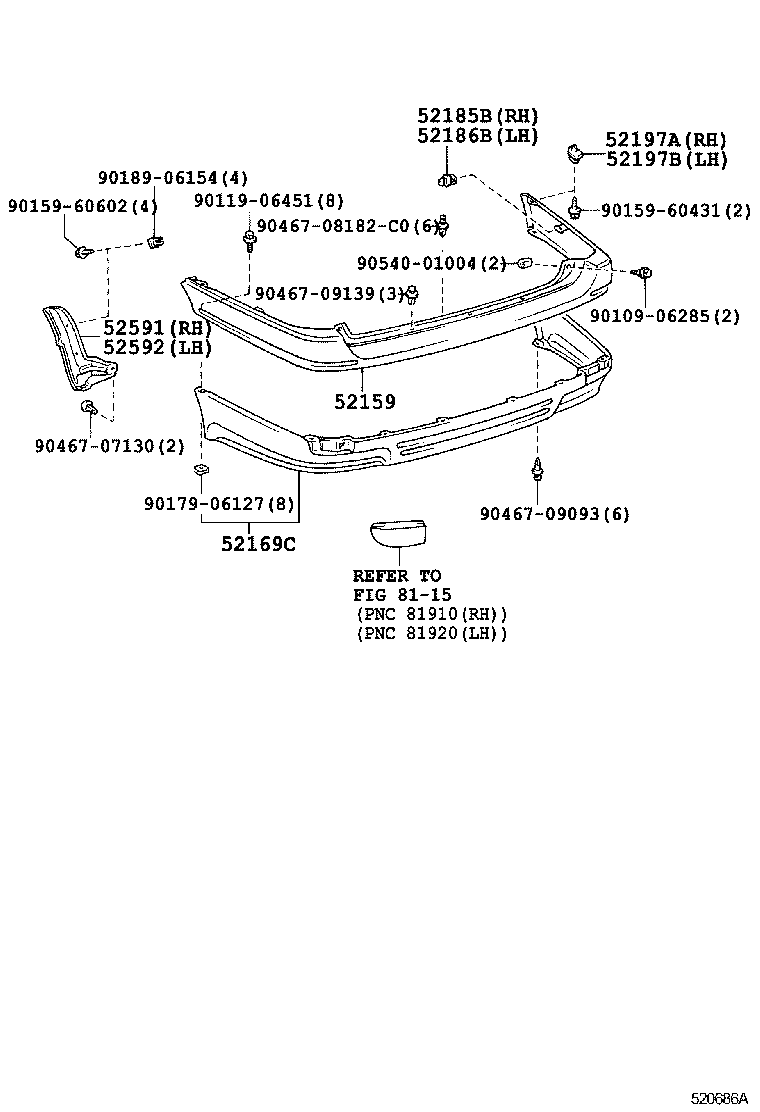

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-13060 |
AE11# |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-13010B1 |
AE11# BL.SILVER ME,2AN |
1 | ||
| 52169-13010B0 |
AE11# LT.GRAY PEARL ME.,1A7 ,2AF ,2AL ,2AM |
1 | ||
| 52169-13040D2 |
AE111,114..ROSSO RED,3M7 |
1 | ||
| 52169-13040C0 |
AE11#..BZT,ROSSO,ZTOUR BLACK ME,205 |
1 | ||
| 52169-13040B0 |
AE11# SILVER ME,199 |
1 | ||
| 52169-13040J0 |
AE11#..ROSSO,STOUR,ZTOUR BLUE M.M.,8L5 |
1 | ||
| 52169-13040D3 |
AE111,114..ROSSO SUPER RED II,3E5 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-12230 |
AE11# |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-12230 |
AE11# |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-16020 |
AE11# |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-16020 |
AE11# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-13010 |
AE11# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-13010 |
AE11# |
1 | ||
| Common parts | ||||
| 90109-06285 | ||||
| 90119-06451 | ||||
| 90159-60431 | ||||
| 90159-60602 | ||||
| 90179-06127 | ||||
| 90189-06154 | ||||
| 90467-07130 | ||||
| 90467-08182C0 | ||||
| 90467-09093 | ||||
| 90467-09139 | ||||
| 90540-01004 | ||||
| Linked diagrams | ||||
| 8115 | ||||
