AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9804- )ROSSO

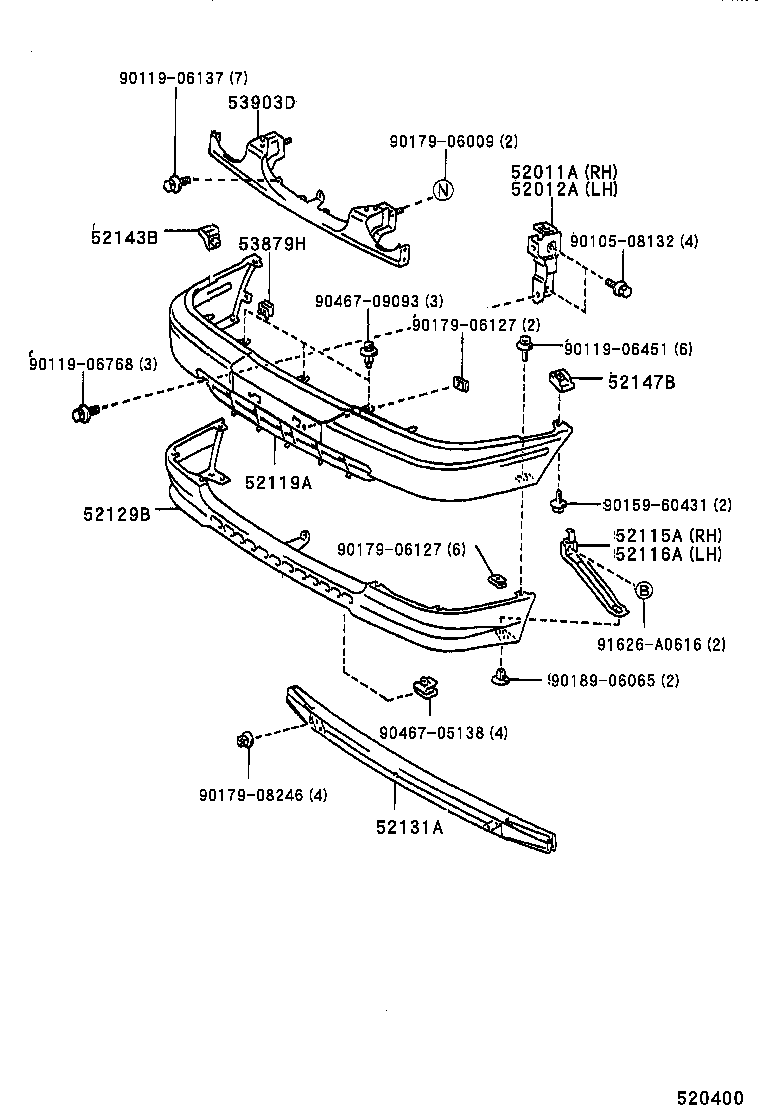

Click highlighted areas on diagram

diagram 52011A 52012A 52115A 52116A 52119A 52129B 52131A 52143B 52147B 53879H 53903D 9010508132 9011906137 9011906451 9011906768 9015960431 9017906009 9017906127 9017906127 9017908246 9018906065 9046705138 9046709093 91626A0616
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52141-12430

AE111,114..ROSSO

 1
52011-13020

AE11#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-13020

AE11#

 1
52142-12360

AE111,114..ROSSO

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12320

AE11#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12290

AE11#

 1
52119A - COVER, FRONT BUMPER
52119-13040B0

AE11#

LT.GRAY PEARL ME.,1A7 ,2AF ,2AL ,2AM

 1
52119-13040B1

AE11#

BL.SILVER ME,2AN

 1
52119-13050B0

AE11#

ｱﾘ(ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),LT.GRAY PEARL ME.,1A7 ,2AF ,2AL ,2AM

 1
52119-13050B1

AE11#

ｱﾘ(ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ),BL.SILVER ME,2AN

 1
52119-1E020

AE111,114..ROSSO

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-12070

AE111,114..ROSSO

ﾄｿｳ ﾅｼ

 1
52129-12080B0

AE111,114..ROSSO

SILVER ME,199

 1
52129-12080D1

AE111,114..ROSSO

RED,3M7

 1
52129-12080J0

AE111,114..ROSSO

BLUE M.M.,8L5

 1
52129-12080D2

AE111,114..ROSSO

SUPER RED II,3E5

 1
52143B - BRACKET, FRONT BUMPER SIDE
52143-12350

AE111,114..ROSSO

 2
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16080

AE11#

 2
52147-12190

AE111,114..ROSSO

 2
53879H - RETAINER, FRONT FENDER LINER
53879-12010

AE111,114..ROSSO

 2
53903D - EXTENSION SUB-ASSY, FRONT BUMPER, UPR
53903-12080

AE111,114..ROSSO

 1
Common parts
90105-08132
90119-06137
90119-06451
90119-06768
90159-60431
90179-06009
90179-06127
90179-08246
90189-06065
90467-05138
90467-09093
91626-A0616
