AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

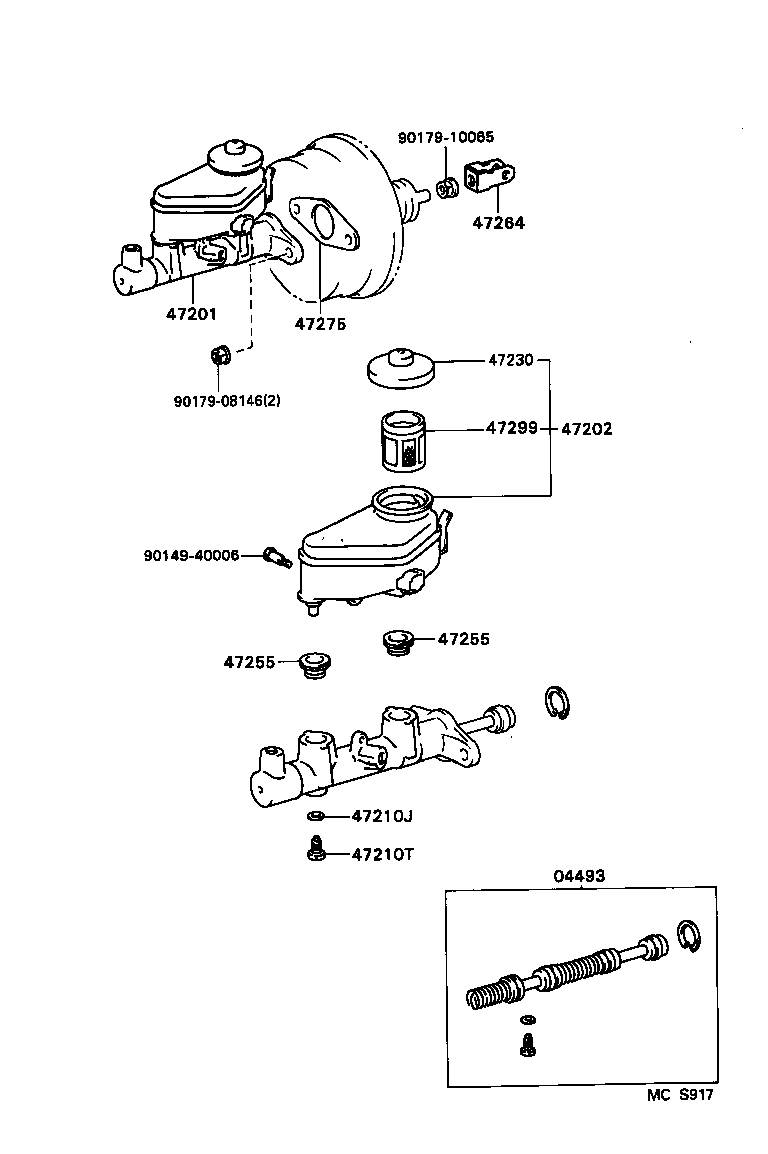

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47275 47299 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-12200

AE11#

ｱﾘ(ABS)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-1A030

AE11#

ｱﾘ(ABS)

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-32060

AE11#

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AE11#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

AE11#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

AE11#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AE11#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

AE11#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-32020

AE11#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

AE11#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

AE11#

 1
Common parts
90149-40006
90179-08146
90179-10065
