AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

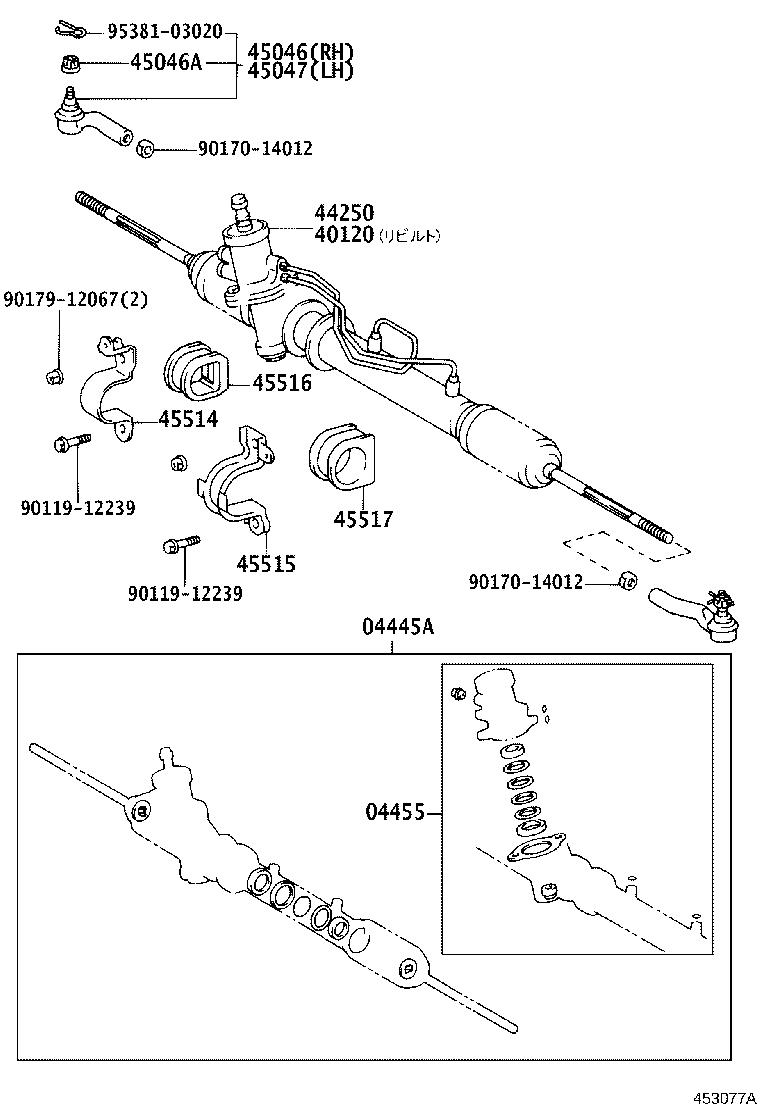

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

diagram 04445A 04455 40120 44250 45046 45046A 45047 45514 45515 45516 45517 9011912239 9011912239 9017014012 9017014012 9017912067 9538103020
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-12160

AE11#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-12210

AE11#

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-29305

AE11#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AE11#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29305

AE11#

 1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-12170

AE11#

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-12060

AE11#

 1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-12111

AE11#

 1
Common parts
90119-12239
90170-14012
90179-12067
95381-03020
