AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002

Engine 4AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

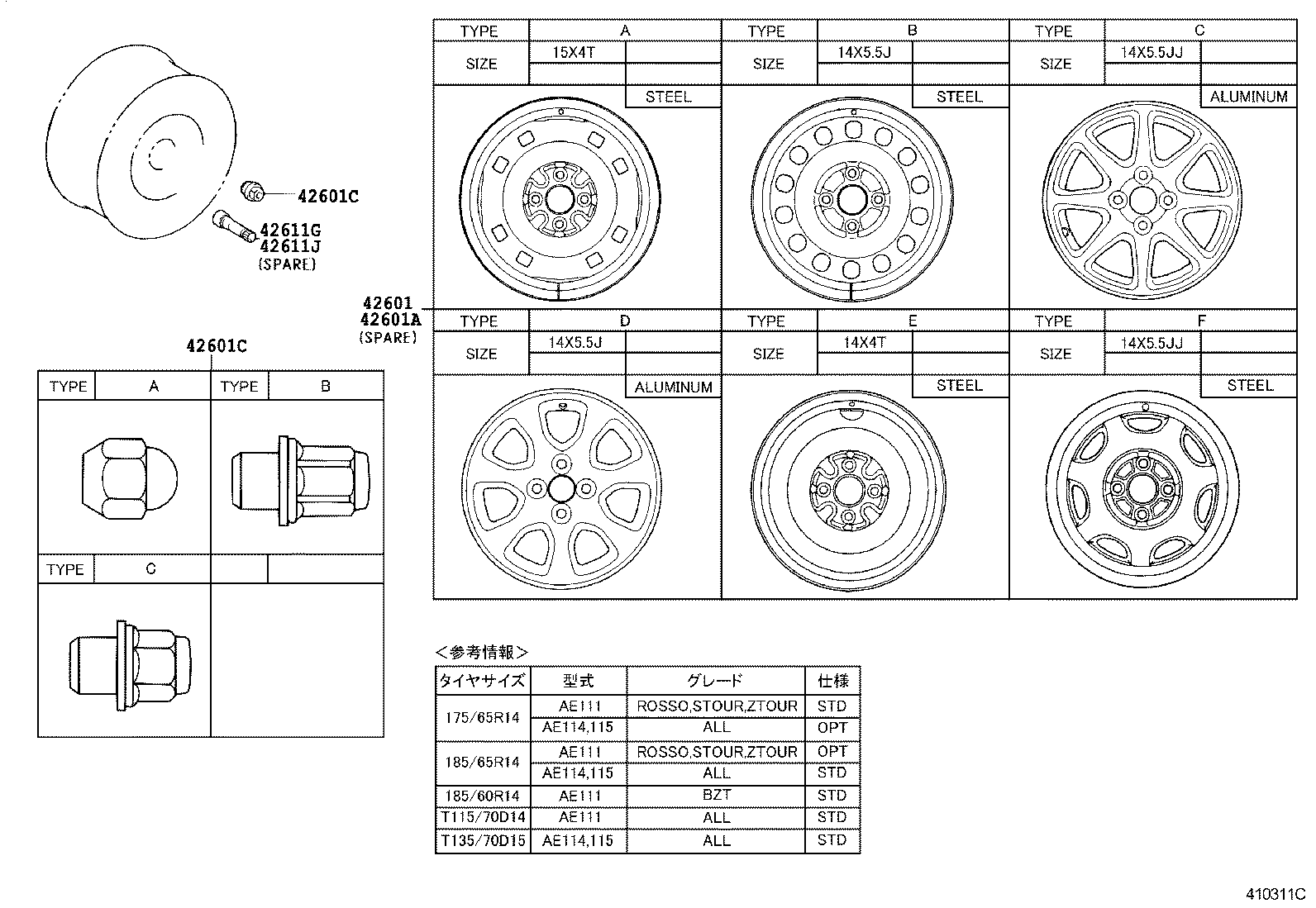

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1A14001	AE11# 14X5.5J,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	08/1995 - 04/1997	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A14001	AE11# 14X5.5J,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK	08/1995 - 04/1997	1
42601C - NUT, HUB (FOR AXLE)
90942-01021	AE11# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 04/1997	16
42601C - NUT, HUB (FOR AXLE)
90942-01021	AE11# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 04/1997	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AE11#	08/1995 - 04/1997	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AE11#	08/1995 - 04/1997	1

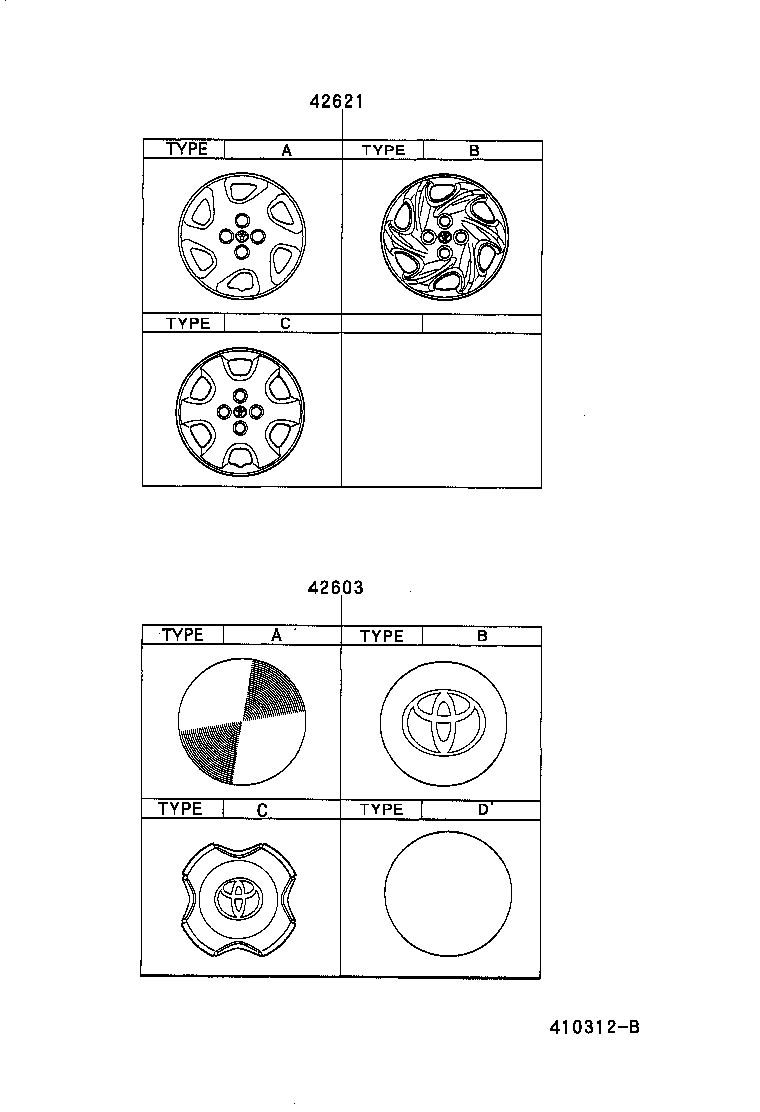

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
42621 - CAP, WHEEL
42602-12440	AE11# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	08/1995 - 04/1997	4

Part #

Description

Qty

Price

42621 - CAP, WHEEL

42602-12440

AE11#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

Click highlighted areas on diagram
