AE111G-CWMBK (1998)
Toyota Sprinter Carib
Production
Apr 1998
-
Jul 2002
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )MTM

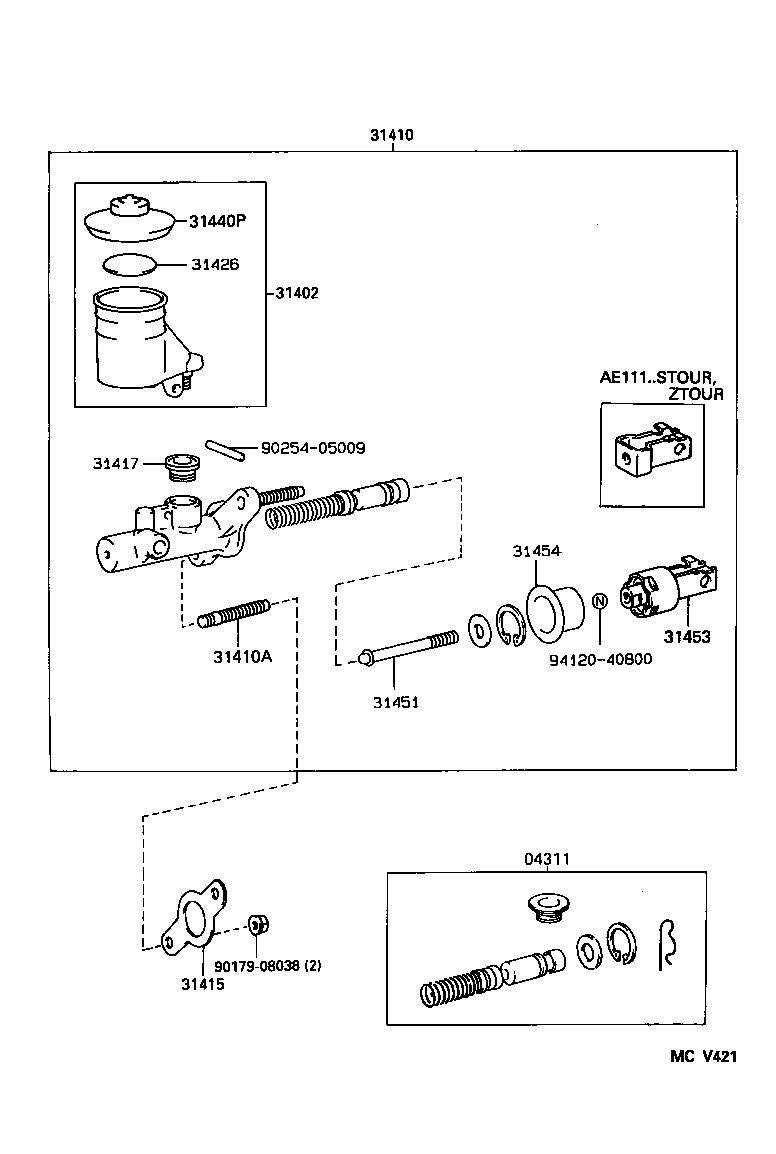

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
AE11#..5F |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08146 |
AE11#..5F |
2 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-10010 |
AE11#..5F |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
AE11#..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
AE11#..5F |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
AE11#..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-16010 |
AE11#..5F |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
