AE111G-CWMBK (1998)

Toyota Sprinter Carib

Production Apr 1998 - Jul 2002
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

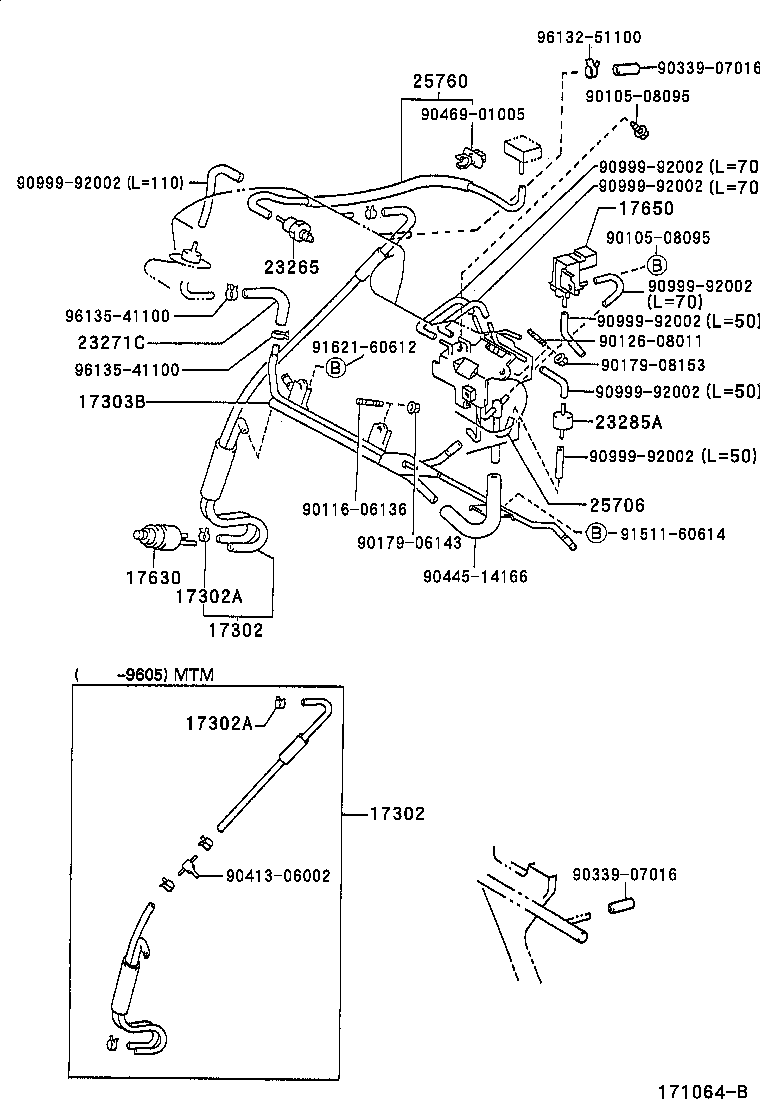

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9508- )4AFE,7AFE

Click highlighted areas on diagram

diagram 17302 17302 17302A 17302A 17303B 17630 17650 23265 23271C 23285A 25706 25760 9010508095 9010508095 9011606136 9012608011 9017906143 9017908153 9033907016 9033907016 9041306002 9044514166 9046901005 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9151160614 9162160612 9613251100 9613541100 9613541100
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-16050

4AFE,7AFE..AE11#..5F

 1
17302-15010

4AFE,7AFE..AE11#..5F

ｱﾘ(*66)

 1
17302 - HOSE SUB-ASSY, AIR
17302-16050

4AFE,7AFE..AE11#..5F

 1
17302-15010

4AFE,7AFE..AE11#..5F

ｱﾘ(*66)

 1
17302A - CLIP, HOSE
96132-51000

4AFE,7AFE..AE11#..5F

ｱﾘ(*66)

 2
96132-51000

4AFE,7AFE..AE11#..5F

 4
17302A - CLIP, HOSE
96132-51000

4AFE,7AFE..AE11#..5F

ｱﾘ(*66)

 2
96132-51000

4AFE,7AFE..AE11#..5F

 4
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-15060

4AFE..AE111;4AFE,7AFE..AE114,115..4FC

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15080

4AFE,7AFE..AE11#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12119

4AFE..AE111,114

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AFE,7AFE..AE11#

 1
23271C - HOSE, FUEL
90910-05214

4AFE,7AFE..AE11#

 1
23285A - VALVE, CHECK, NO.1
90917-10080

4AFE..AE111,114

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15230

4AFE..AE111,114

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-15020

4AFE,7AFE..AE11#

 1
Common parts
90105-08095
90116-06136
90126-08011
90179-06143
90179-08153
90339-07016
90413-06002
90445-14166
90469-01005
90999-92002
91511-60614
91621-60612
96132-51100
96135-41100
