AE111G-CWMBK (1998)
Toyota Sprinter Carib

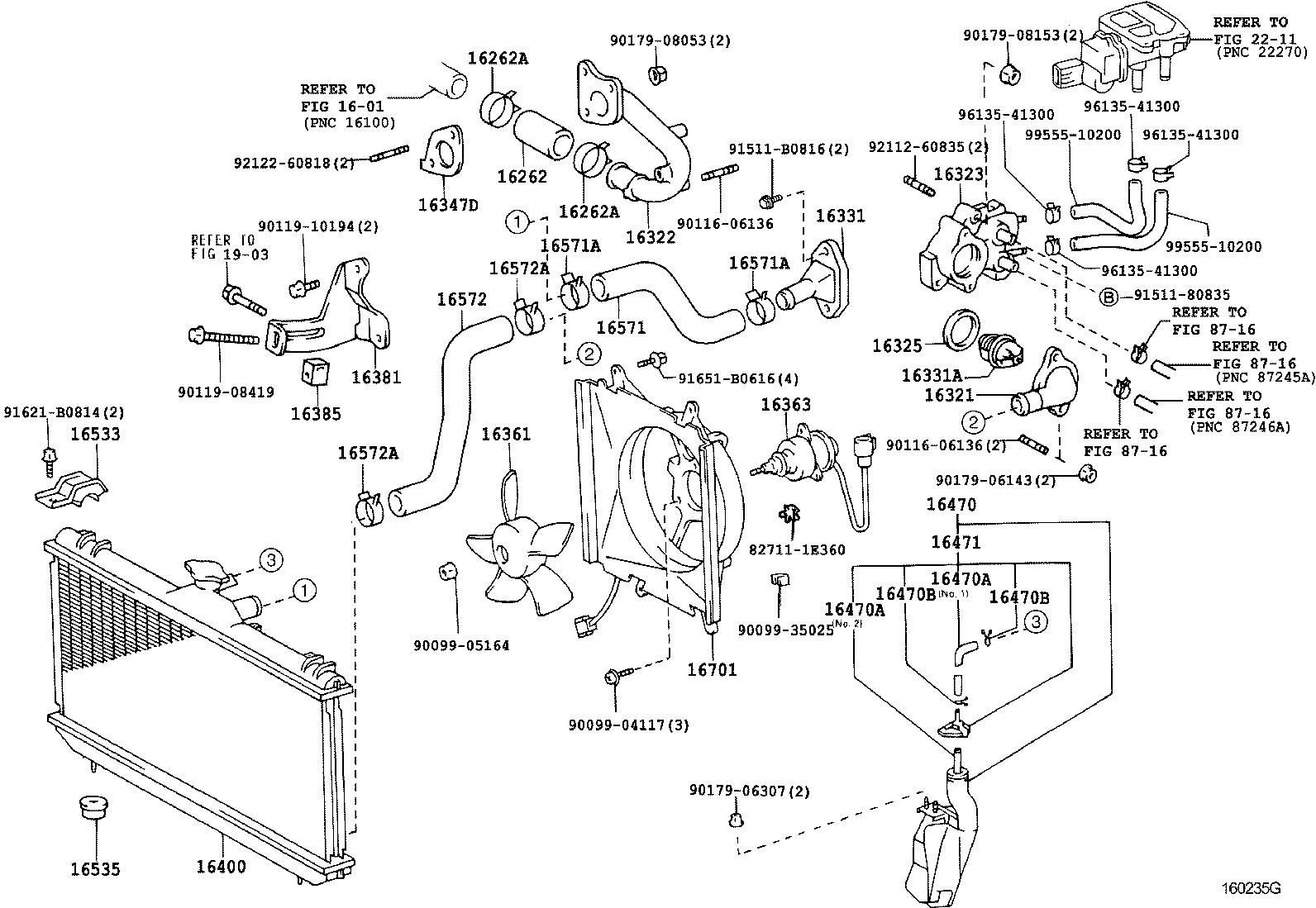

ILLUST NO. 1 OF 2(9508- )4AFE,7AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-15040 |
4AFE,7AFE..AE11# |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4A#,7AFE..AE11# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4A#,7AFE..AE11# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-15040 |
4AFE,7AFE..AE11# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15050 |
4AFE..AE111,114 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15180 |
4AFE,7AFE..AE11# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
4AFE,7AFE..AE11# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AFE,7AFE..AE11# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AFE,7AFE..AE11# *WAX 82−95 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-15010 |
4AFE,7AFE..AE11# |
1 | ||
| 16361 - FAN | ||||
| 16361-02050 |
4AFE,7AFE..AE11#..5F -11020 TO DOUTOU |
1 | ||
| 16361-11020 |
4AFE,7AFE..AE11#..5F -02050 TO DOUTOU |
1 | ||
| 16361-02110 |
4AFE,7AFE..AE11#..5F ﾌﾞﾗｯｸ |
1 | ||
| 16361-11020 |
4AFE,7AFE..AE11#..5F ﾎﾜｲﾄ |
1 | ||
| 16361-11020 |
4AGE..AE111..4FC;4AFE,7AFE..AE11#..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-02040 |
4AFE,7AFE..AE11#..5F -74020 TO DOUTOU |
1 | ||
| 16363-74020 |
4AFE,7AFE..AE11#..5F -02040 TO DOUTOU |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15080 |
4AFE,7AFE..AE11# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-15020 |
4AFE,7AFE..AE11# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15090 |
4A#,7AFE..AE11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-15090 |
4A#,7AFE..AE11# NO.1 |
1 | ||
| 90445-12078 |
4A#,7AFE..AE11# NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16478-15090 |
4A#,7AFE..AE11# NO.1 |
1 | ||
| 90445-12078 |
4A#,7AFE..AE11# NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,7AFE..AE11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4A#,7AFE..AE11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15100 |
4A#,7AFE..AE11# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15120 |
4A#,7AFE..AE11# |
2 | ||
| 16533-15120 |
4A#,7AFE..AE11# -02020 TO DOUTOU |
2 | ||
| 16533-02020 |
4A#,7AFE..AE11# -15120 TO DOUTOU |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04003 |
4A#..AE111;4AFE,7AFE..AE114,115..5F TOYOTA GOUSEI |
2 | ||
| 90916-04002 |
4A#..AE111;4AFE,7AFE..AE114,115..5F 東海ｺﾞﾑ |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15160 |
4AFE..AE111,114 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#,7AFE..AE11# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4A#,7AFE..AE11# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15210 |
4AFE..AE111,114 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#,7AFE..AE11# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4A#,7AFE..AE11# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15271 |
4AFE,7AFE..AE11#..5F -02051 TO DOUTOU |
1 | ||
| 16711-15271 |
4AFE,7AFE..AE11#..5F |
1 | ||
| 16711-02051 |
4AFE,7AFE..AE11#..5F -15271 TO DOUTOU |
1 | ||
| 16711-15271 |
4AFE,7AFE..AE11#..5F (J) |
1 | ||
| 16711-02140 |
4AFE,7AFE..AE11#..5F (L) |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90116-06136 | ||||
| 90119-08419 | ||||
| 90119-10194 | ||||
| 90179-06143 | ||||
| 90179-06307 | ||||
| 90179-08053 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91511-B0816 | ||||
| 91621-B0814 | ||||
| 91651-B0616 | ||||
| 92112-60835 | ||||
| 92122-60818 | ||||
| 96135-41300 | ||||
| 99555-10200 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1903 | ||||
| 2211 | ||||
| 8716 | ||||

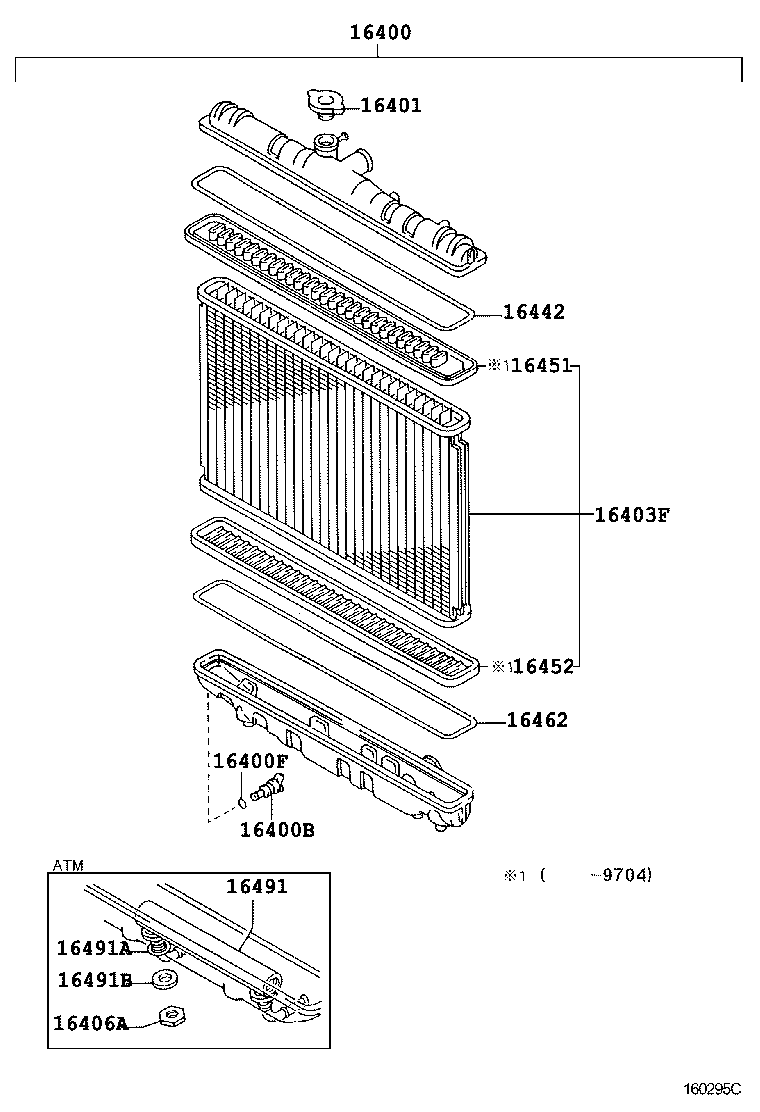

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4AFE..AE114..4FC;4AFE,7AFE..AE111,115 |
1 | ||
| 23322-54010 |
4A#,7AFE..AE11# |
1 | ||
| 23322-54010 |
4A#,7AFE..AE11# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4A#,7AFE..AE11# |
1 | ||
| 96711-19007 |
4AFE..AE114..4FC;4AFE,7AFE..AE111,115 |
1 | ||
| 16492-21050 |
4A#..AE111,114;7AFE..AE115..5F |
1 | ||
| 16492-21050 |
4AFE..AE111;7AFE..AE115..5F;4AFE..AE114..4FC |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
4A#,7AFE..AE11# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-11380 |
4AFE,7AFE..AE111,115..5F |
1 | ||
| 16442-11380 |
4AGE..AE111;4AFE,7AFE..AE11#..5F |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-11380 |
4AGE..AE111;4AFE,7AFE..AE11#..5F |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-11420 |
4AGE..AE111;4AFE,7AFE..AE11#..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-11420 |
4AGE..AE111;4AFE,7AFE..AE11#..5F |
1 | ||
| 16462-11420 |
4AFE,7AFE..AE111,115..5F |
1 | ||
