AE111G-CWFVF (1997)
Toyota Sprinter Carib

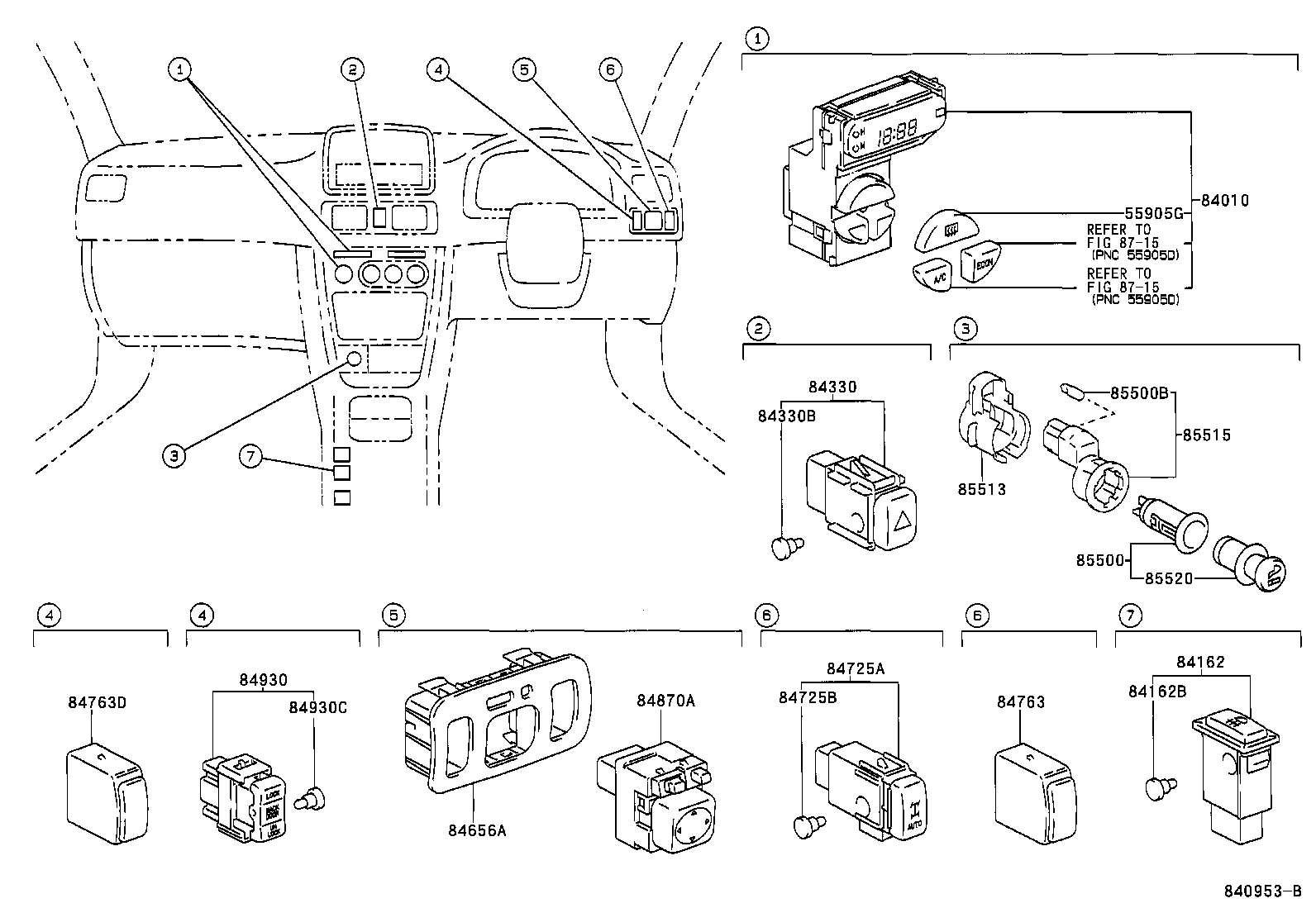

ILLUST NO. 3 OF 6(9704-9804)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲｯﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12400 |
AE11# |
1 | ||
| 84332-12370 |
AE11# |
1 | ||
| 84332-12410 |
AE11# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE11# 14V 0.84W |
1 | ||
| 84999-10860 |
AE11# 14V 0.91W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12040B0 |
AE111,115..BZT,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 84656-12050B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 84999-10320 |
AE11# 14V 0.84W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-12110B0 |
AE111..BZT,STOUR,ZTOUR;AE114,115..(STOUR,VTOUR,ZTOUR)..5F SHADOW GRAY,TRIM1# |
1 | ||
| 84763D - PLATE, SWITCH | ||||
| 84763-12110B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
AE11# |
1 | ||
| 84870-12130 |
AE11# |
1 | ||
| 84870-16040 |
AE111,115..BZT,VTOUR,ZTOUR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84870-12140 |
AE11# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
AE11# |
1 | ||
| 85500-12240 |
AE11# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01015 |
AE11# 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01015 |
AE11# 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE11# |
1 | ||
| 85513-12020 |
AE11# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12100 |
AE11# |
1 | ||
| 85515-12100 |
AE11# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AE11# |
1 | ||
| 85520-28010 |
AE11# |
1 | ||
| Linked diagrams | ||||
| 8715 | ||||

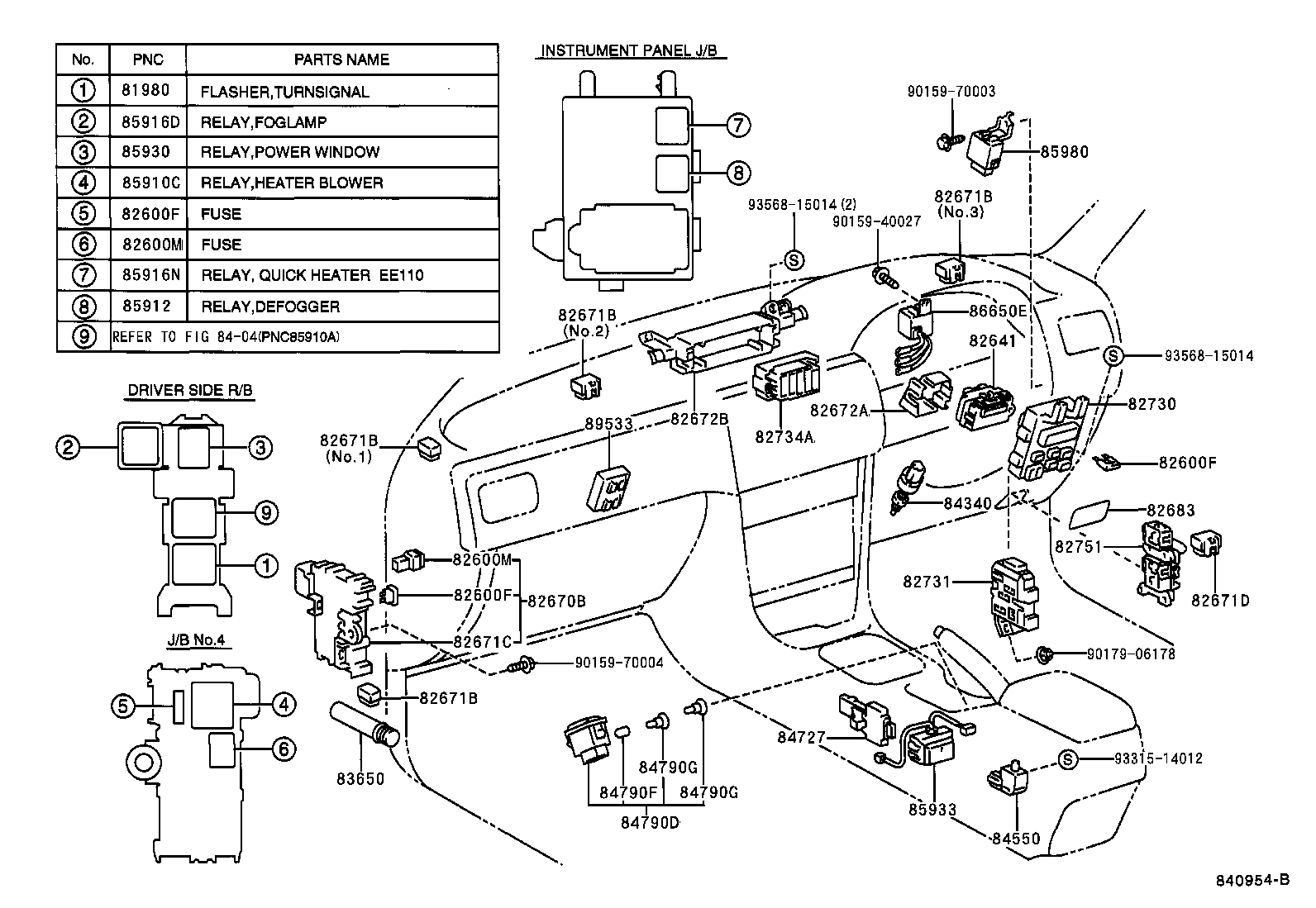

ILLUST NO. 4 OF 6(9704- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-0W010 |
AE11# TRIDON |
1 | ||
| 81980-12110 |
AE11# |
1 | ||
| 81980-12110 |
AE11# DENSO |
1 | ||
| 81980-32010 |
AE11# DENSO |
1 | ||
| 81980-12070 |
AE11# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
AE11# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09003 |
AE11# 15A |
1 | ||
| 90982-09013 |
AE11# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AE11# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
AE11# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
AE11# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
AE11# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09003 |
AE11# 15A |
1 | ||
| 90982-09013 |
AE11# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AE11# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AE11# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
AE11# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09008 |
AE11# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
AE11# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
AE11# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09003 |
AE11# 15A |
1 | ||
| 90982-09013 |
AE11# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AE11# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
AE11# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
AE11# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
AE11# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09003 |
AE11# 15A |
1 | ||
| 90982-09013 |
AE11# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AE11# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AE11# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
AE11# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09008 |
AE11# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
AE11# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
AE11# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09003 |
AE11# 15A |
1 | ||
| 90982-09013 |
AE11# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AE11# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
AE11# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09007 |
AE11# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09011 |
AE11# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09003 |
AE11# 15A |
1 | ||
| 90982-09013 |
AE11# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09010 |
AE11# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09009 |
AE11# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
AE11# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09008 |
AE11# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
AE11# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE11# 40A,緑 |
1 | ||
| 90982-10002 |
AE11# 40A,緑 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE11# 40A,緑 |
1 | ||
| 90982-10002 |
AE11# 40A,緑 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12120 |
AE111,115..BZT,VTOUR,ZTOUR |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-12250 |
AE11# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE11# NO.7 |
1 | ||
| 82671-30370 |
AE11# NO.1,6 |
2 | ||
| 82671-30350 |
AE111..6F;AE111,114..ROSSO NO.3 |
1 | ||
| 82671-30360 |
AE111..6F;AE111,114..ROSSO NO.2 |
1 | ||
| 82671-30360 |
AE11# NO.6 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE11# NO.7 |
1 | ||
| 82671-30370 |
AE11# NO.1,6 |
2 | ||
| 82671-30350 |
AE111..6F;AE111,114..ROSSO NO.3 |
1 | ||
| 82671-30360 |
AE111..6F;AE111,114..ROSSO NO.2 |
1 | ||
| 82671-30360 |
AE11# NO.6 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE11# NO.7 |
1 | ||
| 82671-30370 |
AE11# NO.1,6 |
2 | ||
| 82671-30350 |
AE111..6F;AE111,114..ROSSO NO.3 |
1 | ||
| 82671-30360 |
AE111..6F;AE111,114..ROSSO NO.2 |
1 | ||
| 82671-30360 |
AE11# NO.6 |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
AE11# NO.7 |
1 | ||
| 82671-30370 |
AE11# NO.1,6 |
2 | ||
| 82671-30350 |
AE111..6F;AE111,114..ROSSO NO.3 |
1 | ||
| 82671-30360 |
AE111..6F;AE111,114..ROSSO NO.2 |
1 | ||
| 82671-30360 |
AE11# NO.6 |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12140 |
AE11# |
1 | ||
| 82671-12140 |
AE11# |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30360 |
AE11# |
1 | ||
| 82671-30350 |
AE11# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12350 |
AE11# |
1 | ||
| 82672-12380 |
AE11# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12370 |
AE11# |
1 | ||
| 82672-12210 |
AE11# |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-12230 |
AE11# |
1 | ||
| 82683-12200 |
AE11# |
1 | ||
| 82683-12231 |
AE11# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-12040 |
AE11# |
1 | ||
| 82732-12060 |
AE11# |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-12010 |
AE11# |
1 | ||
| 82731-12010 |
AE11# |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-12010 |
AE11# |
1 | ||
| 82734-12010 |
AE11# |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-12020 |
AE11# |
1 | ||
| 82751-13010 |
AE11# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AE11# |
1 | ||
| 90986-01005 |
AE11# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE11# |
1 | ||
| 84340-32050 |
AE11# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE11# |
1 | ||
| 84550-33010 |
AE11# |
1 | ||
| 84790D - SWITCH ASSY, WINDSHIELD DEFOGGER | ||||
| 84790-12360 |
AE11# |
1 | ||
| 84790-12380 |
AE11# |
1 | ||
| 84790F - CAP, BULB(FOR WINDSHIELD DEFOGGER SWITCH) | ||||
| 84998-10640 |
AE11# |
1 | ||
| 84998-10640 |
AE11# |
1 | ||
| 84790G - BULB(FOR WINDSHIELD DEFOGGER SWITCH) | ||||
| 84999-10780 |
AE11# |
2 | ||
| 84999-10780 |
AE11# |
2 | ||
| 84790G - BULB(FOR WINDSHIELD DEFOGGER SWITCH) | ||||
| 84999-10780 |
AE11# |
2 | ||
| 84999-10780 |
AE11# |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE11# |
1 | ||
| 90987-04002 |
AE11# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
AE11# |
1 | ||
| 90987-02012 |
AE11# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
AE11#..BZT,STOUR,VTOUR,ZTOUR |
1 | ||
| 90987-02009 |
AE11# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
AE11# |
1 | ||
| 90987-02012 |
AE11# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
AE11# |
1 | ||
| 90987-02012 |
AE11# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12270 |
AE11# ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 85980-12250 |
AE11#..BZT,ROSSO,VTOUR,ZTOUR |
1 | ||
| 85980-12250 |
AE111,115..BZT,VTOUR,ZTOUR |
1 | ||
| 85980-12290 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-12030 |
AE11# |
1 | ||
| 86650-12050 |
AE11# |
1 | ||
| Common parts | ||||
| 90159-40027 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90179-06178 | ||||
| 93315-14012 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 3 OF 6(9804- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲｯﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12400 |
AE11# |
1 | ||
| 84332-12370 |
AE11# |
1 | ||
| 84332-12410 |
AE11# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE11# 14V 0.84W |
1 | ||
| 84999-10860 |
AE11# 14V 0.91W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12040B0 |
AE111,115..BZT,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 84656-12050B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-),SHADOW GRAY,TRIM1# |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 84999-10320 |
AE11# 14V 0.84W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-12110B0 |
AE111..BZT,STOUR,ZTOUR;AE114,115..(STOUR,VTOUR,ZTOUR)..5F SHADOW GRAY,TRIM1# |
1 | ||
| 84763D - PLATE, SWITCH | ||||
| 84763-12110B0 |
AE11#..BZT,STOUR,VTOUR,ZTOUR SHADOW GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
AE11# |
1 | ||
| 84870-12130 |
AE11# |
1 | ||
| 84870-16040 |
AE111,115..BZT,VTOUR,ZTOUR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 84870-12140 |
AE11# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
AE11# |
1 | ||
| 85500-12240 |
AE11# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01015 |
AE11# 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01015 |
AE11# 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE11# |
1 | ||
| 85513-12020 |
AE11# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12100 |
AE11# |
1 | ||
| 85515-12100 |
AE11# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AE11# |
1 | ||
| 85520-28010 |
AE11# |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
