TE71-FLMQF (1979)
Toyota Sprinter

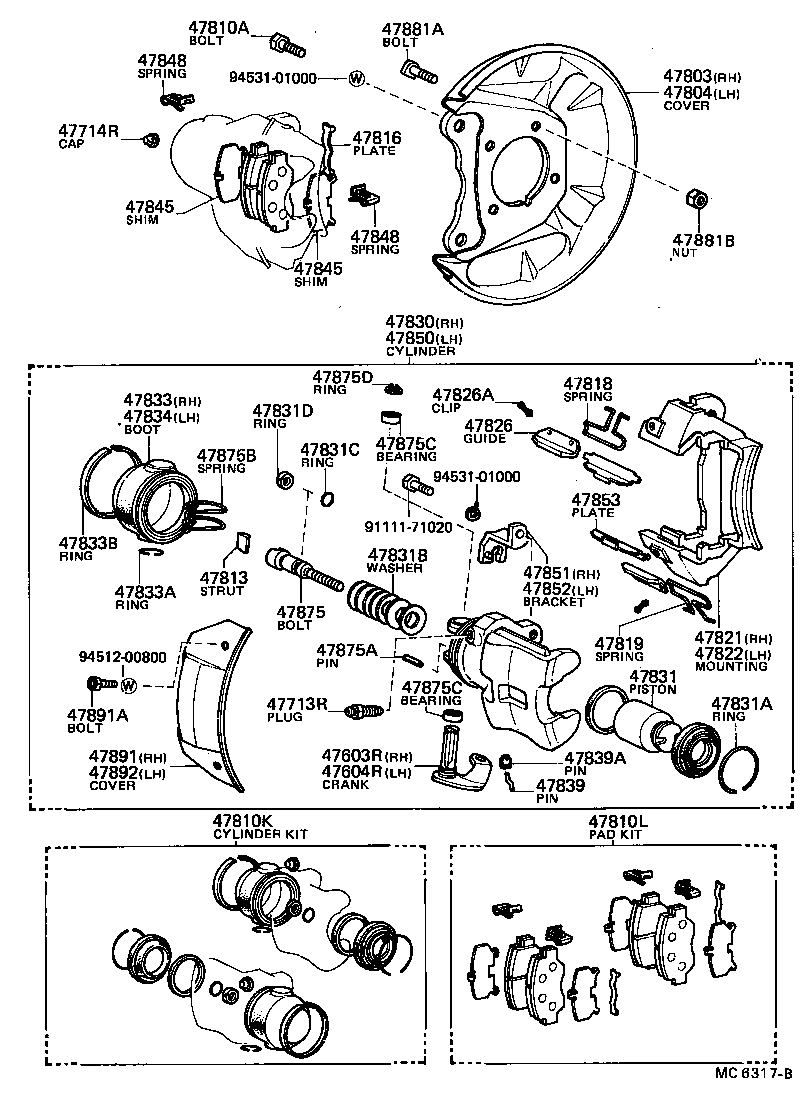

ILLUST NO. 1 OF 2(7903- )TE7#..GT,SR,TRR,TRS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47603R - CRANK SUB-ASSY, PARKING BRAKE, RH(FOR DISC BRAKE, REAR) | ||||
| 47603-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47604R - CRANK SUB-ASSY, PARKING BRAKE, LH(FOR DISC BRAKE, REAR) | ||||
| 47604-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90101-10059 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47810K - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-14030 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47810L - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-12021 |
TE7#..GT,SR,TRR |
1 | ||
| 04492-14030 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 04492-12020 |
TE7#..GT,SR,TRR |
1 | ||
| 47813 - STRUT, PARKING BRAKE(FOR REAR DISC BRAKE) | ||||
| 47613-14020 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-14040 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47818 - SPRING, CYLINDER SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47718-14060 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47819 - SPRING, CYLINDER SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47719-14030 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-12040 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-12040 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47826 - GUIDE, DISC BRAKE CYLINDER(FOR REAR DISC BRAKE) | ||||
| 47726-14050 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47826A - CLIP(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
TE7#..GT,SR,TRR,TRS |
8 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47730-12120 |
TE71 |
1 | ||
| 47730-12121 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47701-14010 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47831A - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-45001 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47831B - WASHER, CONICAL SPRING | ||||
| 90208-11001 |
TE7#..GT,SR,TRR,TRS |
14 | ||
| 47831C - RING, O | ||||
| 90301-07002 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47831D - RING(FOR REAR DISC BRAKE) | ||||
| 90562-08002 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47833 - BOOT, PARKING BRAKE CRANK, RH | ||||
| 47633-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47833A - RING, SET(FOR REAR DISC BRAKE CRANK) | ||||
| 90522-23001 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47833B - RING, SET(FOR REAR DISC BRAKE BOOT) | ||||
| 90522-55001 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47834 - BOOT, PARKING BRAKE CRANK, LH | ||||
| 47634-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47839 - PIN, PARKING BRAKE CRANK STOPPER | ||||
| 47639-14010 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47839A - PIN, SLOTTED SPRING(FOR CRANK STOPPER PIN) | ||||
| 90254-04010 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47845 - SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47744-14030 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47845 - SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE) | ||||
| 47744-14030 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-14040 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47748-14040 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-12120 |
TE71 |
1 | ||
| 47750-12121 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47851 - BRACKET, CABLE SUPPORT, RH | ||||
| 46451-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47852 - BRACKET, CABLE SUPPORT, LH | ||||
| 46452-14010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47853 - PLATE, CYLINDER GUIDE(FOR REAR DISC BRAKE) | ||||
| 47753-14040 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47875 - BOLT, PAD ADJUSTING(FOR REAR DISC BRAKE) | ||||
| 47475-14030 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47875A - PIN, SLOTTED SPRING | ||||
| 90254-02001 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47875B - SPRING, TORSION(FOR PAD ADJUSTING BOLT) | ||||
| 90508-24003 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47875C - BEARING, NEEDLE ROLLER(FOR PAD ADJUSTING BOLT) | ||||
| 90364-15001 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47875C - BEARING, NEEDLE ROLLER(FOR PAD ADJUSTING BOLT) | ||||
| 90364-15001 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47875D - RING, SHAFT SNAP | ||||
| 90520-14001 |
TE7#..GT,SR,TRR,TRS |
2 | ||
| 47881A - BOLT(FOR DUST COVER) | ||||
| 42184-22011 |
TE7#..GT,SR,TRR,TRS |
8 | ||
| 47881B - NUT(FOR DUST COVER) | ||||
| 94181-11000 |
TE7#..GT,SR,TRR,TRS |
8 | ||
| 47891 - COVER, DISC BRAKE CALIPER DUST, REAR RH | ||||
| 47891-12010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| 47891A - BOLT(FOR DISC BRAKE CALIPER DUST REAR) | ||||
| 90101-08045 |
TE7#..GT,SR,TRR,TRS |
4 | ||
| 47892 - COVER, DISC BRAKE CALIPER DUST, REAR LH | ||||
| 47892-12010 |
TE7#..GT,SR,TRR,TRS |
1 | ||
| Common parts | ||||
| 91111-71020 | ||||
| 94512-00800 | ||||
| 94531-01000 | ||||
ILLUST NO. 2 OF 2(7903- )TE7#..GT,SR,TRR,TRS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-12100 |
TE71 ﾏｰｸ NBK D5004 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-14010 |
TE71 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12010 |
TE71 |
1 | ||
