TE71-FLMQF (1979)
Toyota Sprinter
Production
Mar 1979
-
Apr 1983
Engine
2TGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

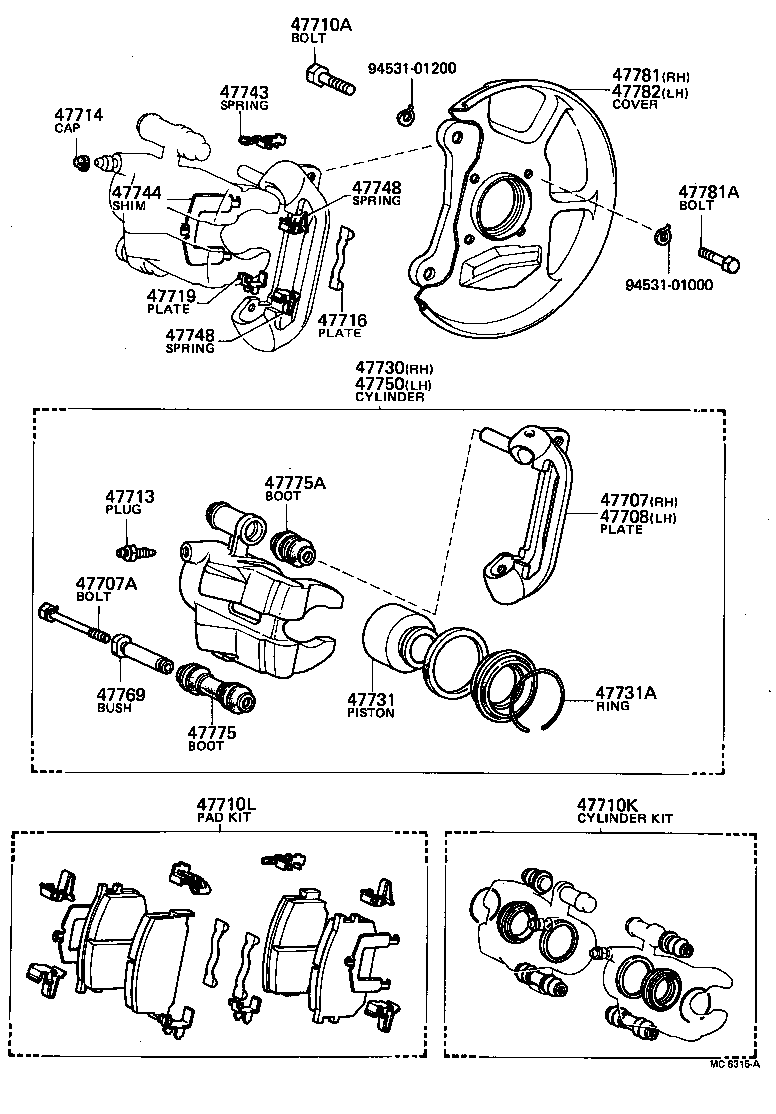

ILLUST NO. 1 OF 2(7903- )CE70,TE7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH | ||||
| 47707-12030 |
CE70,TE7# |
1 | ||
| 47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE) | ||||
| 90119-08199 |
CE70,TE7# |
2 | ||
| 47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH | ||||
| 47708-12020 |
CE70,TE7# |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12332 |
CE70,TE7# *12−1.25PX15.7−10 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-12060 |
CE70,TE7# |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-12160 |
CE70,TE71 |
1 | ||
| 04491-12120 |
TE7# |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
AE70,CE70,KE70,TE7# |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
AE70,CE70,KE70,TE7# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-14020 |
CE70,TE7# |
2 | ||
| 47719 - PLATE, FRONT DISC BRAKE PAD GUIDE | ||||
| 47736-12010 |
CE70,TE7# |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-12100 |
CE70,TE7# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12050 |
CE70,TE7# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-54038 |
CE70,TE7# |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-12010 |
CE70,TE7# LH |
1 | ||
| 47748-12050 |
CE70,TE7# RH |
1 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-12040 |
CE70,TE7# |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47743-12020 |
CE70,TE7# RH=UPR,LH=LWR |
2 | ||
| 47748-12060 |
CE70,TE7# RH=LWR,LH=UPR |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47743-12020 |
CE70,TE7# RH=UPR,LH=LWR |
2 | ||
| 47748-12060 |
CE70,TE7# RH=LWR,LH=UPR |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-12100 |
CE70,TE7# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-14010 |
CE70,TE71 |
2 | ||
| 47769-12010 |
TE7# |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-12010 |
TE7# |
2 | ||
| 47775-14010 |
CE70,TE71 |
2 | ||
| 47775A - BOOT, PIN | ||||
| 47775-14010 |
CE70,TE71 |
2 | ||
| 47775-12020 |
TE7# |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-12070 |
CE70,TE7# |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 91111-71020 |
CE70,TE7# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-12070 |
CE70,TE7# |
1 | ||
| Common parts | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(7903- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-12060 |
TE7# |
1 | ||
| 04465-12060 |
CE70,TE71 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-12040 |
CE70,TE71 |
1 | ||
| 04945-12040 |
TE7# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-14160 |
TE7# |
1 | ||
| 04947-14160 |
CE70,TE71 |
1 | ||
