TE71-FEMQF (1979)

Toyota Sprinter

Production Mar 1979 - Apr 1983
Engine 2TGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

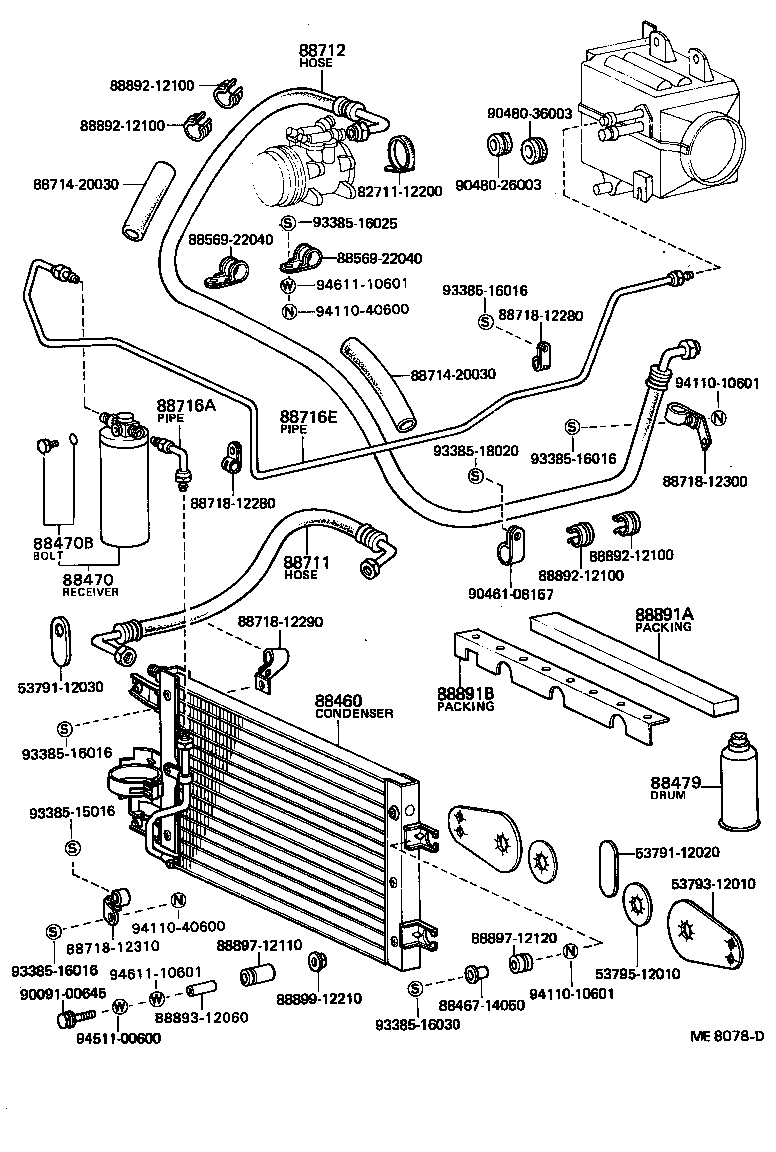

(7903-8108)TE71

Click highlighted areas on diagram

diagram 5379112020 5379112030 5379312010 5379512010 8271112200 88460 8846714050 88470 88470B 88479 8856922040 8856922040 88711 88712 8871420030 8871420030 88716A 88716E 8871812280 8871812280 8871812290 8871812300 8871812310 88891A 88891B 8889212100 8889212100 8889212100 8889212100 8889312060 8889712110 8889712120 8889912210 9009100645 9046108157 9048026003 9048036003 9338515016 9338516016 9338516016 9338516016 9338516016 9338516025 9338516030 9338518020 9411010601 9411010601 9411040600 9411040600 9451100600 9461110601 9461110601
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-12120

TE71

 1
88460-12150

TE71

 1
88460-12120

TE71

OKINAWA SPEC

 1
88460-12170

AE70,TE71;KE70..3FC

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

AE70,TE71;KE70..3FC

 1
88470-12050

TE7#

 1
88470B - BOLT, FUSE
90099-04579

AE70,CE70,KE70,TE7#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AE70,CE70,KE70,TE7#

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12151

TE71

 1
88711-12150

TE7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12300

TE71

 1
88712-12380

TE71

*AAC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12540

AE70,TE71;KE70..3FC

 1
88716-12420

AE70,TE7#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12450

TE7#

 1
88891A - PACKING A (FOR COOLER)
53291-12050

AE70,TE7#

 1
88891B - PACKING B (FOR COOLER)
53381-12100

AE70,KE70,TE71

 1
53381-12110

AE70,KE70,TE71

 1
53381-12110

AE70,KE70,TE71

 1
Common parts
53791-12020
53791-12030
53793-12010
53795-12010
82711-12200
88467-14050
88569-22040
88714-20030
88718-12280
88718-12290
88718-12300
88718-12310
88892-12100
88893-12060
88897-12110
88897-12120
88899-12210
90091-00645
90461-08157
90480-26003
90480-36003
93385-15016
93385-16016
93385-16025
93385-16030
93385-18020
94110-10601
94110-40600
94511-00600
94611-10601

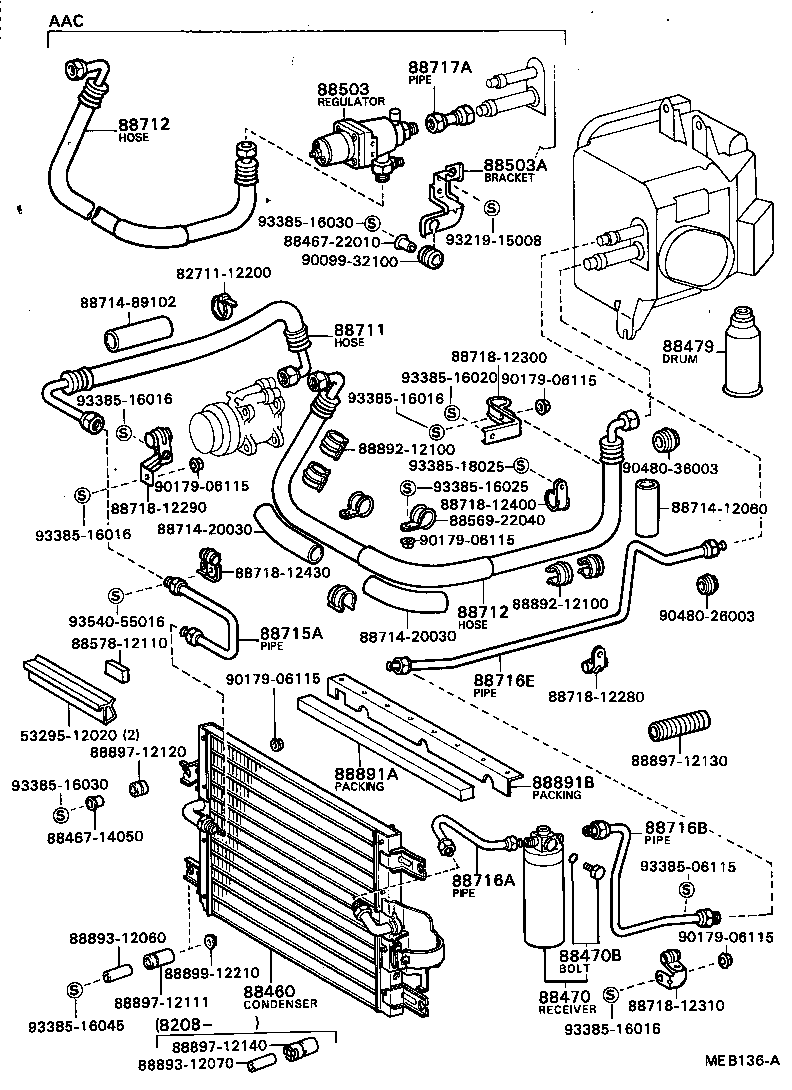

(8108- )TE71

Click highlighted areas on diagram

diagram 5329512020 8271112200 88460 8846714050 8846722010 88470 88470B 88479 88503 88503A 8856922040 8857812110 88711 88712 88712 8871412060 8871420030 8871420030 8871489102 88715A 88716A 88716B 88716E 88717A 8871812280 8871812290 8871812300 8871812310 8871812400 8871812430 88891A 88891B 8889212100 8889212100 8889312060 8889312070 8889712111 8889712120 8889712130 8889712140 8889912210 9009932100 9017906115 9017906115 9017906115 9017906115 9017906115 9048026003 9048036003 9321915008 9338506115 9338516016 9338516016 9338516016 9338516016 9338516020 9338516025 9338516030 9338516030 9338516045 9338518025 9354055016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-12120

TE71

 1
88460-12150

TE71

 1
88460-12120

TE71

OKINAWA SPEC

 1
88460-12170

AE70,TE71;KE70..3FC

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

AE70,TE71;KE70..3FC

 1
88470-12050

TE7#

 1
88470B - BOLT, FUSE
90099-04579

AE70,CE70,KE70,TE7#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AE70,CE70,KE70,TE7#

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-14050

TE71

W/AUTOMATIC AIR CONDITIONER

 1
88503A - BRACKET, PRESSURE REGULATOR
88688-12100

TE71

W/AUTOMATIC AIR CONDITIONER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12151

TE71

 1
88711-12150

TE7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12300

TE71

 1
88712-12380

TE71

*AAC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12300

TE71

 1
88712-12380

TE71

*AAC

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12160

TE71;KE70..3FC

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12540

AE70,TE71;KE70..3FC

 1
88716-12420

AE70,TE7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-12560

AE70,TE71;KE70..3FC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12450

TE7#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22170

TE71

W/AUTOMATIC AIR CONDITIONER

 1
88891A - PACKING A (FOR COOLER)
53291-12050

AE70,TE7#

 1
88891B - PACKING B (FOR COOLER)
53381-12100

AE70,KE70,TE71

 1
53381-12110

AE70,KE70,TE71

 1
53381-12110

AE70,KE70,TE71

 1
Common parts
53295-12020
82711-12200
88467-14050
88467-22010
88569-22040
88578-12110
88714-12060
88714-20030
88714-89102
88718-12280
88718-12290
88718-12300
88718-12310
88718-12400
88718-12430
88892-12100
88893-12060
88893-12070
88897-12111
88897-12120
88897-12130
88897-12140
88899-12210
90099-32100
90179-06115
90480-26003
90480-36003
93219-15008
93385-06115
93385-16016
93385-16020
93385-16025
93385-16030
93385-16045
93385-18025
93540-55016
