TE71-FCMQF (1979)
Toyota Sprinter
(7903-8108)2TGEU

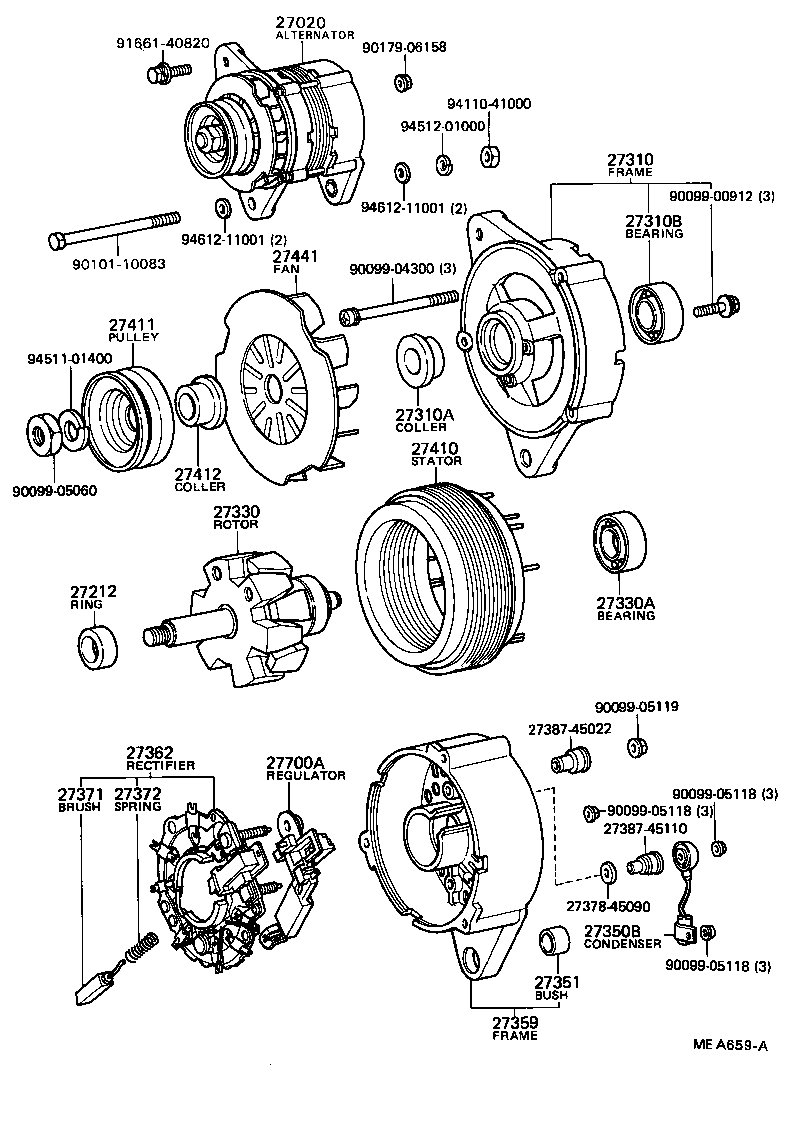

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-26141 |
2TGEU..TE71 12V 55A,W/O REGULATOR |
1 | ||
| 27060-34030 |
2TGEU..TE71 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
13TU,2TGEU..TE7# |
1 | ||
| 27061 - PLATE, REGULATOR COVER | ||||
| 27062-45050 |
2TGEU..TE71 |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
3AU,4KU,2TGEU..AE70,KE70,TE71 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
2TGEU..TE71 |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
13TU,2TGEU..TE7# |
1 | ||
| 90099-10125 |
13TU,2TGEU..TE7# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45090 |
2TGEU..TE71 |
1 | ||
| 27330-15070 |
2TGEU..TE71 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
13TU,2TGEU..TE7# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2TGEU..TE71 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-45122 |
2TGEU..TE71 |
1 | ||
| 27359-34080 |
2TGEU..TE71 |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-41080 |
2TGEU..TE71 |
1 | ||
| 27362-15070 |
2TGEU..TE71 |
1 | ||
| 27362-70011 |
2TGEU..TE71 |
1 | ||
| 27362-70010 |
2TGEU..TE71 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 27371-44070 |
13TU,4KU,2TGEU..KE70,TE7# |
2 | ||
| 27371-44070 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
13TU,4KU,2TGEU..KE70,TE7# |
2 | ||
| 27372-31011 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 90099-17114 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
13TU,2TGEU..TE7# |
1 | ||
| 27410-41080 |
4KU,2TGEU..KE70,TE71 |
1 | ||
| 27410-41080 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
3AU,4KU,2TGEU..AE70,KE70,TE71 |
1 | ||
| 27411-26111 |
3AU,2TGEU..AE70,TE71 |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44031 |
2TGEU..TE71 |
1 | ||
| 27412-44030 |
3AU,4KU,2TGEU..AE70,KE70,TE71 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45110 |
2TGEU..TE71 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-26050 |
2TGEU..TE71 |
1 | ||
| 27700-43010 |
2TGEU..TE71 |
1 | ||
| Common parts | ||||
| 27063-45020 | ||||
| 27064-45020 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-00916 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 91661-40820 | ||||
| 93229-14012 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
(8108- )2TGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-26141 |
2TGEU..TE71 12V 55A,W/O REGULATOR |
1 | ||
| 27060-34030 |
2TGEU..TE71 12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
3AU,4KU,2TGEU..AE70,KE70,TE71 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
2TGEU..TE71 |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10115 |
13TU,2TGEU..TE7# |
1 | ||
| 90099-10125 |
13TU,2TGEU..TE7# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45090 |
2TGEU..TE71 |
1 | ||
| 27330-15070 |
2TGEU..TE71 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
13TU,2TGEU..TE7# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2TGEU..TE71 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-45122 |
2TGEU..TE71 |
1 | ||
| 27359-34080 |
2TGEU..TE71 |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-41080 |
2TGEU..TE71 |
1 | ||
| 27362-15070 |
2TGEU..TE71 |
1 | ||
| 27362-70011 |
2TGEU..TE71 |
1 | ||
| 27362-70010 |
2TGEU..TE71 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 27371-44070 |
13TU,4KU,2TGEU..KE70,TE7# |
2 | ||
| 27371-44070 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 90099-17114 |
13TU,4KU,2TGEU..KE70,TE7# |
2 | ||
| 27372-31011 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 90099-17114 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
13TU,2TGEU..TE7# |
1 | ||
| 27410-41080 |
4KU,2TGEU..KE70,TE71 |
1 | ||
| 27410-41080 |
13TU,3AU,4KU,2TGEU..AE70,KE70,TE7# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
3AU,4KU,2TGEU..AE70,KE70,TE71 |
1 | ||
| 27411-26111 |
3AU,2TGEU..AE70,TE71 |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44031 |
2TGEU..TE71 |
1 | ||
| 27412-44030 |
3AU,4KU,2TGEU..AE70,KE70,TE71 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-45110 |
2TGEU..TE71 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-26050 |
2TGEU..TE71 |
1 | ||
| 27700-43010 |
2TGEU..TE71 |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10083 | ||||
| 90179-06158 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
