TE70-FSMES (1979)
Toyota Sprinter

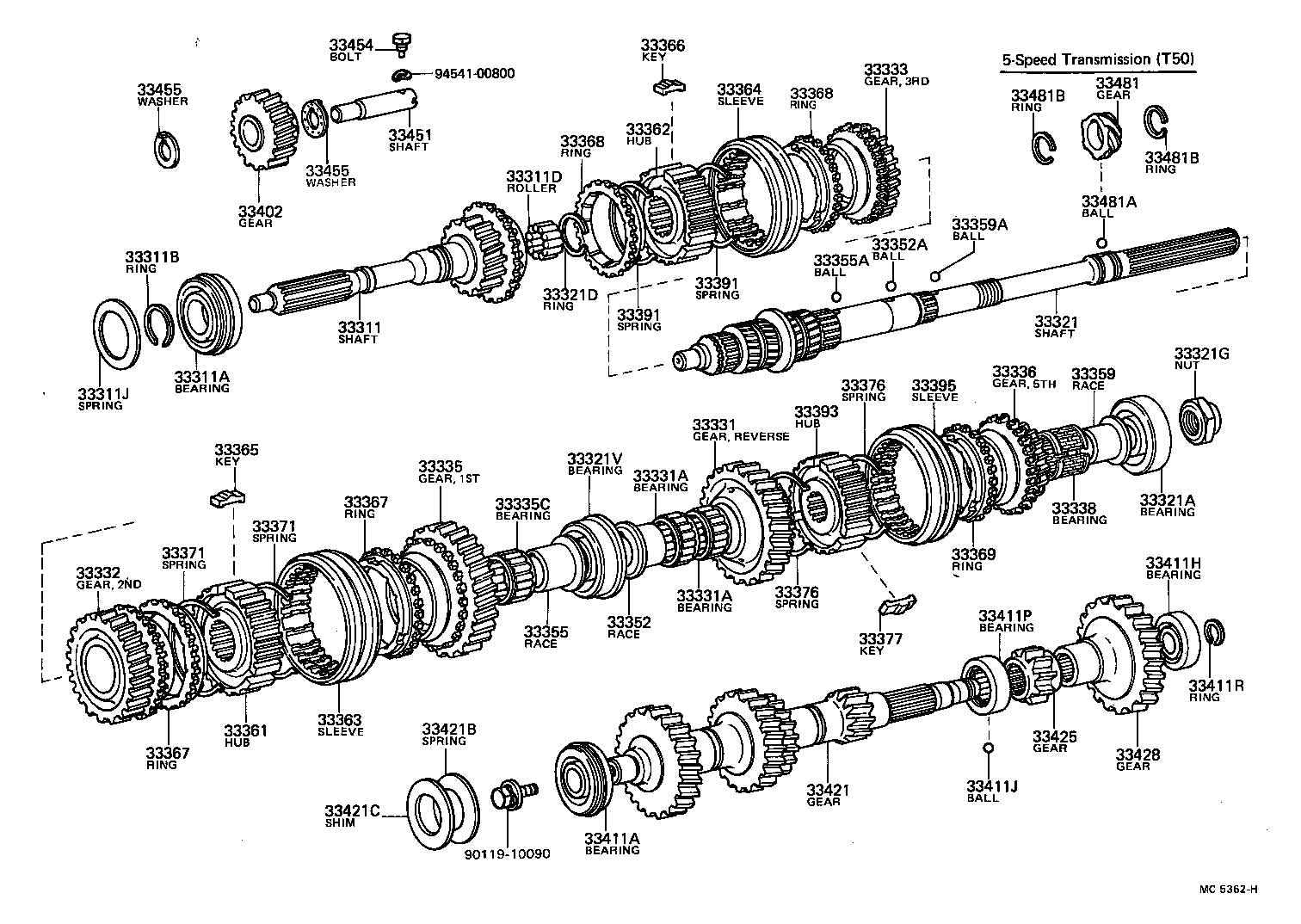

(7903-8106)TE7#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-14010 |
TE7#..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-30004 |
TE7#..MTM |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-28067 |
AE70,KE70,TE7#..MTM T=2.35-2.40 |
1 | ||
| 90520-28068 |
AE70,KE70,TE7#..MTM T=2.45-2.50 |
1 | ||
| 90520-28205 |
TE7#..MTM 厚さ=2.40−2.45,T=2.40-2.45 |
1 | ||
| 90520-28207 |
TE7#..MTM 厚さ=2.45−2.50,T=2.55-2.60 |
1 | ||
| 90520-28206 |
TE7#..MTM T=2.50-2.55 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
AE70,KE70,TE7#..MTM |
12 | ||
| 33311J - SPRING, INPUT SHAFT THRUST CORN | ||||
| 90208-41002 |
TE7#..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-14021 |
TE7# |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97113-06305 |
TE7#..5F |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30201 |
TE7#..MTM 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-30203 |
TE7#..MTM 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-30202 |
TE7#..MTM 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 90520-30204 |
TE7#..MTM 厚さ=2.15−2.20,T=2.15-2.20 |
1 | ||
| 90520-30200 |
TE7#..MTM 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-25107 |
TE7#..MTM |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90369-30041 |
TE7#..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-14011 |
TE7#..MTM N=34 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37061 |
TE7#..MTM |
2 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37061 |
TE7#..MTM |
2 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-14011 |
TE7#..MTM N=31 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-14010 |
TE7#..MTM N=27 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-14011 |
TE7#..MTM N=35 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37041 |
TE7#..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-14011 |
TE7#..5F N=21 |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-32006 |
TE7#..5F |
1 | ||
| 90364-32048 |
TE7#..5F |
1 | ||
| 33352 - RACE, REVERSE GEAR BEARING INNER | ||||
| 33344-14010 |
TE7#..MTM |
1 | ||
| 33352A - KEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
TE7#..MTM |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33345-14011 |
TE7#..MTM |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AE70,KE70,TE7#..MTM |
1 | ||
| 33359 - RACE, 5TH GEAR BEARING INNER | ||||
| 33338-14012 |
TE7#..5F |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
TE7#..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-14010 |
TE7#..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-14010 |
TE7#..MTM |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-14012 |
TE7#..MTM |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-14010 |
TE7#..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-14011 |
TE7#..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-14010 |
TE7#..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
CE70,TE7#..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
CE70,TE7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
TE7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
TE7#..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
CE70,TE7#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
CE70,TE7#..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
CE70,TE7#..MTM |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
TE7#..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
TE7#..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-14010 |
TE7#..5F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
TE7#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
TE7#..MTM |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-14010 |
TE7#..MTM |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14012 |
TE7#..MTM |
1 | ||
| 33395-14010 |
TE7#..MTM |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-14010 |
TE7#..MTM |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06304 |
TE7#..MTM |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-20069 |
TE7#..5F |
1 | ||
| 33411J - BALL, COUNTER GEAR CENTER BEARING STOPPER | ||||
| 90360-05012 |
TE7#..MTM |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-27012 |
TE7#..MTM |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-18264 |
CE70,TE7#..5F T=2.00-2.05 |
1 | ||
| 90520-18266 |
CE70,TE7#..5F 厚さ=1.60−1.65,T=1.60-1.65 |
1 | ||
| 90520-18265 |
CE70,TE7#..5F T=1.80-1.85 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-14021 |
TE7#..5F N=33,28,22,14 |
1 | ||
| 33421B - SPRING, COUNTER GEAR THRUST CORN | ||||
| 90208-31001 |
TE7#..MTM |
1 | ||
| 33421C - SHIM(FOR COUNTER GEAR THRUST CORN SPRING) | ||||
| 90564-29147 |
TE7#..MTM |
1 | ||
| 33425 - GEAR, COUNTERSHAFT REVERSE | ||||
| 33425-14010 |
TE7#..MTM N=14 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-14010 |
TE7#..5F N=35 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-14010 |
TE7#..MTM |
1 | ||
| 33454 - BOLT, SHAFT RETAINING | ||||
| 33454-12010 |
AE70,KE70,TE7#..MTM |
1 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
TE7#..MTM |
2 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
TE7#..MTM |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-14010 |
TE7#..5F N=6 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-05012 |
AE70,KE70,TE7#..MTM |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-21066 |
AE70,KE70,TE7#..MTM |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-21066 |
AE70,KE70,TE7#..MTM |
2 | ||
| Common parts | ||||
| 90119-10090 | ||||
| 94541-00800 | ||||

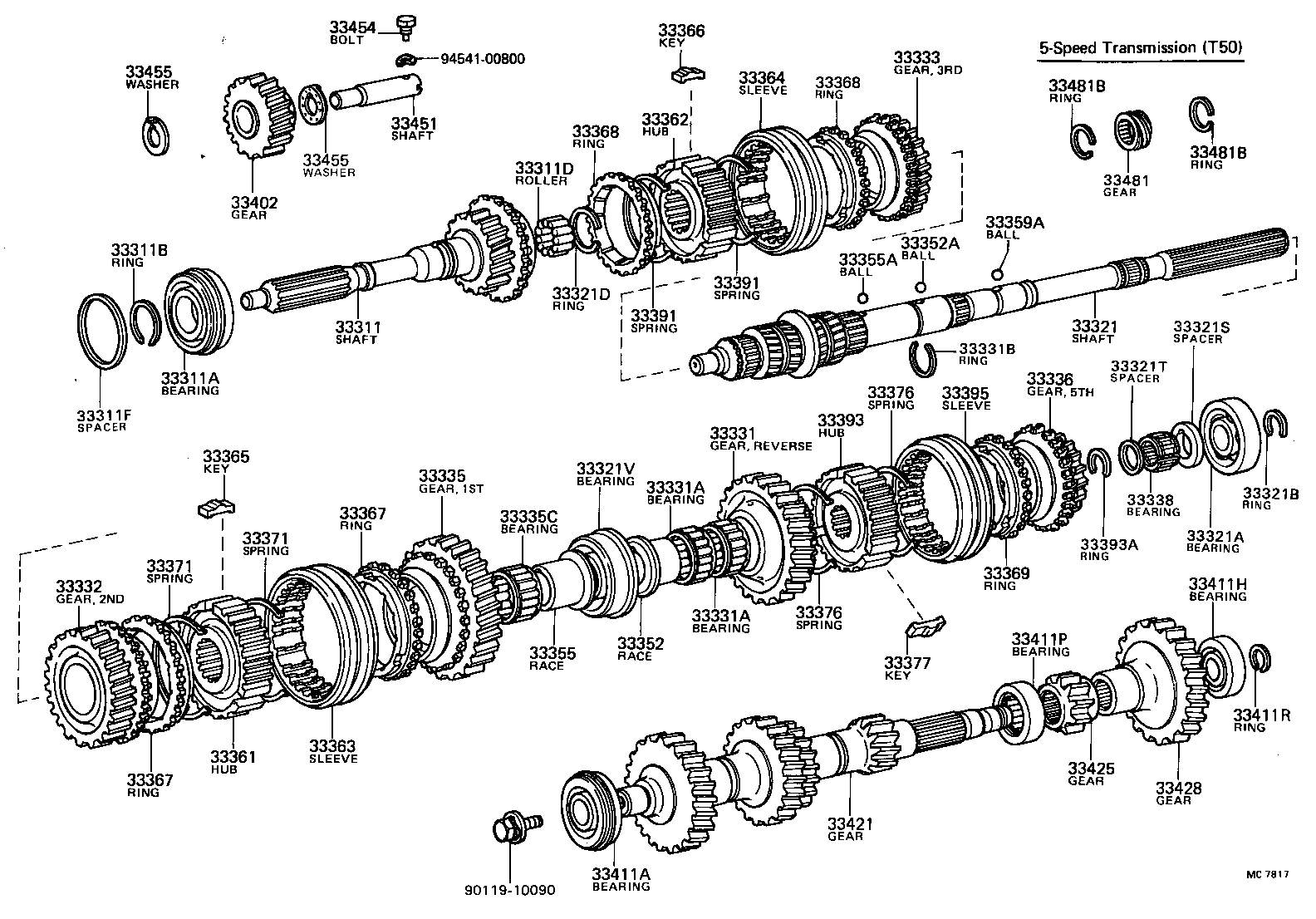

(8106- )TE7#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-14010 |
TE7#..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-30004 |
TE7#..MTM |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-28067 |
AE70,KE70,TE7#..MTM T=2.35-2.40 |
1 | ||
| 90520-28068 |
AE70,KE70,TE7#..MTM T=2.45-2.50 |
1 | ||
| 90520-28205 |
TE7#..MTM 厚さ=2.40−2.45,T=2.40-2.45 |
1 | ||
| 90520-28207 |
TE7#..MTM 厚さ=2.45−2.50,T=2.55-2.60 |
1 | ||
| 90520-28206 |
TE7#..MTM T=2.50-2.55 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06047 |
AE70,KE70,TE7#..MTM |
12 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-14021 |
TE7# |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97113-06305 |
TE7#..5F |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30201 |
TE7#..MTM 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-30203 |
TE7#..MTM 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-30202 |
TE7#..MTM 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 90520-30204 |
TE7#..MTM 厚さ=2.15−2.20,T=2.15-2.20 |
1 | ||
| 90520-30200 |
TE7#..MTM 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90369-30041 |
TE7#..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-14011 |
TE7#..MTM N=34 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37061 |
TE7#..MTM |
2 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-37061 |
TE7#..MTM |
2 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-14011 |
TE7#..MTM N=31 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-14010 |
TE7#..MTM N=27 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-14011 |
TE7#..MTM N=35 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-37041 |
TE7#..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-14011 |
TE7#..5F N=21 |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-32006 |
TE7#..5F |
1 | ||
| 90364-32048 |
TE7#..5F |
1 | ||
| 33352 - RACE, REVERSE GEAR BEARING INNER | ||||
| 33344-14010 |
TE7#..MTM |
1 | ||
| 33352A - KEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
TE7#..MTM |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33345-14011 |
TE7#..MTM |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
AE70,KE70,TE7#..MTM |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-05012 |
TE7#..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-14010 |
TE7#..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-14010 |
TE7#..MTM |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-14012 |
TE7#..MTM |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-14010 |
TE7#..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-14011 |
TE7#..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-14010 |
TE7#..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
CE70,TE7#..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
CE70,TE7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
TE7#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
TE7#..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
CE70,TE7#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
CE70,TE7#..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-14031 |
CE70,TE7#..MTM |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
TE7#..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
TE7#..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-14010 |
TE7#..5F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
TE7#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14010 |
TE7#..MTM |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-14010 |
TE7#..MTM |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-14012 |
TE7#..MTM |
1 | ||
| 33395-14010 |
TE7#..MTM |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-14010 |
TE7#..MTM |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97153-06304 |
TE7#..MTM |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-20069 |
TE7#..5F |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-27012 |
TE7#..MTM |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-18264 |
CE70,TE7#..5F T=2.00-2.05 |
1 | ||
| 90520-18266 |
CE70,TE7#..5F 厚さ=1.60−1.65,T=1.60-1.65 |
1 | ||
| 90520-18265 |
CE70,TE7#..5F T=1.80-1.85 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-14021 |
TE7#..5F N=33,28,22,14 |
1 | ||
| 33425 - GEAR, COUNTERSHAFT REVERSE | ||||
| 33425-14010 |
TE7#..MTM N=14 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-14010 |
TE7#..5F N=35 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-14010 |
TE7#..MTM |
1 | ||
| 33454 - BOLT, SHAFT RETAINING | ||||
| 33454-12010 |
AE70,KE70,TE7#..MTM |
1 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
TE7#..MTM |
2 | ||
| 33455 - WASHER, REVERSE IDLER GEAR THRUST | ||||
| 33455-14010 |
TE7#..MTM |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-14010 |
TE7#..5F N=6 |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-21066 |
AE70,KE70,TE7#..MTM |
2 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-21066 |
AE70,KE70,TE7#..MTM |
2 | ||
| Common parts | ||||
| 90119-10090 | ||||
| 94541-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
