TE70-FSKES (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)13TU

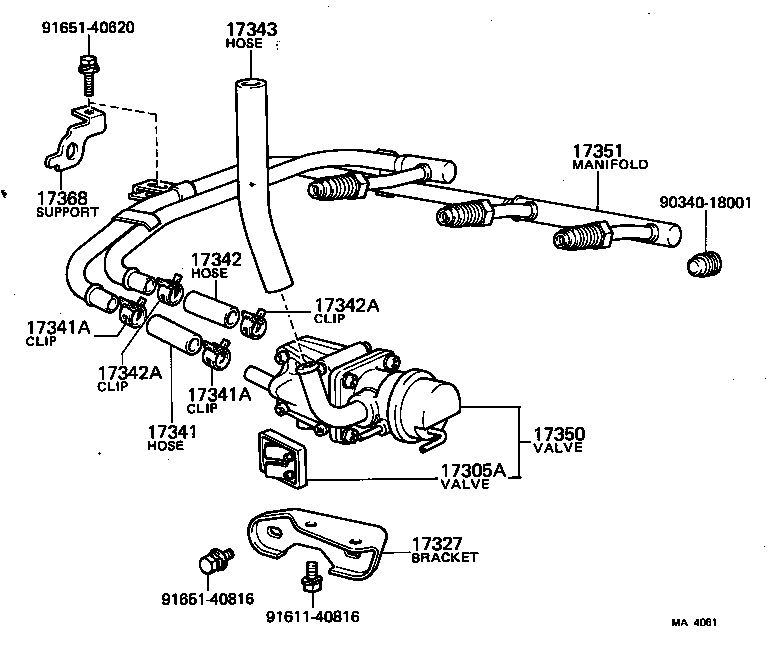

Click highlighted areas on diagram

diagram 17305A 17327 17341 17341A 17341A 17342 17342A 17342A 17343 17350 17351 17368 9034018001 9161140816 9165140620 9165140816
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-18010

13TU..TE70

 1
17327 - BRACKET, REED VALVE
17327-18010

13TU..TE70

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-27011

13TU..TE70

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-21001

13TU..TE70

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-21001

13TU..TE70

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
90445-27011

13TU..TE70

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-21001

13TU..TE70

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-21001

13TU..TE70

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
90445-31012

13TU..TE70

 1
17350 - VALVE ASSY, REED
17350-18010

13TU..TE70

 1
17368 - SUPPORT, AIR TUBE
17368-18040

13TU..TE70

 1
17368-26020

13TU..TE70

 1
Common parts
90340-18001
91611-40816
91651-40620
91651-40816
