TE70-FSHES (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)TE70..SE,ST,XL

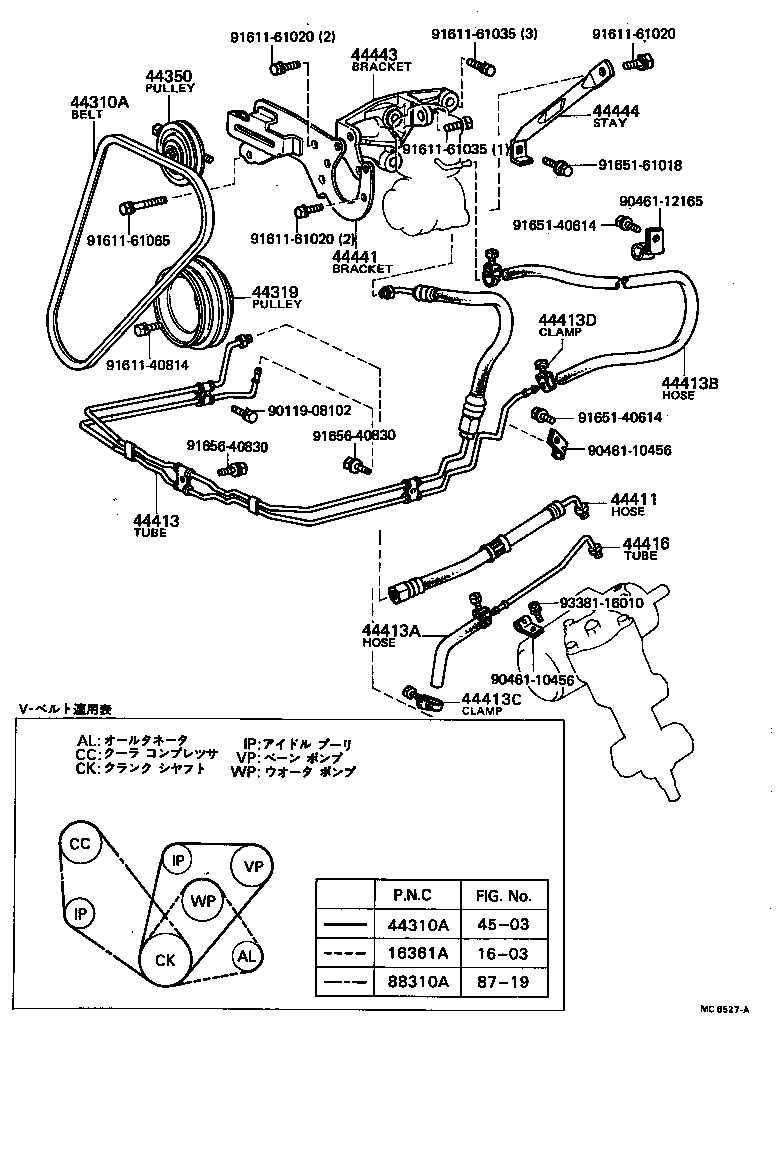

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44319 44350 44411 44413 44413A 44413B 44413C 44413D 44416 44441 44443 44444 4503 8719 88310A 9011908102 9046110456 9046110456 9046112165 9161140814 9161161020 9161161020 9161161020 9161161035 9161161035 9161161065 9165140614 9165140614 9165161018 9165640830 9165640830 9338116010
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

13TU..TE70

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01080

TE70..SE,ST,XL

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01080

TE70..SE,ST,XL

 1
44319 - PULLEY, VANE PUMP DRIVE
13477-18020

TE70..SE,ST,XL

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12020

TE70..SE,ST,XL

 1
44411 - HOSE, PRESSURE FEED
44415-12010

TE70..SE,ST,XL

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-12010

TE70..SE,ST,XL

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18059

TE70..SE,ST,XL

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18078

TE70..SE,ST,XL

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

TE70..SE,ST,XL

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

TE70..SE,ST,XL

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-12020

TE70..SE,ST,XL

 1
44441 - BRACKET, PUMP, FRONT
44441-12010

TE70..SE,ST,XL

 1
44443 - BRACKET, PUMP
44443-12010

TE70..SE,ST,XL

 1
44444 - STAY, PUMP, REAR
44444-12010

TE70..SE,ST,XL

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00950

TE7#

 1
Common parts
90119-08102
90461-10456
90461-12165
91611-40814
91611-61020
91611-61035
91611-61065
91651-40614
91651-61018
91656-40830
93381-16010
Linked diagrams
1603
4503
8719
