TE70-FSHES (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)13TU

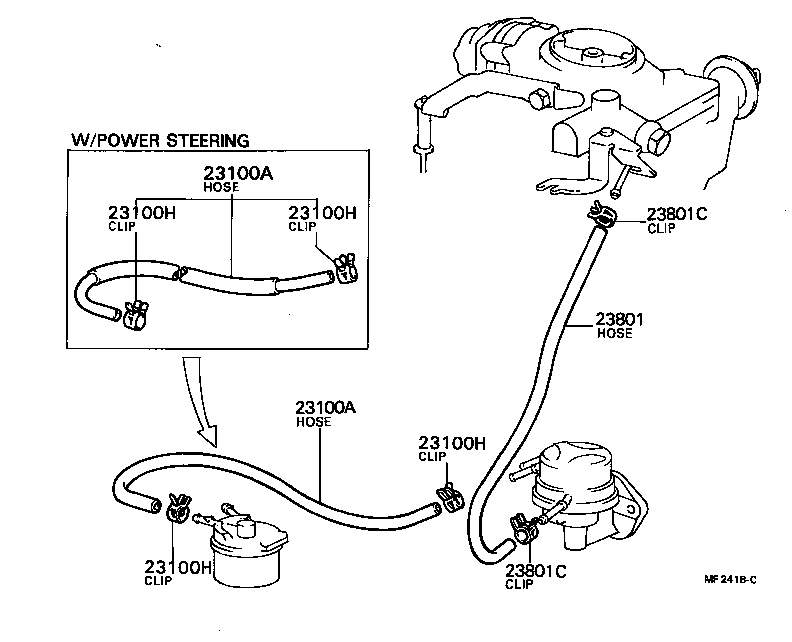

Click highlighted areas on diagram

diagram 23100A 23100A 23100H 23100H 23100H 23100H 23801 23801C 23801C
Part # Description Qty Price
23100A - HOSE, FUEL
23271-18020

13TU..TE70..SE,ST,XL

W/POWER STEERING,L=280

 1
95332-06030

13TU..TE70

*H,L=280

 1
23100A - HOSE, FUEL
23271-18020

13TU..TE70..SE,ST,XL

W/POWER STEERING,L=280

 1
95332-06030

13TU..TE70

*H,L=280

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

13TU..TE70

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

13TU..TE70

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

13TU..TE70

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

13TU..TE70

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

13TU..TE70

*H,L=300

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

13TU..TE70

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

13TU..TE70

 2
