TE70-FLMNS (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(7908-8108)LB

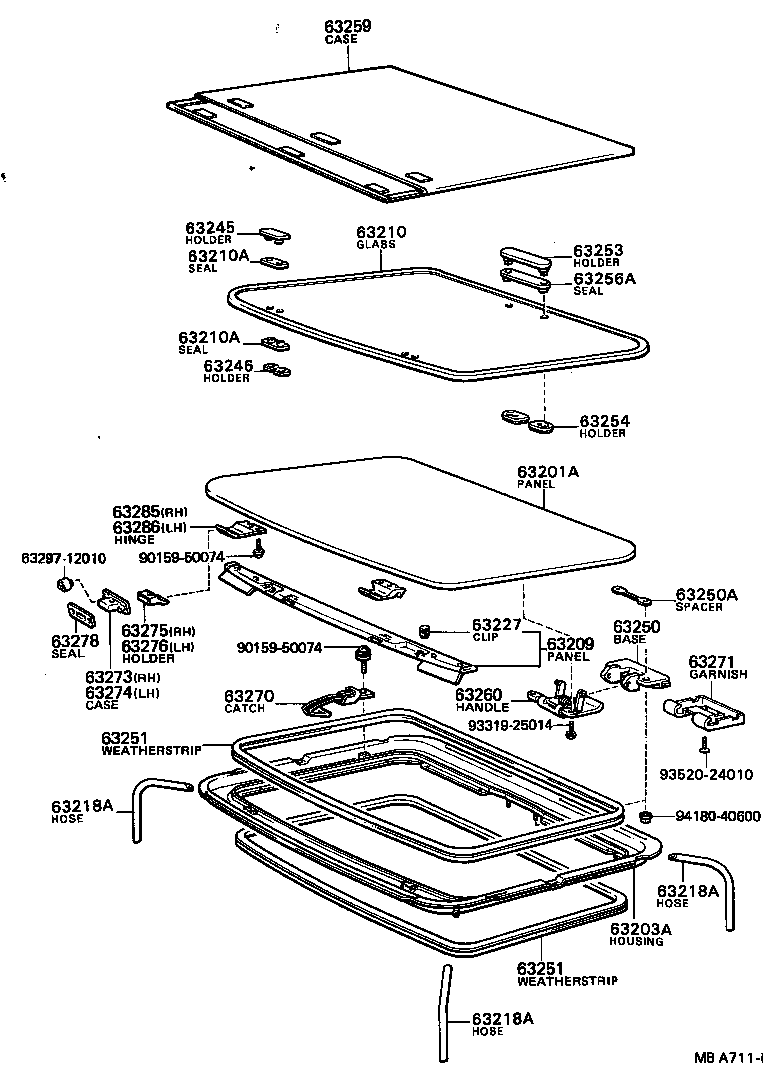

Click highlighted areas on diagram

diagram 63201A 63203A 63209 63210 63210A 63210A 63218A 63218A 63218A 63227 63245 63246 63250 63250A 63251 63251 63253 63254 63256A 63259 63260 63270 63271 63273 63274 63275 63276 63278 63285 63286 6329712010 9015950074 9015950074 9331925014 9352024010 9418040600
Part # Description Qty Price
63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63201-12030

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63201-12031

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63203-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63210 - GLASS SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63201-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63210A - SEAL, REMOVABLE ROOF GLASS, OUTER
63257-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 4
63210A - SEAL, REMOVABLE ROOF GLASS, OUTER
63257-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 4
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
90445-14051

AE70,KE70,TE7#..LB..(GT,SE,XL)

W/CTR PILLAR

 2
90445-14050

AE70,KE70,TE7#..LB..(GT,SE,XL)

W/CTR PILLAR

 2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
90445-14051

AE70,KE70,TE7#..LB..(GT,SE,XL)

W/CTR PILLAR

 2
90445-14050

AE70,KE70,TE7#..LB..(GT,SE,XL)

W/CTR PILLAR

 2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
90445-14051

AE70,KE70,TE7#..LB..(GT,SE,XL)

W/CTR PILLAR

 2
90445-14050

AE70,KE70,TE7#..LB..(GT,SE,XL)

W/CTR PILLAR

 2
63227 - CLIP, ROOF WIND DEFLECTOR PANEL
63227-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 2
63245 - HOLDER, REMOVABLE ROOF GLASS, OUTER FRONT
63245-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 2
63246 - HOLDER, REMOVABLE ROOF GLASS, INNER FRONT
63246-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 2
63250 - BASE ASSY, REMOVABLE ROOF LOCK
63250-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63250A - SPACER, REMOVABLE ROOF LOCK BASE
63277-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 2
63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF
63252-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

INNER

 1
63251-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

OUTER,W/GALASS

 1
63251-12020

AE70,KE70,TE7#..LB..(GT,SE,XL)

OUTER,W/PANEL

 1
63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF
63252-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

INNER

 1
63251-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

OUTER,W/GALASS

 1
63251-12020

AE70,KE70,TE7#..LB..(GT,SE,XL)

OUTER,W/PANEL

 1
63253 - HOLDER, REMOVABLE ROOF GLASS, OUTER REAR
63253-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63254 - HOLDER, REMOVABLE ROOF GLASS, INNER REAR
63254-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 2
63256A - SEAL, REMOVABLE ROOF GLASS
63255-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63259 - CASE, REMOVABLE ROOF
63259-12020

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63260 - HANDLE ASSY, REMOVABLE ROOF LOCK
63260-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63270 - CATCH ASSY, REMOVABLE ROOF AUXILIARY, RH
63270-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63271 - GARNISH, REMOVABLE ROOF LOCK
63271-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63273 - CASE, REMOVABLE ROOF HINGE, RH
63273-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63274 - CASE, REMOVABLE ROOF HINGE, LH
63274-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63275 - HOLDER, REMOVABLE ROOF HINGE, RH
63275-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63276 - HOLDER, REMOVABLE ROOF HINGE, LH
63276-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 1
63278 - SEAL, REMOVABLE ROOF HINGE CASE
63278-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 4
63285 - HINGE, REMOVABLE ROOF, RH
63285-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 2
63286 - HINGE, REMOVABLE ROOF, LH
63286-12010

AE70,KE70,TE7#..LB..(GT,SE,XL)

 2
Common parts
63297-12010
90159-50074
93319-25014
93520-24010
94180-40600
