TE70-FEMES (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8108)13TU

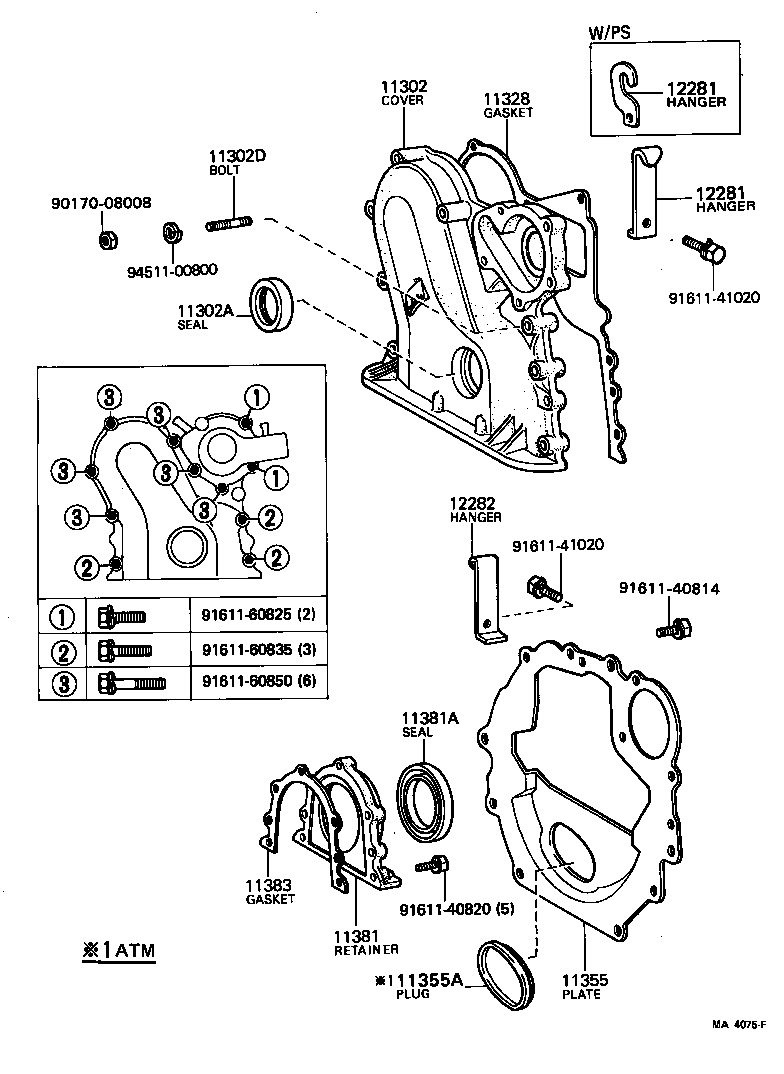

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11328 11355 11355A 11381 11381A 11383 12281 12281 12282 9017008008 9161140814 9161140820 9161141020 9161141020 9161160825 9161160835 9161160850 9451100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-28010

13TU..TE70

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

13TU..TE70

HTC 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08057

13TU..TE70

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25011

13TU..TE70

 1
11355 - PLATE, REAR END
11355-26020

13TU,2TGEU..TE7#..MTM

COLD SPEC

 1
11355-25011

13TU,2TGEU..TE7#..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

13TU,2TGEU..TE7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

13TU,2TGEU..TE7#

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

13TU,2TGEU..TE7#

 1
12281 - HANGER, ENGINE, NO.1
12281-26010

13TU..TE70

 1
12281-18010

13TU..TE70..SE,ST,XL

W/POWER STEERING

 1
12281 - HANGER, ENGINE, NO.1
12281-26010

13TU..TE70

 1
12281-18010

13TU..TE70..SE,ST,XL

W/POWER STEERING

 1
12282 - HANGER, ENGINE, NO.2
12281-26010

13TU..TE70

 1
Common parts
90170-08008
91611-40814
91611-40820
91611-41020
91611-60825
91611-60835
91611-60850
94511-00800
