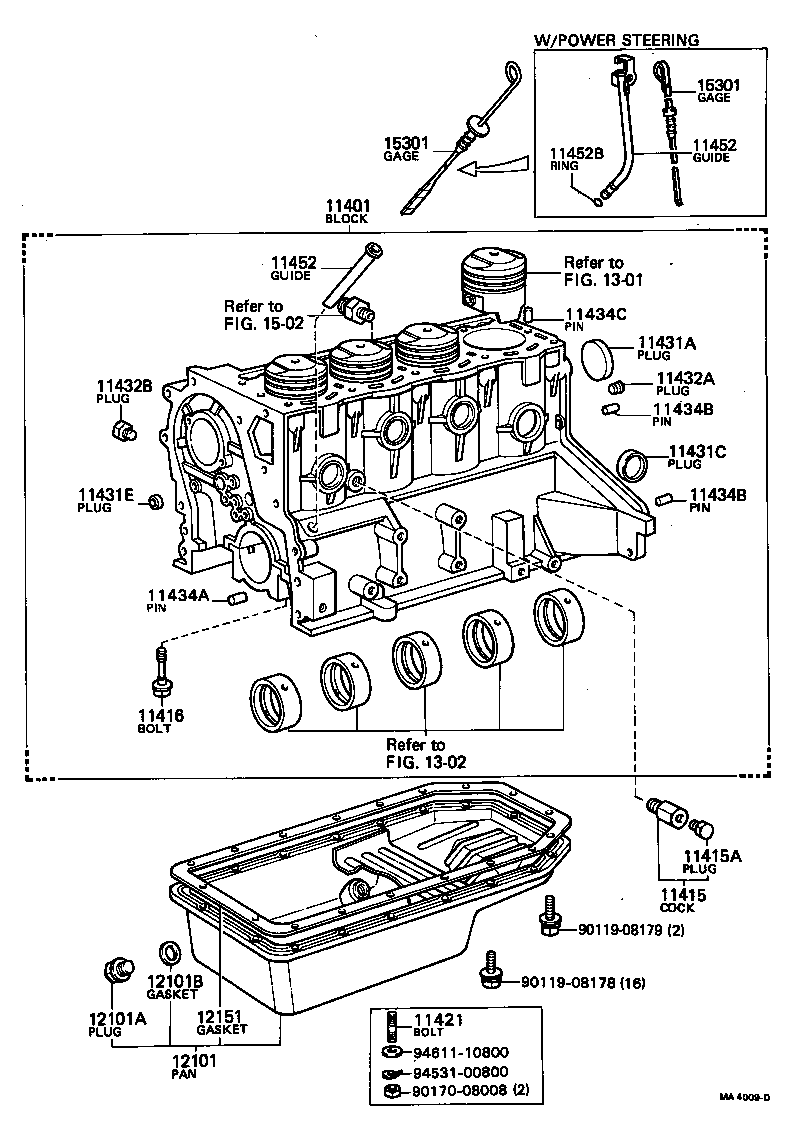

TE70-FEMES (1979)
Toyota Sprinter
(7908-8108)13TU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19085 |
13TU..TE70 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
13TU,2TGEU..TE7# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
13TU,2TGEU..TE7# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02032 |
13TU,2TGEU..TE7# |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92122-40818 |
13TU..TE70 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
13TU,2TGEU..TE7# OD=50 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
13TU,2TGEU..TE7# OD=35 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-01800 |
13TU,2TGEU..TE7# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
13TU,2TGEU..TE7# |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51025 |
13TU..TE70 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08003 |
13TU..TE70 L=23,OD=8 |
1 | ||
| 90250-08120 |
13TU,2TGEU..TE7# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
13TU,2TGEU..TE7# 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 90250-08120 |
13TU,2TGEU..TE7# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
13TU,2TGEU..TE7# 長さ=22,外径=10,L=22,OD=10 |
2 | ||
| 90250-08120 |
13TU,2TGEU..TE7# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
13TU,2TGEU..TE7# 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-18010 |
13TU..TE70 |
1 | ||
| 12142-18010 |
13TU..TE70..SE,ST,XL UPR,W/POWER STEERING |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-18010 |
13TU..TE70 |
1 | ||
| 12142-18010 |
13TU..TE70..SE,ST,XL UPR,W/POWER STEERING |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96710-01009 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-29075 |
13TU,2TGEU..TE7# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
13TU,2TGEU..TE7# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
13TU,2TGEU..TE7# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-25010 |
13TU,2TGEU..TE7# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-18020 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 15301-18010 |
13TU..TE70 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-18020 |
13TU..TE70..SE,ST,XL W/POWER STEERING |
1 | ||
| 15301-18010 |
13TU..TE70 |
1 | ||
| Common parts | ||||
| 90119-08178 | ||||
| 90119-08179 | ||||
| 90170-08008 | ||||
| 94531-00800 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
| 1502 | ||||
