TE70-FEHNS (1979)

Toyota Sprinter

Production Aug 1979 - Aug 1981
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8108)4D

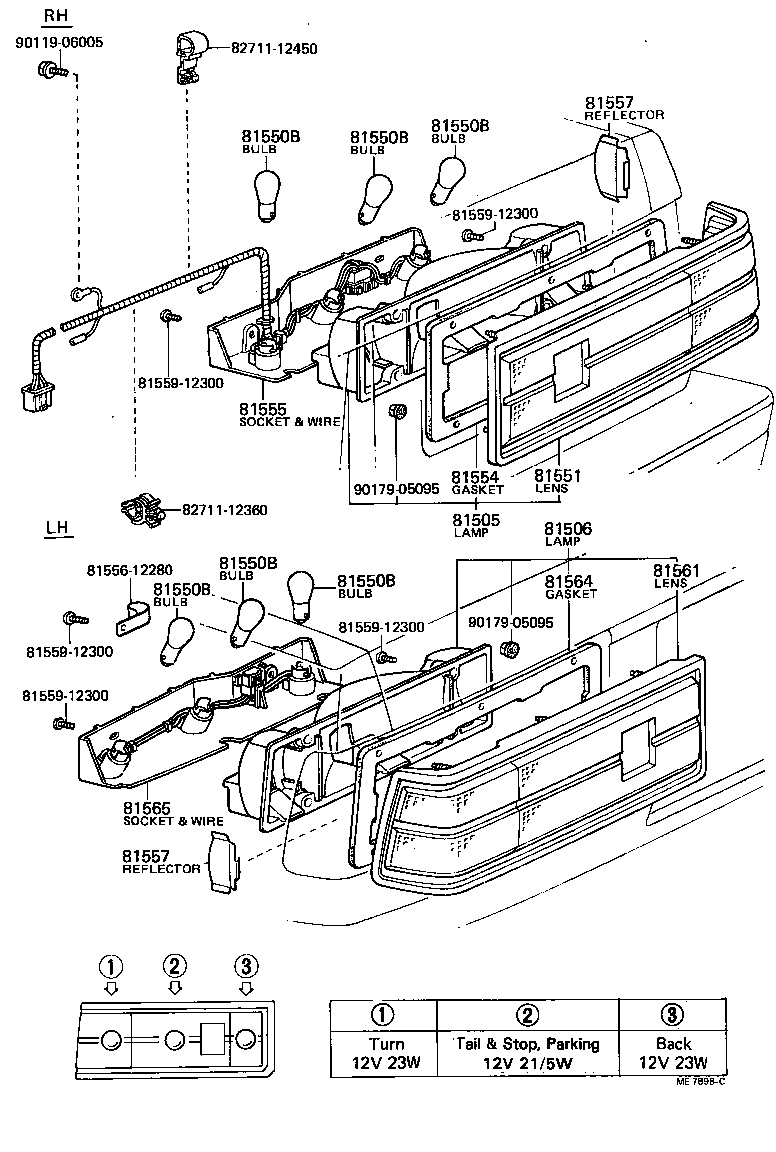

Click highlighted areas on diagram

diagram 81505 81506 81550B 81550B 81550B 81550B 81550B 81550B 81551 81554 81555 8155612280 81557 81557 8155912300 8155912300 8155912300 8155912300 8155912300 81561 81564 81565 8271112360 8271112450 9011906005 9017905095 9017905095
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-19285

AE70,TE70..4D

 1
81506 - LAMP SUB-ASSY, REAR COMBINATION, LH
81506-19155

AE70,TE70..4D

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE70,CE70,KE70,TE7#

12V 21/5W,12V 21/5W

 2
99132-11230

AE70,CE70,KE70,TE7#

12V 23W,12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-12540

KE70,TE7#..(GT,XL)..4D

 1
81551-12540

AE70,TE70..4D

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-12540

AE70,KE70,TE7#..4D

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-12541

AE70,KE70,TE7#..4D

 1
81555-12540

AE70,KE70,TE7#..4D

 1
81557 - REFLECTOR, REAR COMBINATION LAMP REFLEX
81557-12540

AE70,KE70,TE7#..HT,SED

 2
81557 - REFLECTOR, REAR COMBINATION LAMP REFLEX
81557-12540

AE70,KE70,TE7#..HT,SED

 2
81561 - LENS, REAR COMBINATION LAMP, LH
81561-12540

AE70,TE70..4D

 1
81561-12540

KE70,TE7#..(GT,XL)..4D

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-12540

AE70,KE70,TE7#..4D

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-12540

AE70,KE70,TE7#..4D

 1
Common parts
81556-12280
81559-12300
82711-12360
82711-12450
90119-06005
90179-05095
