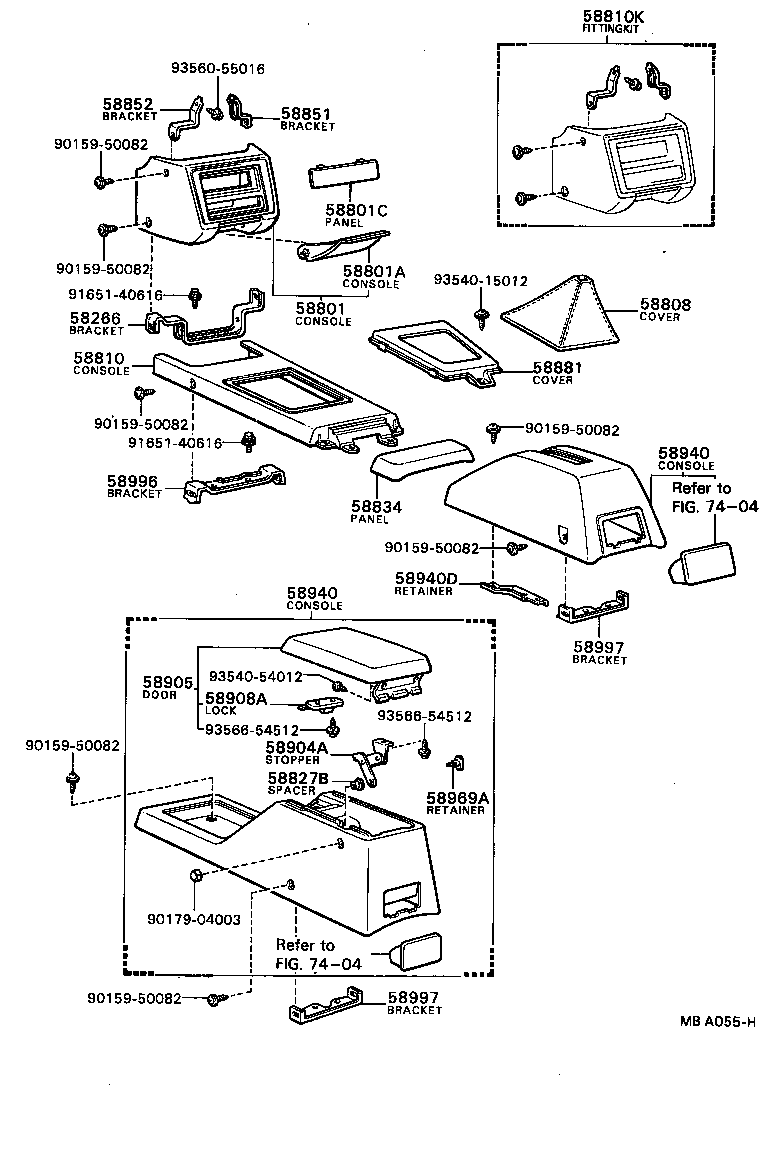

TE70-FEHNS (1979)
Toyota Sprinter
(7903-8108)4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT | ||||
| 58902-12010 |
AE70,KE70,TE7#..4D W/STEREO |
1 | ||
| 58991-12020 |
AE70,KE70,TE7#..(GT,SE,XL)..4D |
1 | ||
| 58801 - CONSOLE SUB-ASSY, UPPER | ||||
| 58801-1202001 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1202004 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 58801-1202015 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801-1202101 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1203001 |
AE70,TE70..SE..4D BLACK,BLACK,TRIM2# |
1 | ||
| 58813-1205004 |
AE70,KE70,TE7#..(GT,SE,XL)..4D W/CAR COMPO,BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1205015 |
AE70,KE70,TE7#..(GT,SE,XL)..4D W/CAR COMPO,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801-1203005 |
AE70,TE70..SE..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801-1202104 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 58813-1205001 |
AE70,KE70,TE7#..(GT,SE,XL)..4D W/CAR COMPO,BLACK,BLACK,TRIM2# |
1 | ||
| 58801-1203004 |
AE70,TE70..SE..4D BLUE,BLUE,TRIM8# |
1 | ||
| 58801-1202115 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801A - BOX, INSTRUMENT PANEL COIN(FOR UPPER CONSOLE) | ||||
| 55441-1207001 |
AE70,KE70,TE7#..4D BLACK,BLACK,TRIM2# |
1 | ||
| 55441-1207004 |
AE70,KE70,TE7#..4D BLUE,BLUE,TRIM8# |
1 | ||
| 55441-1207015 |
AE70,KE70,TE7#..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801C - PANEL, STEREO PLAYER FINISH | ||||
| 55423-12040 |
AE70,KE70,TE7#..(GT,SE,XL)..4D |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-1224001 |
KE70,TE70..ATM..(SE,XL)..4D BLACK,BLACK,TRIM2# |
1 | ||
| 58811-1224004 |
KE70,TE70..ATM..(SE,XL)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1225004 |
KE70,TE70..ATM..(SE,XL)..4D COLD SPEC,W/RR DUCT,BLUE,BLUE,TRIM8# |
1 | ||
| 58811-1225001 |
KE70,TE70..ATM..(SE,XL)..4D COLD SPEC,W/RR DUCT,BLACK,BLACK,TRIM2# |
1 | ||
| 58811-1225015 |
KE70,TE70..ATM..(SE,XL)..4D COLD SPEC,W/RR DUCT,BEIGE,BEIGE,TRIM4# |
1 | ||
| 58811-1224015 |
KE70,TE70..ATM..(SE,XL)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58810K - FITTING KIT, CONSOLE | ||||
| 04581-12020 |
AE70,KE70,TE7#..4D |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS |
1 | ||
| 58834 - PANEL, CONSOLE END | ||||
| 58923-1201015 |
AE70,KE70,TE70..ATM..(DX,XL)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58923-1201004 |
AE70,CE70,KE70,TE70..ATM..(DX,SPD,XL)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 58923-1201001 |
AE70,CE70,KE70,TE70..ATM..(DX,SPD,XL)..4D BLACK,BLACK,TRIM2# |
1 | ||
| 58851 - BRACKET, CONSOLE SUPPORT, UPPER RH | ||||
| 58857-12010 |
AE70,KE70,TE7#..4D RH |
1 | ||
| 58852 - BRACKET, CONSOLE SUPPORT, UPPER LH | ||||
| 58858-12010 |
AE70,KE70,TE7#..4D LH |
1 | ||
| 58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58904-22020 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-1202015 |
AE70,TE7#..(GT,SE)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58905-1202001 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS BLACK,BLACK,TRIM2# |
1 | ||
| 58905-1202004 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS BLUE,BLUE,TRIM8# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1201005 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1202001 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1202015 |
AE70,TE7#..(GT,SE)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1201001 |
AE70,CE70,KE70,TE70..DX,SPD,ST,XL BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1202004 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1201004 |
AE70,CE70,KE70,TE70..DX,SPD,ST,XL BLUE,BLUE,TRIM8# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-1201005 |
AE70,KE70,TE70..(DX,SPD,XL)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1202001 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1202015 |
AE70,TE7#..(GT,SE)..4D BEIGE,BEIGE,TRIM4# |
1 | ||
| 58901-1201001 |
AE70,CE70,KE70,TE70..DX,SPD,ST,XL BLACK,BLACK,TRIM2# |
1 | ||
| 58901-1202004 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS BLUE,BLUE,TRIM8# |
1 | ||
| 58901-1201004 |
AE70,CE70,KE70,TE70..DX,SPD,ST,XL BLUE,BLUE,TRIM8# |
1 | ||
| 58940D - RETAINER, PARKING BRAKE HOLE COVER | ||||
| 58943-12020 |
AE70,CE70,KE70,TE70..DX,SPD,ST,XL |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS |
1 | ||
| 58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12010 |
TE70..4D;AE70,KE70..4F..(SE,XL)..4D;AE70,KE70..(2FC,3FC,5F)..4D |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12020 |
AE70,CE70,KE70,TE70..DX,SPD,ST,XL |
1 | ||
| 58997-12010 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12020 |
AE70,CE70,KE70,TE70..DX,SPD,ST,XL |
1 | ||
| 58997-12010 |
AE70,CE70,KE70,TE7#..GT,SE,SR,SX,TRR,TRS |
1 | ||
| Common parts | ||||
| 90159-50082 | ||||
| 90179-04003 | ||||
| 91651-40616 | ||||
| 93540-15012 | ||||
| 93540-54012 | ||||
| 93560-55016 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
